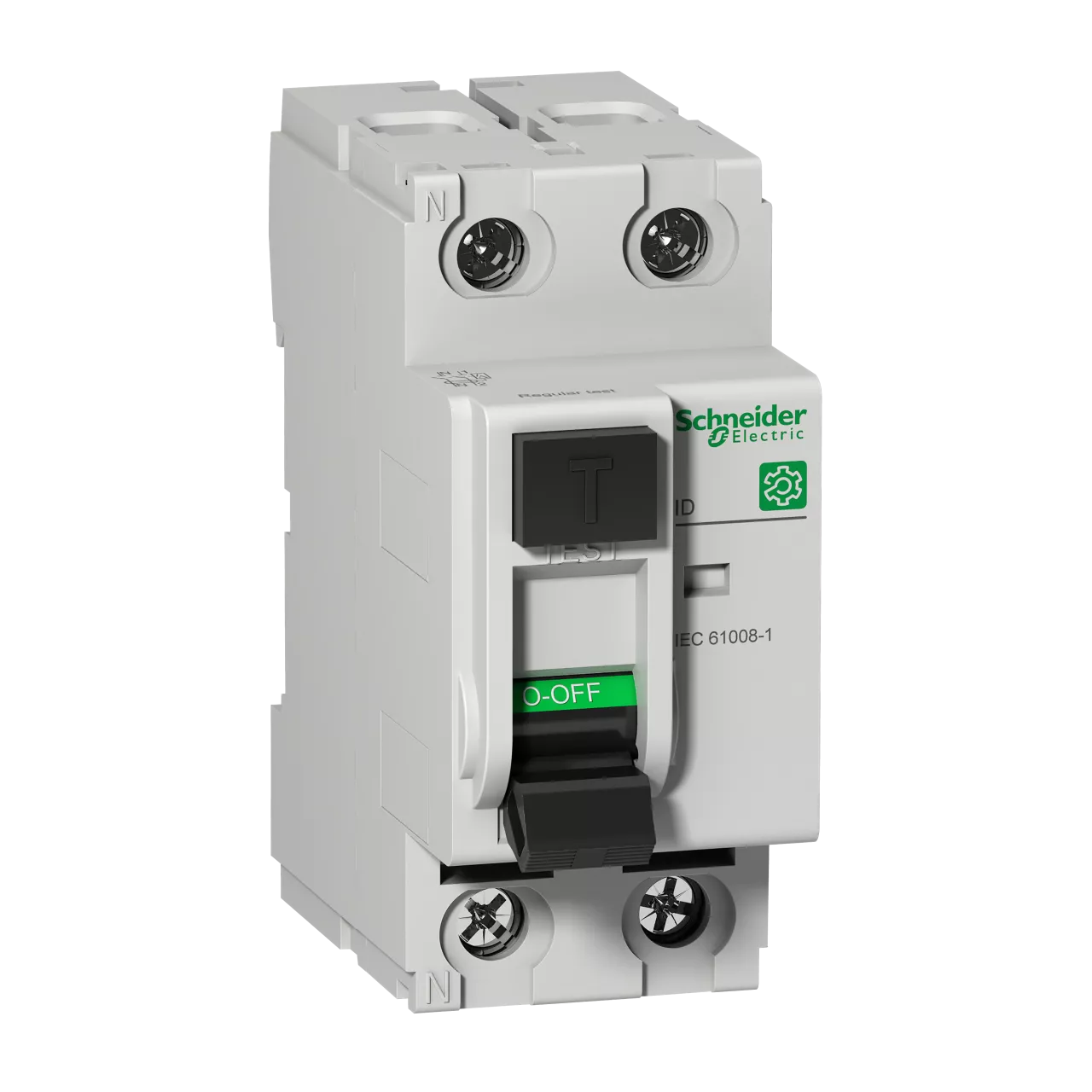

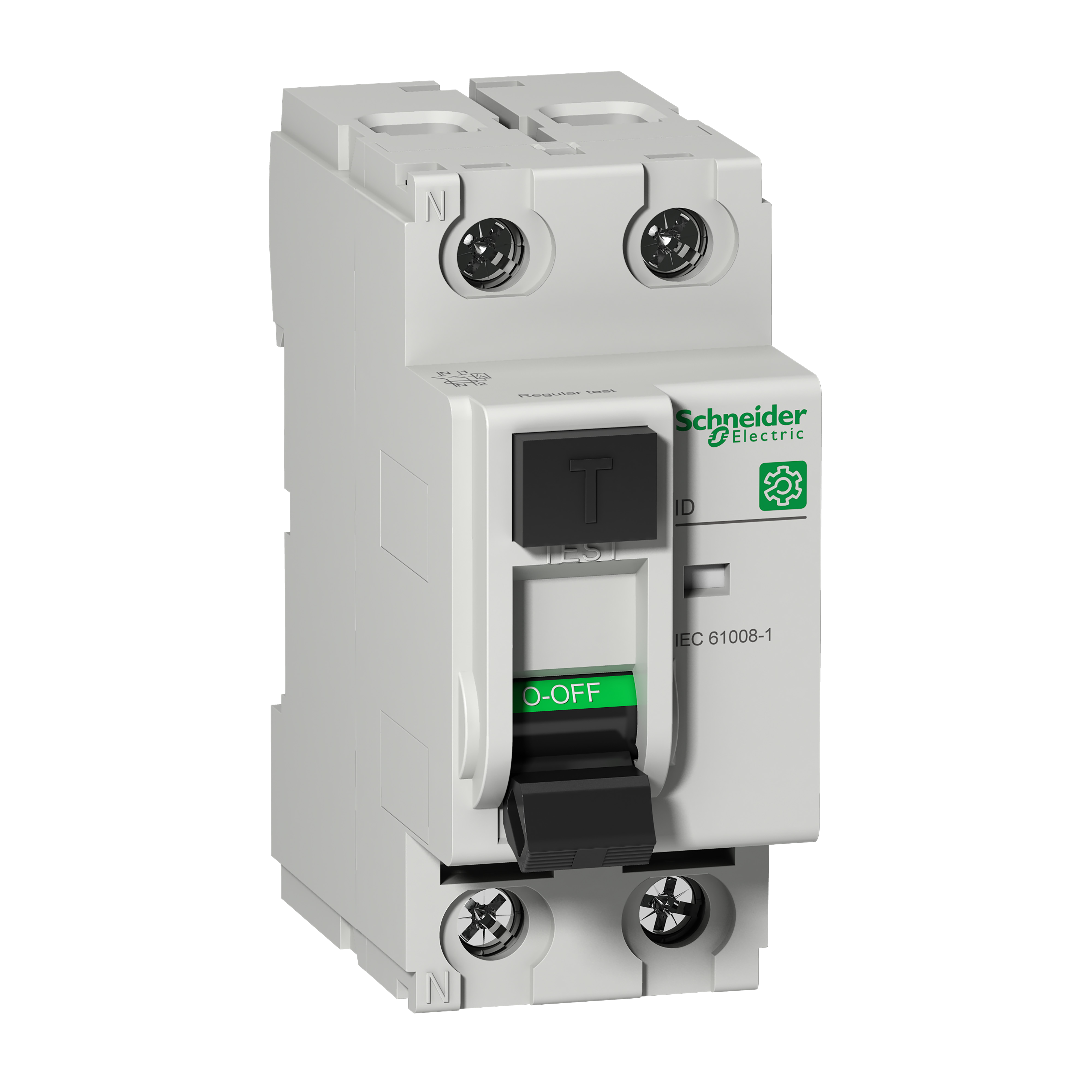

Wyłącznik różnicowoprądowy Multi9 - 2P - 40A - 30mA - typ AC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | M9R11240 |
GTIN(EAN) | 3606480578335 |
Price unit | piece |
Catalog price | 354,24 zł (288,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 205 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Short-time delayed tripping: | no |
Built-in depth: | 44 mm |
Selective protection: | no |
Connectable conductor cross section solid-core: | 1 - 35 mm² |
Explosion-proof: | no |
Leakage current type: | AC |
Additional equipment possible: | no |
Voltage type: | AC |
Surge current capacity: | 0.25 kA |
Degree of protection (IP): | IP20 |
Number of poles: | 2 |
Rated impulse withstand voltage Uimp: | 6 kV |
Width in number of modular spacings: | 2 |
Rated fault current: | 0.03 A |
Frequency: | 50 Hz |
Mounting method: | DIN rail |
Ambient temperature during operating: | -5 - 40 °C |
Rated current: | 40 A |
Rated voltage: | 240 V |
Rated insulation voltage Ui: | 440 V |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Pollution degree: | 3 |
With interlocking device: | no |
