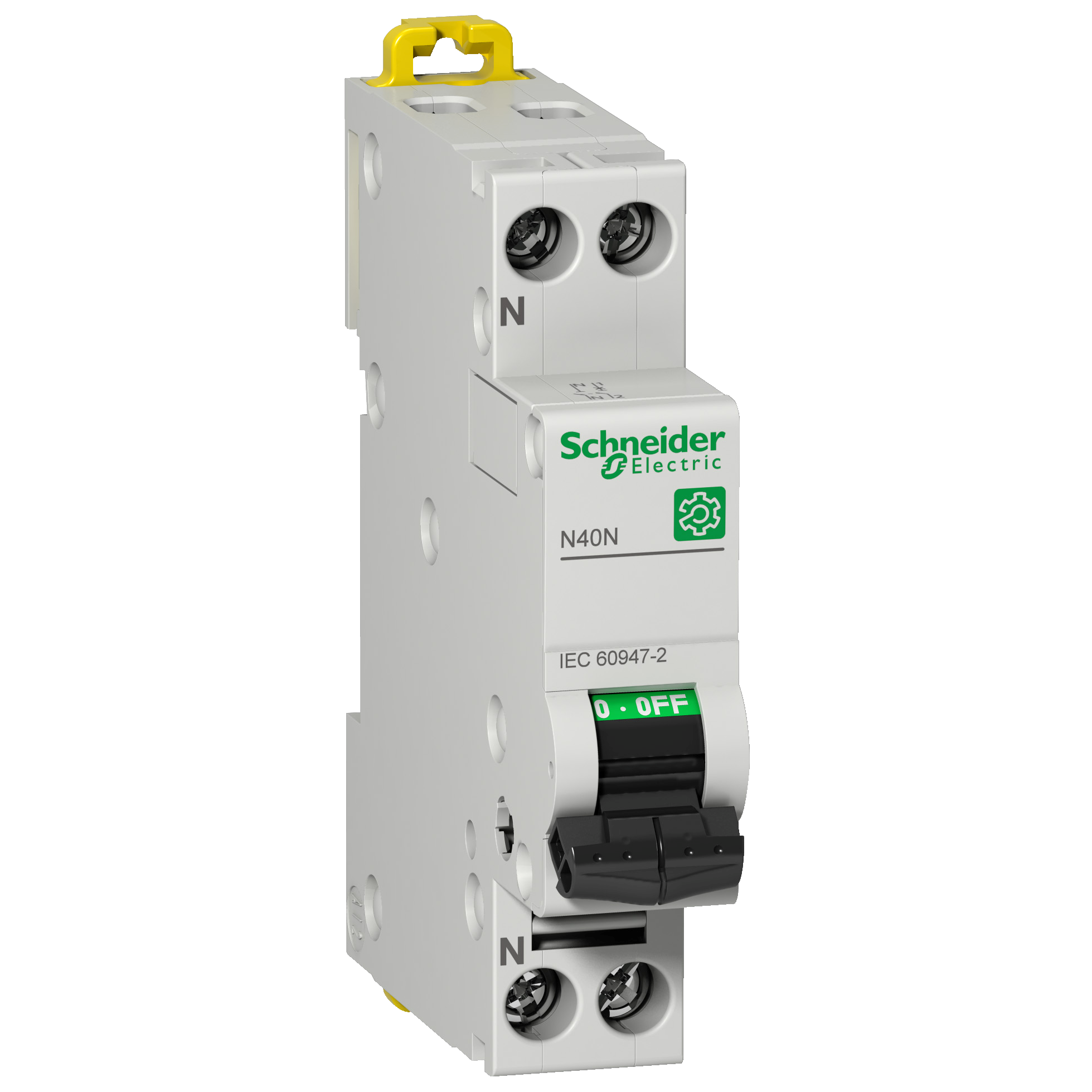

Wyłącznik nadprądowy Multi9 - N40N - 1P + N - 10 A - kat. C - 240 V - 10 kA
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | M9P22610 |
| GTIN(EAN) | 3606480572265 |
| Price unit | piece |
| Catalog price | 184,50 zł (150,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 117 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Flush-mounted installation: | no |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Width in number of modular spacings: | 1 |
| Release characteristic: | C |
| Ambient temperature during operating: | -25 - 70 °C |
| Voltage type: | AC |
| Connectable conductor cross section multi-wired: | 0.33 - 10 mm² |
| Built-in depth: | 44 mm |
| Frequency: | 50 - 60 Hz |
| Number of protected poles: | 1 |
| Rated insulation voltage Ui: | 500 V |
| Number of poles (total): | 2 |
| Pollution degree: | 3 |
| Degree of protection (IP): | IP20 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 10 kA |
| Rated voltage: | 240 V |
| Additional equipment possible: | yes |
| Explosion-proof: | no |
| Over voltage category: | 4 |
| Rated current: | 10 A |
| Current limiting class: | 3 |
| Connectable conductor cross section solid-core: | 0.75 - 16 mm² |
| Concurrently switching neutral conductor: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:50 |
| Files to download: | |
| External links: |
