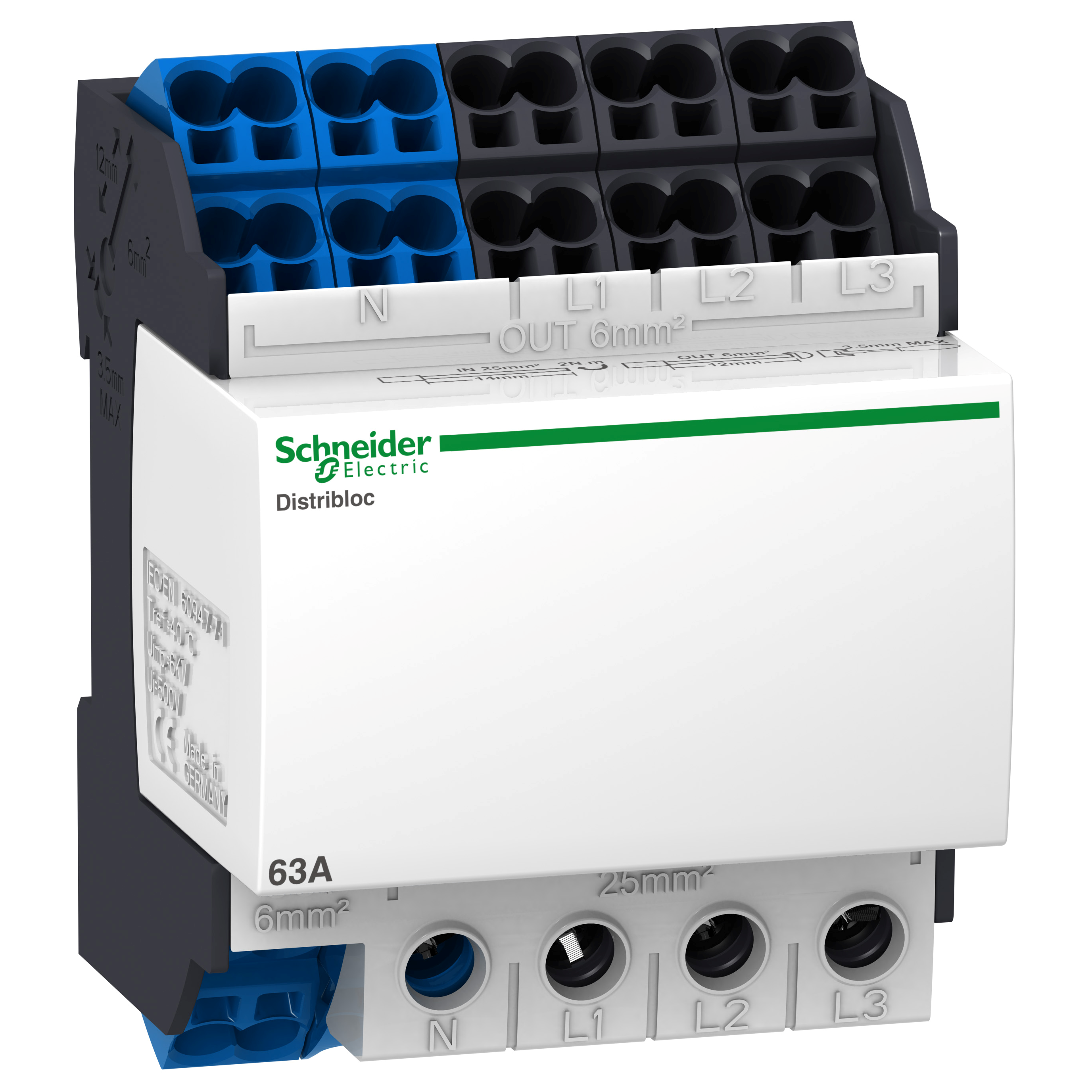

Blok dystytrybucyjny Linergy DX 63A 4P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LVS04041 |
| GTIN(EAN) | 3606482164574 |
| Price unit | piece |
| Catalog price | 381,30 zł (310,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 312 g |
| ETIM class: | Main line branch terminal |
| Suitable for extra fine-strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | yes |
| Suitable for fine strand conductors: | yes |
| Number of inputs: | 4 |
| Number of outputs: | 12 |
| Contact safe: | yes |
| Nominal current: | 63 A |
| Mounting method: | DIN rail |
| Connection type: | Screw-/spring clamp connection |
| Number of poles: | 4 |
| Height: | 96.5 mm |
| Suitable for stranded conductors: | yes |
| Depth: | 62 mm |
| Suitable for solid conductors: | yes |
| Width: | 72 mm |
| Conductor cross section, output: | 2.5 - 6 mm² |
| Conductor cross section, input: | 16 - 25 mm² |
| Suitable for extra fine-strand conductors without cable end sleeve: | yes |
