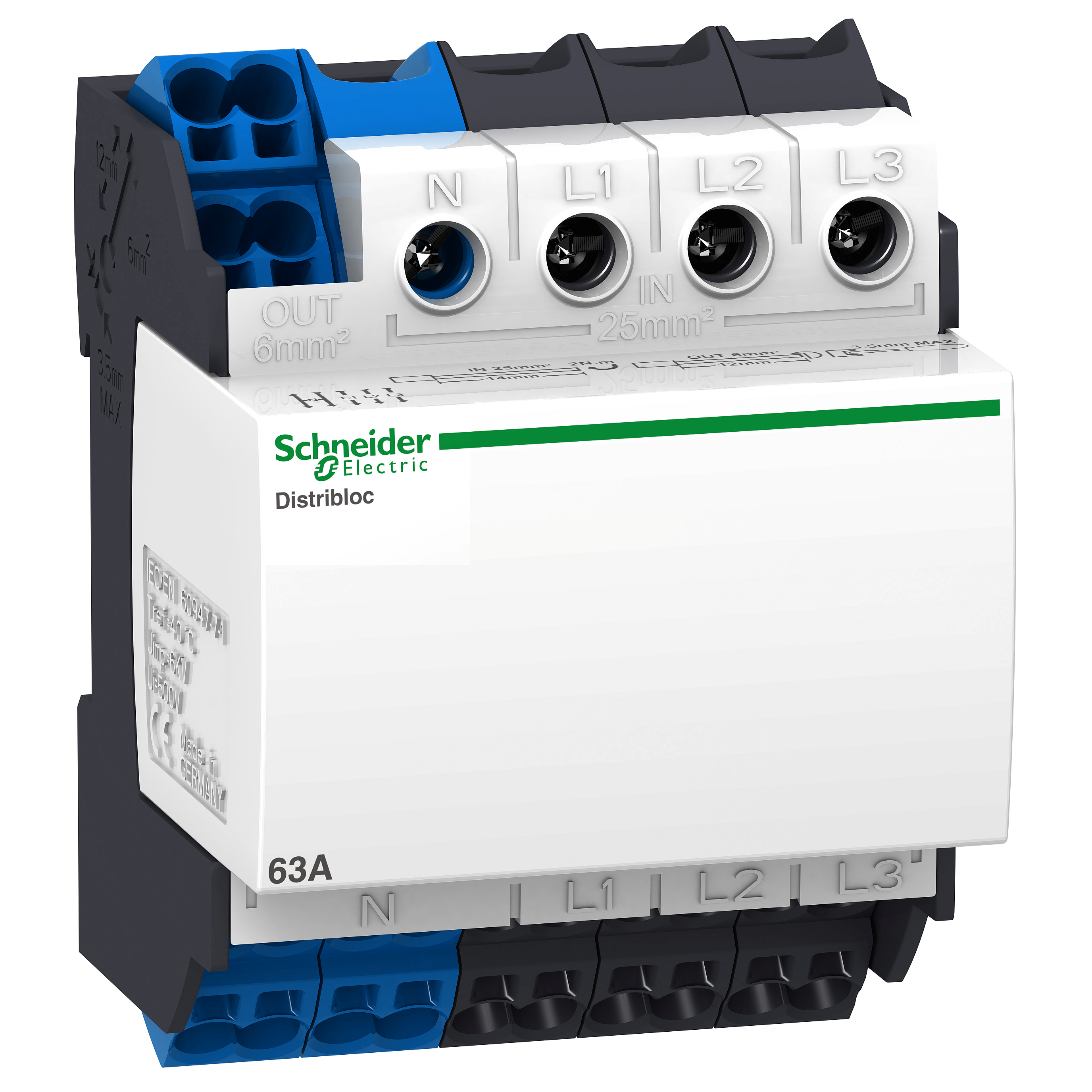

Blok dystytrybucyjny Linergy DX 63A 3P
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LVS04040 |
GTIN(EAN) | 3606482164567 |
Price unit | piece |
Catalog price | 355,47 zł (289,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 328 g |
ETIM class: | Main line branch terminal |
Suitable for extra fine-strand conductors: | yes |
Suitable for fine strand conductors without cable end sleeve: | yes |
Suitable for fine strand conductors: | yes |
Number of inputs: | 4 |
Number of outputs: | 12 |
Contact safe: | yes |
Nominal current: | 63 A |
Mounting method: | DIN rail |
Connection type: | Screw-/spring clamp connection |
Number of poles: | 4 |
Height: | 96.5 mm |
Suitable for stranded conductors: | yes |
Depth: | 62 mm |
Suitable for solid conductors: | yes |
Width: | 72 mm |
Conductor cross section, output: | 2.5 - 6 mm² |
Conductor cross section, input: | 16 - 25 mm² |
Suitable for extra fine-strand conductors without cable end sleeve: | yes |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-01 00:03:30 |
Files to download: | |
External links: |
