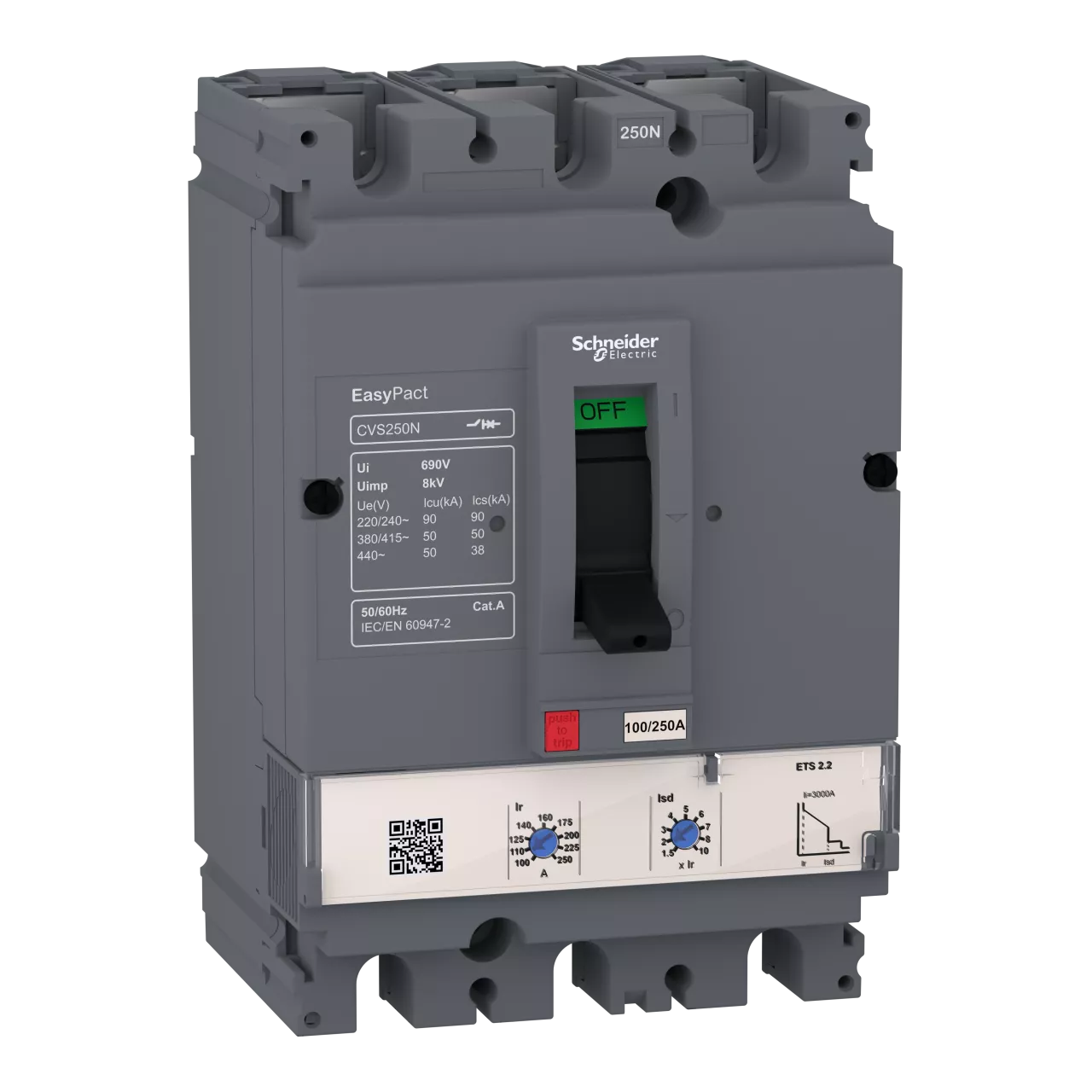

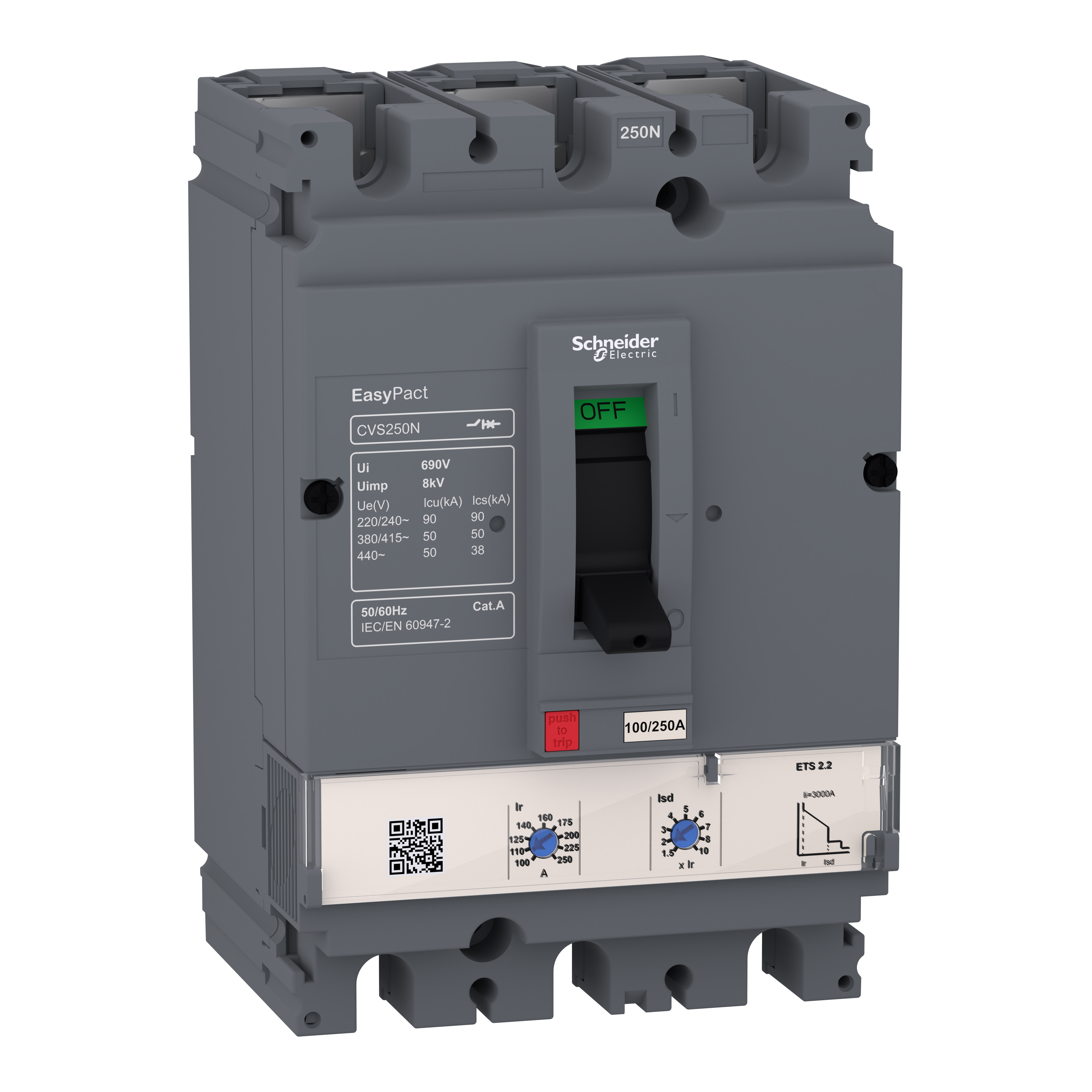

Wyłącznik 50 kA, Compact CVS, wyzwalacz ETS 2.2, 160A, 3P 3d
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LV516507 |
| GTIN(EAN) | 3606482140905 |
| Price unit | piece |
| Catalog price | 3 062,70 zł (2 490,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłączniki z serii Compact EasyPact CVS to aparaty zachowujące wysokie parametry przy atrakcyjnej cenie. Są one optymalnym wyborem do zastosowania w małych i średnich budynkach. Zdolność wyłączania LV516507 (Icu) wynosi 50kA przy 415VAC 50/60Hz. Napięcie robocze wynosi 440VAC 50/60Hz. Wyłącznik posiada elektroniczny moduł wyzwalający ETS 2.2. 3 biegunowa wersja (105mm x 161mm x 86mm) jest wyposażona w wiele opcjonalnych funkcji i akcesoriów. EasyPact CVS100B jest zgodny z międzynarodowymi normami (IEC 60947, EN 60947, CB).
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 108 |
| Gross weight: | 2,04 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Integrated earth fault protection: | no |
| Suitable for DIN rail (top hat rail) mounting: | no |
| With integrated under voltage release: | yes |
| Degree of protection (IP): | IP40 |
| Number of poles: | 3 |
| Rated voltage: | 415 - 415 V |
| DIN rail (top hat rail) mounting optional: | no |
| Complete device with protection unit: | yes |
| With switched-off indicator: | yes |
| Motor drive integrated: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 50 kA |
| Type of control element: | Toggle |
| Rated permanent current Iu: | 160 A |
| Adjustment range short-term delayed short-circuit release: | 0.02 - 0.02 A |
| Motor drive optional: | no |
| Position of connection for main current circuit: | Front side |
