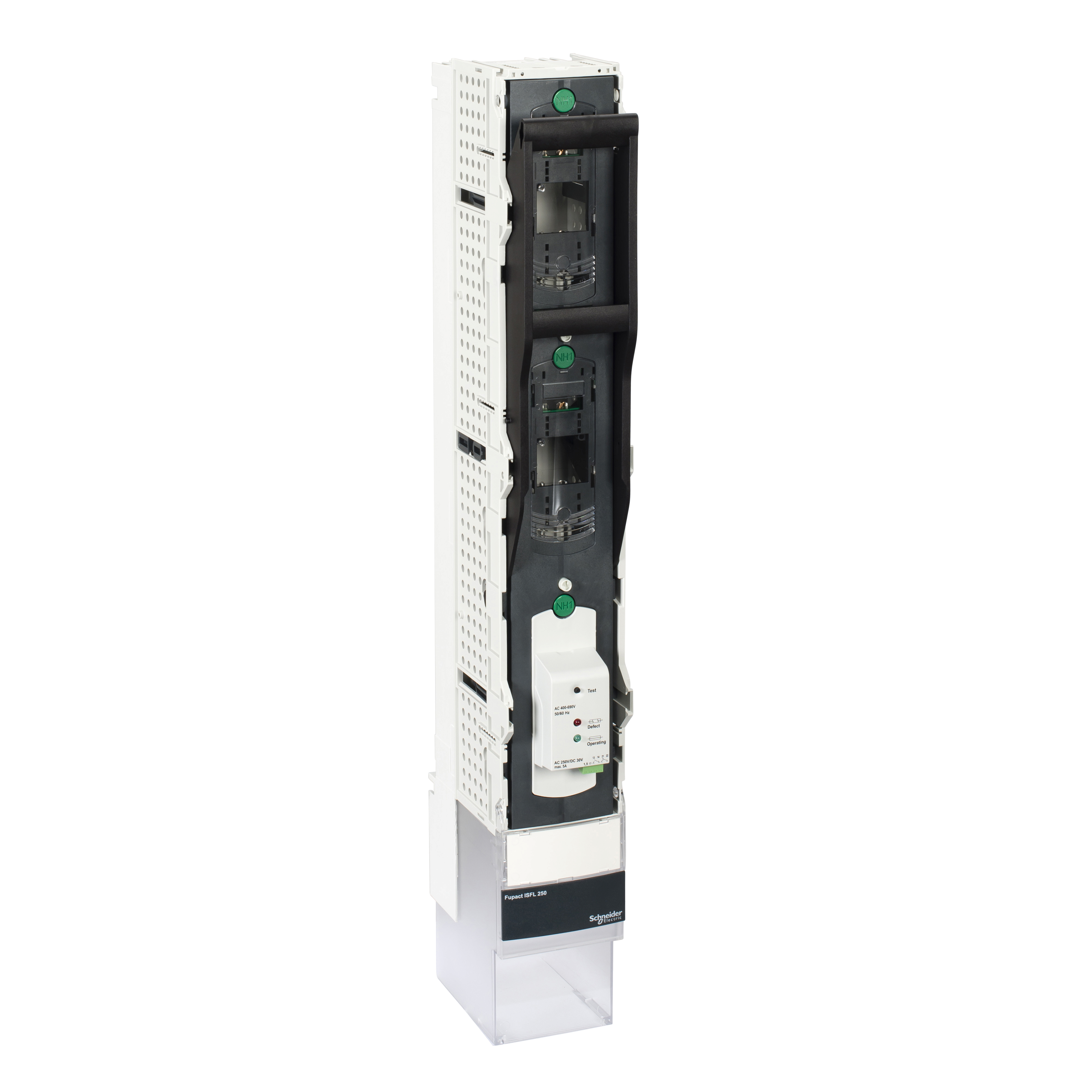

Rozłącznik listwowy, FuPacT ISFL250, z sygnalizacją, 3P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LV480863 |
| GTIN(EAN) | 3606480341212 |
| Price unit | piece |
| Catalog price | 3 617,28 zł (2 940,88 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,203 kg |
| ETIM class: | Fuse switch disconnector |
| Rated short-time withstand current lcw: | 15 kA |
| Equipped with connectors: | yes |
| Version as emergency stop installation: | no |
| Cable entry: | Other |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | yes |
| Suitable for busbar mounting: | yes |
| Position control element: | Front side |
| Version as main switch: | yes |
| Max. rated operation voltage Ue AC: | 690 V |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP20 |
| Motor drive integrated: | no |
| Suitable for front mounting: | yes |
| Conditioned rated short-circuit current Iq: | 120 kA |
| Type of control element: | Other |
| Rated permanent current Iu: | 250 A |
| With error protection: | yes |
| Motor drive optional: | no |
| Suitable for floor mounting: | no |
| Suitable for fuses: | NH1 |
