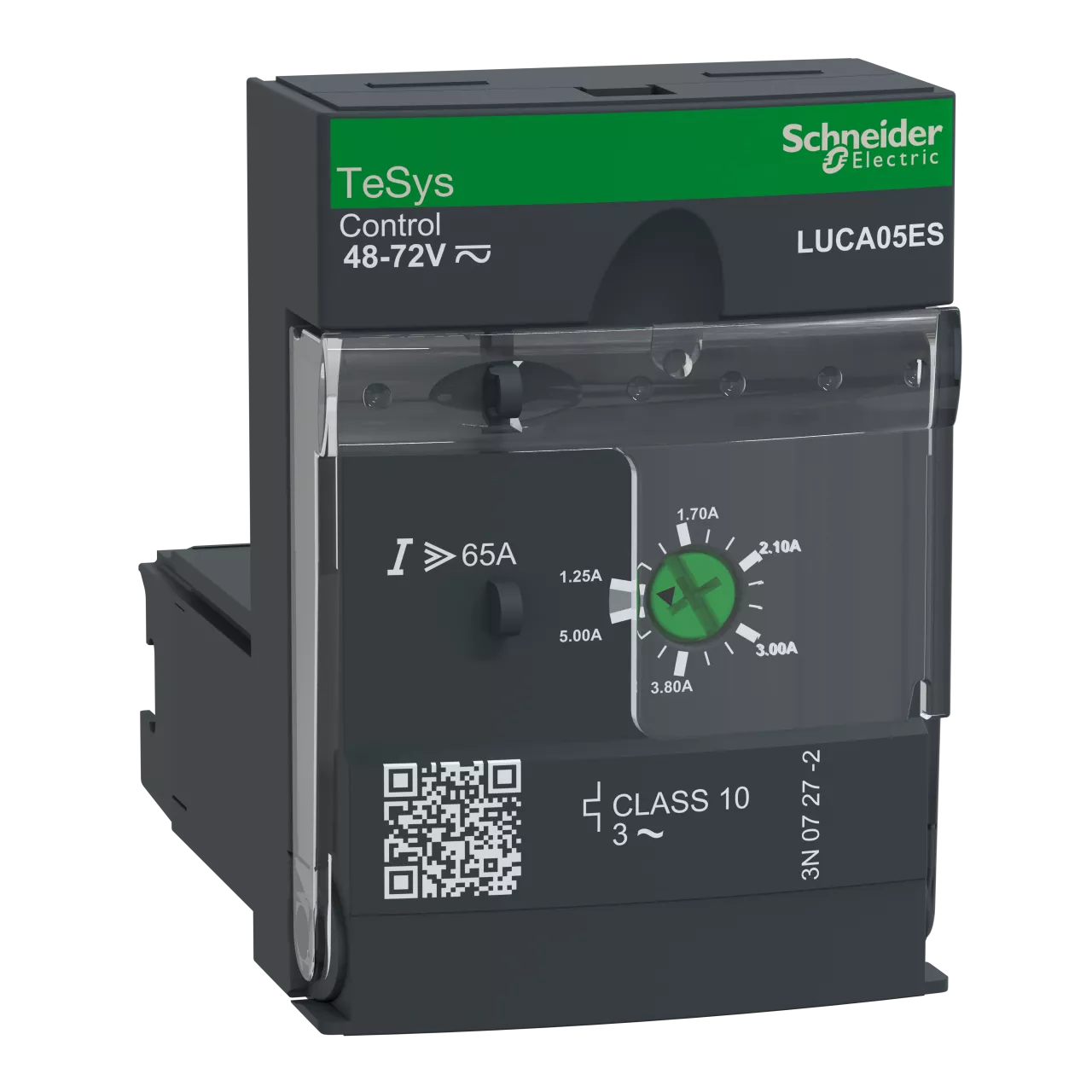

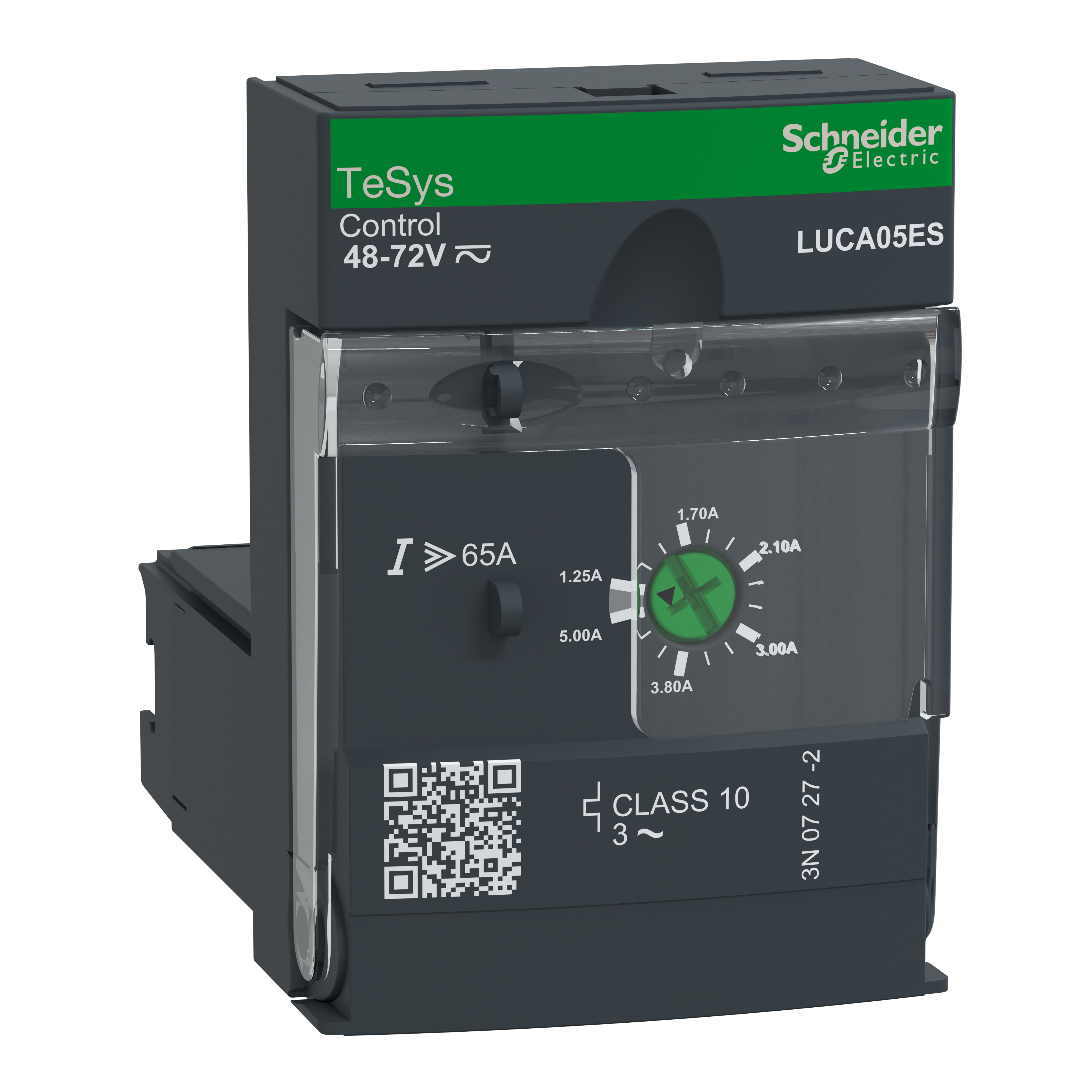

Moduł sterujący podstawowy klasa 10 1,25-5A 48/72V DC/AC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LUCA05ES |
| GTIN(EAN) | 3389110363968 |
| Price unit | piece |
| Catalog price | 1 115,54 zł (906,94 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 116 g |
| ETIM class: | Trip block for power circuit-breaker |
| Number of poles: | 3 |
| Short-circuit release function: | Undelayed |
| Overload release current setting: | 1.25 - 5 A |
| Rated permanent current Iu: | 5 A |
| With ground fault protection function: | yes |
| Type of motor protection: | Thermal/magnetic release |
| Rated control supply voltage AC 50 Hz: | 48 - 48 V |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Initial value of the undelayed short-circuit release - setting range: | 65 A |
| Rated control supply voltage DC: | 48 - 72 V |
| Voltage type for actuating: | AC/DC |
| End value adjustment range undelayed short-circuit release: | 65 A |
