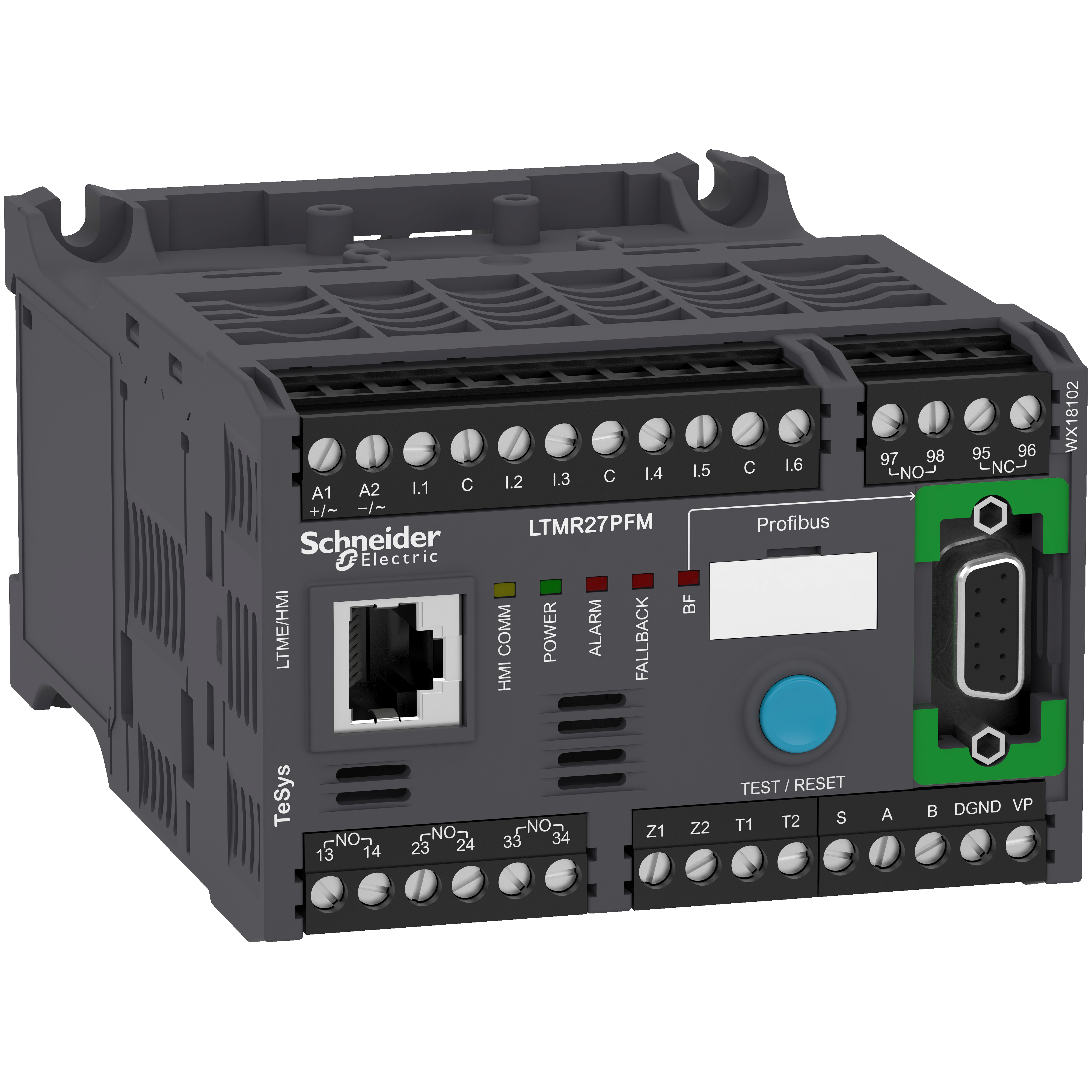

Przekaźnik TeSys T 27A 100/240VAC Profibus DP
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LTMR27PFM |
| GTIN(EAN) | 3389119404839 |
| Price unit | piece |
| Catalog price | 9 010,07 zł (7 325,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 525 g |
| ETIM class: | Motor management device |
| Number of analogue inputs: | 0 |
| Number of analogue outputs: | 0 |
| Type of connection system: | Screw connection |
| Voltage detection module: | no |
| Degree of protection (IP): | IP20 |
| Number of outputs, with contact: | 5 |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Input for thermistor connection: | yes |
| Input for earth fault detection: | yes |
| Input for analogue temperature sensor: | yes |
| Rated voltage Ue at AC 60 Hz: | 93.5 - 264 V |
| Rated operation current Ie: | 1.35 - 27 A |
| Number of electronic outputs: | 0 |
| Rated voltage Ue at AC 50 Hz: | 93.5 - 264 V |
| Current detection module: | yes |
| Type of interface: | PROFIBUS |
| Rated operating frequency: | 50 - 60 Hz |
| Voltage type for actuating: | AC |
| Rated control supply voltage AC 50 Hz: | 100 - 240 V |
| Rated control supply voltage AC 60 Hz: | 100 - 240 V |
