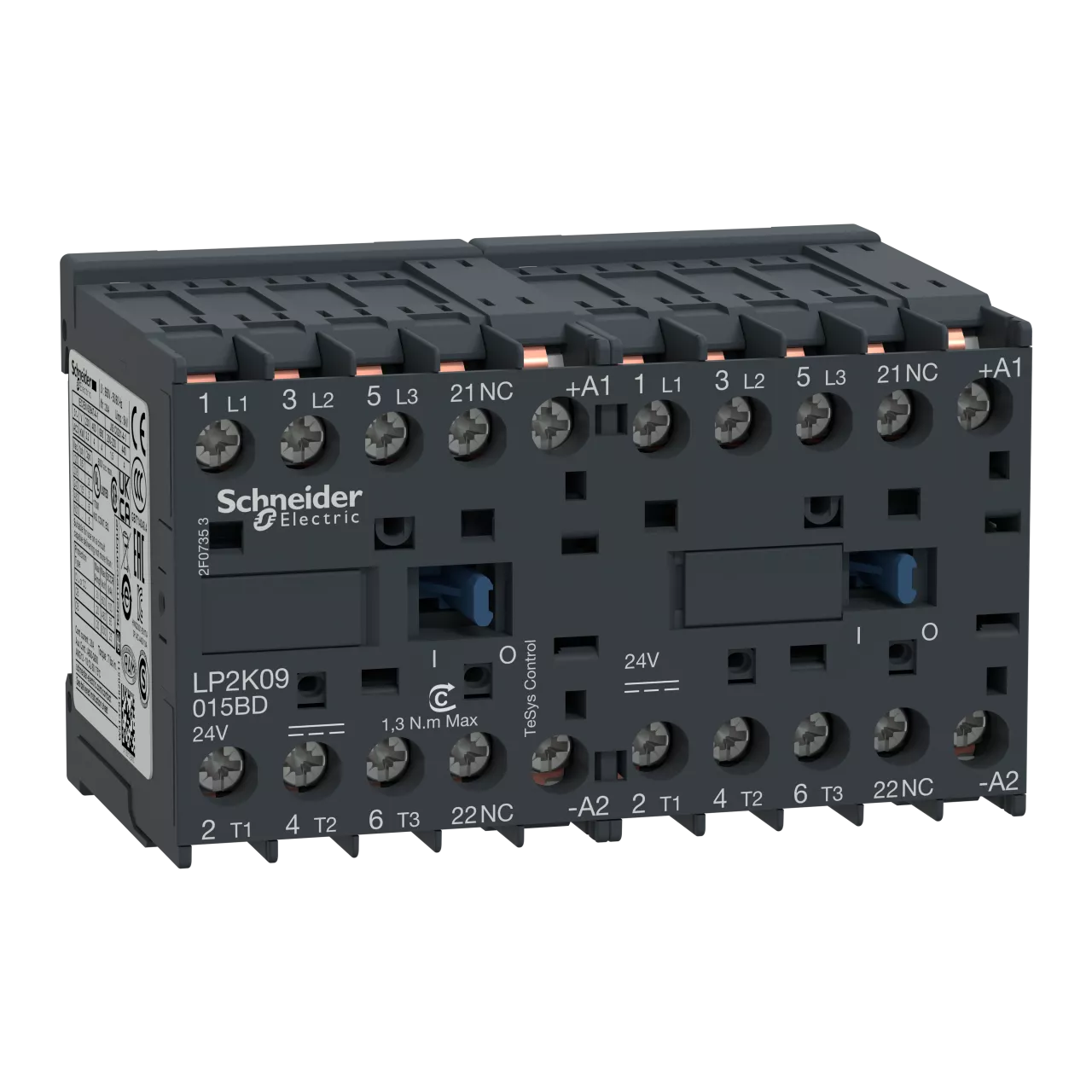

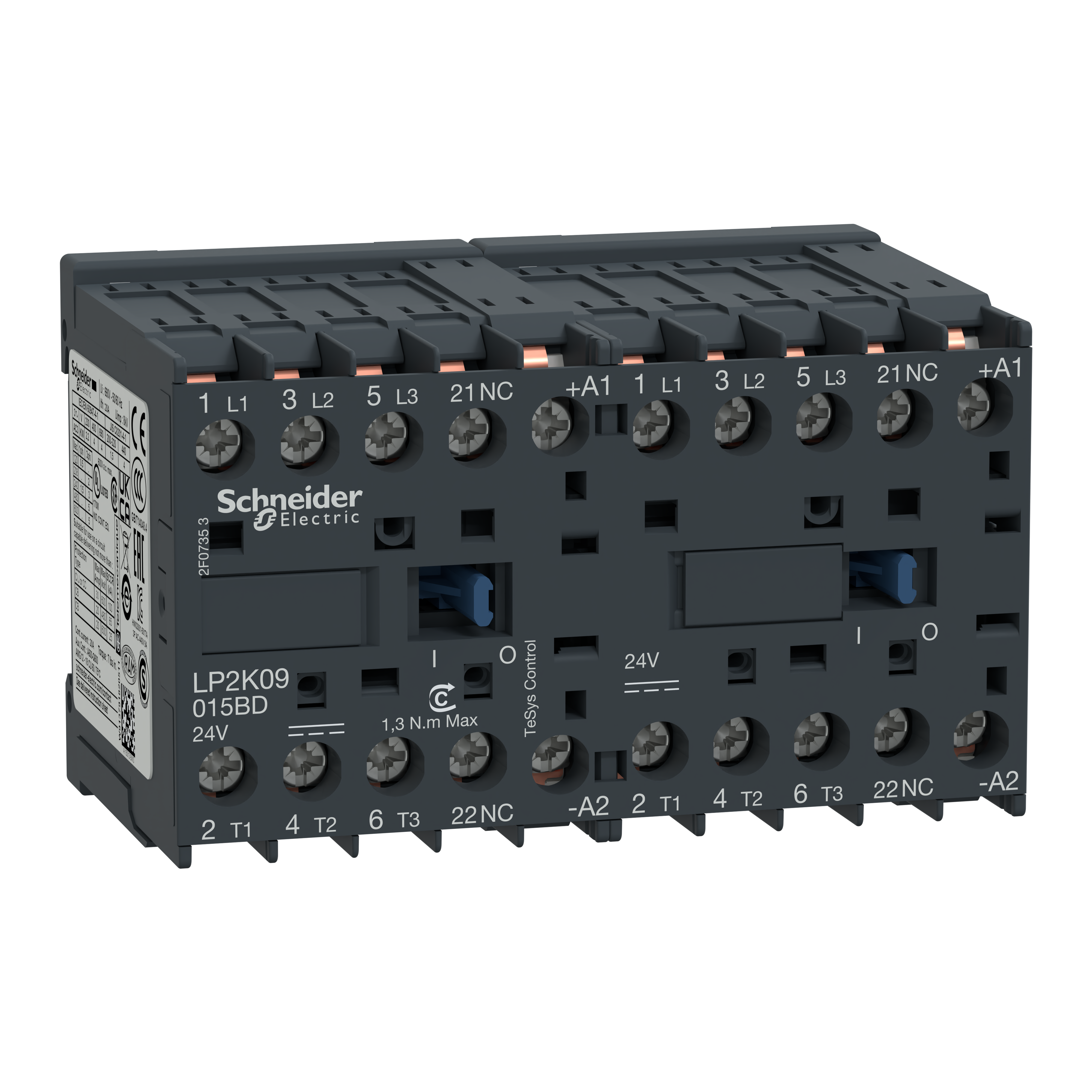

Stycznik nawrotny, TeSys K, 9A, 3P, 1NC, cewka 24VDC, nóżki lutownicze
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LP2K09015BD |
GTIN(EAN) | 3389110498578 |
Price unit | piece |
Catalog price | 758,54 zł (616,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 486 g |
ETIM class: | Combination of contactors |
Rail mounting possible: | no |
Degree of protection (IP): | IP20 |
Rated operation current Ie at AC-3, 400 V: | 9 A |
Type of electrical connection for auxiliary- and control current circuit: | Other |
Type of electrical connection of main circuit: | PCB connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Voltage type for actuating: | DC |
Rated operation power NEMA: | 3.73 kW |
Rated control supply voltage DC: | 24 - 24 V |
Function: | Reversing contactor |
Rated operation power at AC-3, 400 V: | 4 kW |
Degree of protection (NEMA): | Other |
