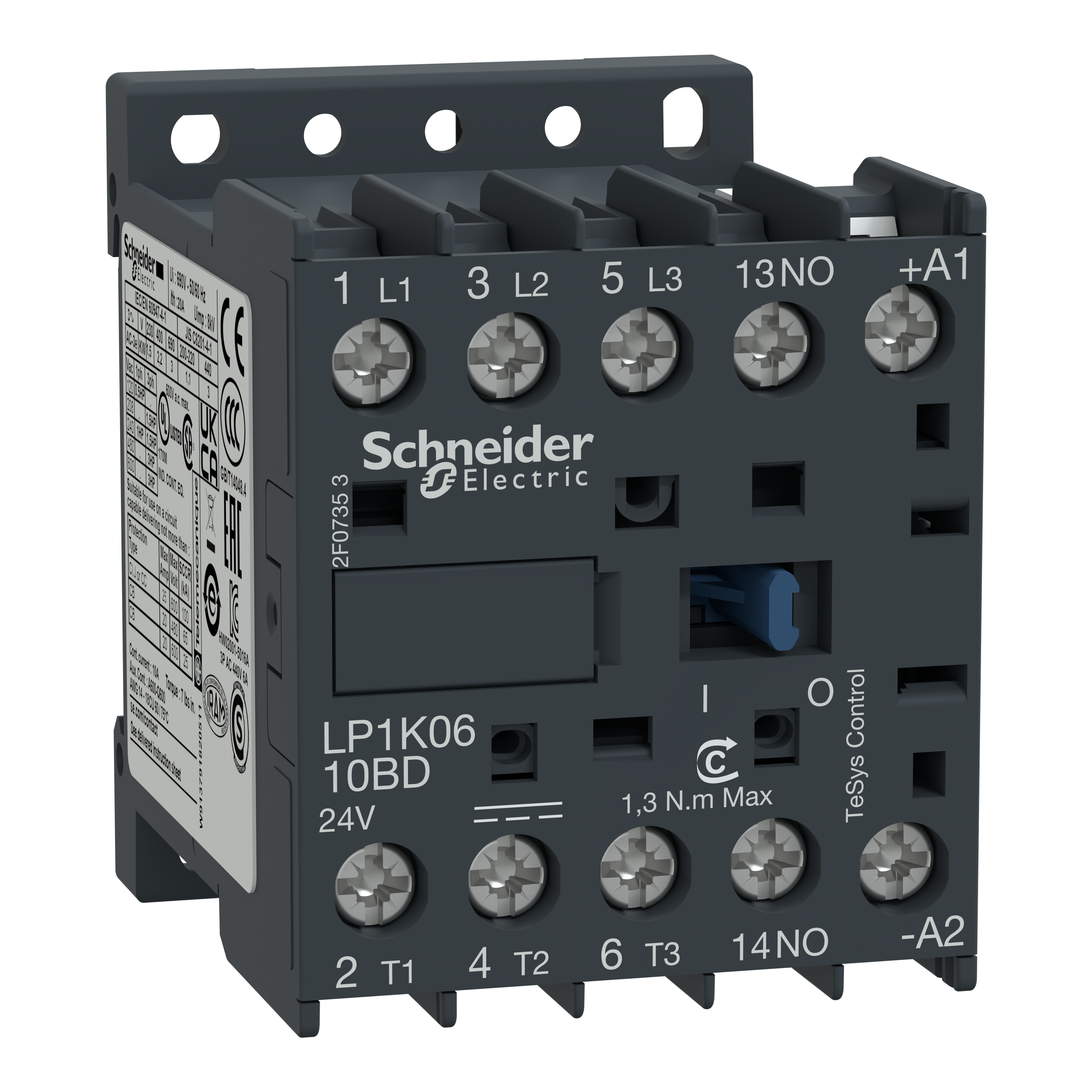

Stycznik mocy, TeSys K, 6A, 3P, 1NO, cewka 24VDC, zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LP1K0610BD |
| GTIN(EAN) | 3389110363227 |
| Price unit | piece |
| Catalog price | 189,49 zł (154,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
LP1K0610BD to kompaktowy 3-biegunowy stycznik TeSys K firmy Schneider Electric do zastosowań silnikowych. Znamionowe 6A AC-3 2,2kW/400V, stycznik zawiera cewkę o napięciu sterującym 24V DC i styk pomocniczy 1NC, umożliwiający łatwą integrację ze wszystkimi systemami ste rowania. • Znamionowy prąd łączeniowy AC-3 do 440V: 6A • Napięcie sterownia cewki: 24V DC • Liczba biegunów: 3 • Kategoria użytkowania zgodnie z IEC 60947-4-1: AC-3
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 14 |
| Gross weight: | 219 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-3, 400 V: | 6 A |
| Rated operation current Ie at AC-1, 400 V: | 20 A |
| Rated control supply voltage DC: | 24 - 24 V |
| Rated operation power at AC-3, 400 V: | 2.2 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 1.5 kW |
| Rated operation current Ie at AC-4, 400 V: | 4 A |
