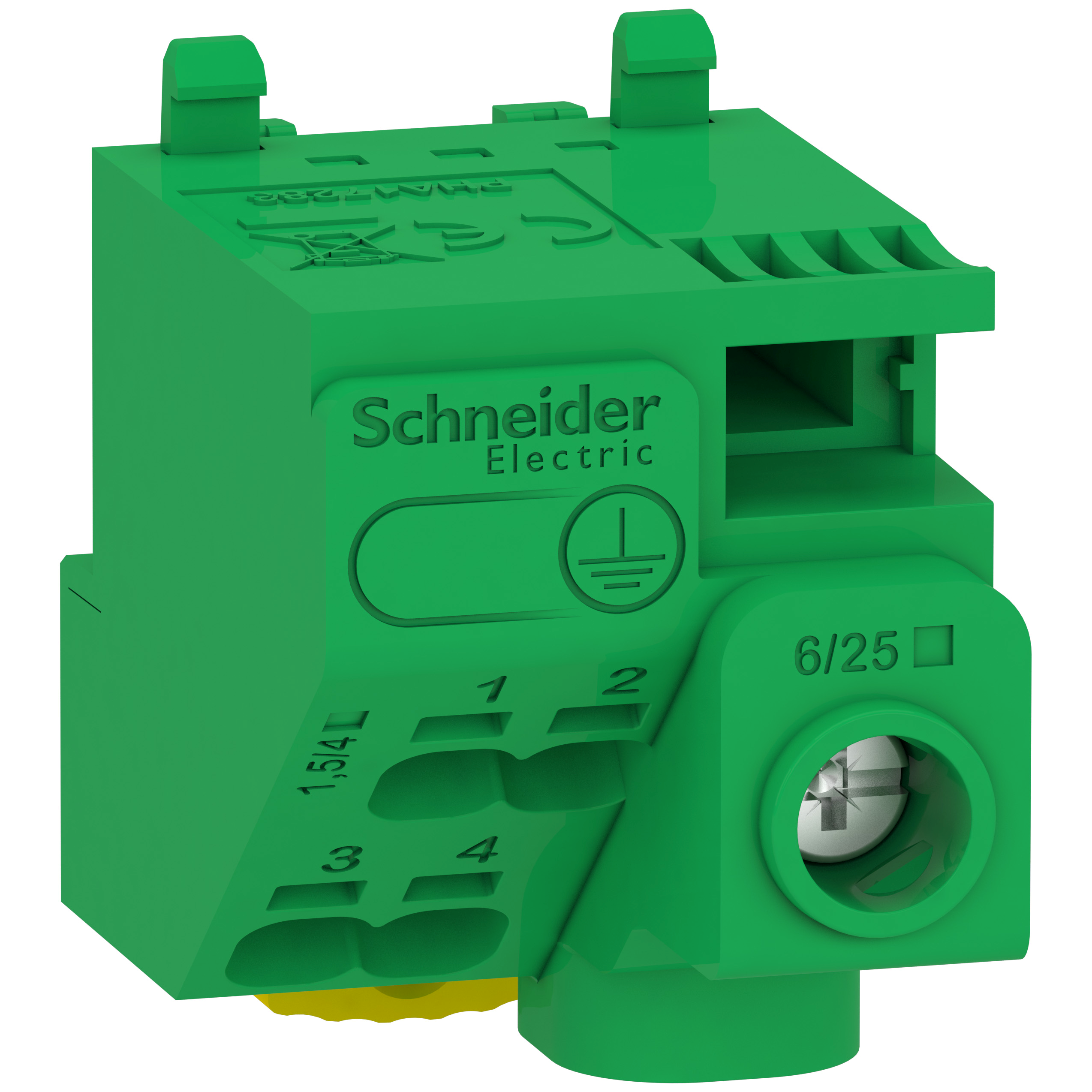

Blok zaciskowy PE, 5 wejść
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LGYT1E05 |
| GTIN(EAN) | 3606489580025 |
| Price unit | piece |
| Catalog price | 71,34 zł (58,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 59 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Number of clamp positions per pole: | 5 |
| Connectable conductor cross section solid-core: | 0.5 - 16 mm² |
| Inflammability class of insulation material according to with UL94: | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 25 mm² |
| Halogen free: | no |
| Mounting method: | Other |
| Transparent: | no |
| Number of poles: | 1 |
| Height: | 40 mm |
| Depth: | 46 mm |
| Closing plate required: | no |
| Type of electrical connection 2: | Screw connection |
| Colour: | Green |
| Rated voltage: | 440 V |
| Type of electrical connection 1: | Plug-in connection |
| Width: | 27 mm |
| Material insulation body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
| Rated current In: | 63 A |
| Connectable conductor cross section multi-wired: | 0.5 - 25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 25 mm² |
| Operating temperature: | -25 - 60 °C |
