Obudowa rozrusznika TeSys LE 1,8-2,6A cewka 220VAc
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LE1M35M708 |
| GTIN(EAN) | 3389110765632 |
| Price unit | piece |
| Catalog price | 643,99 zł (523,57 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

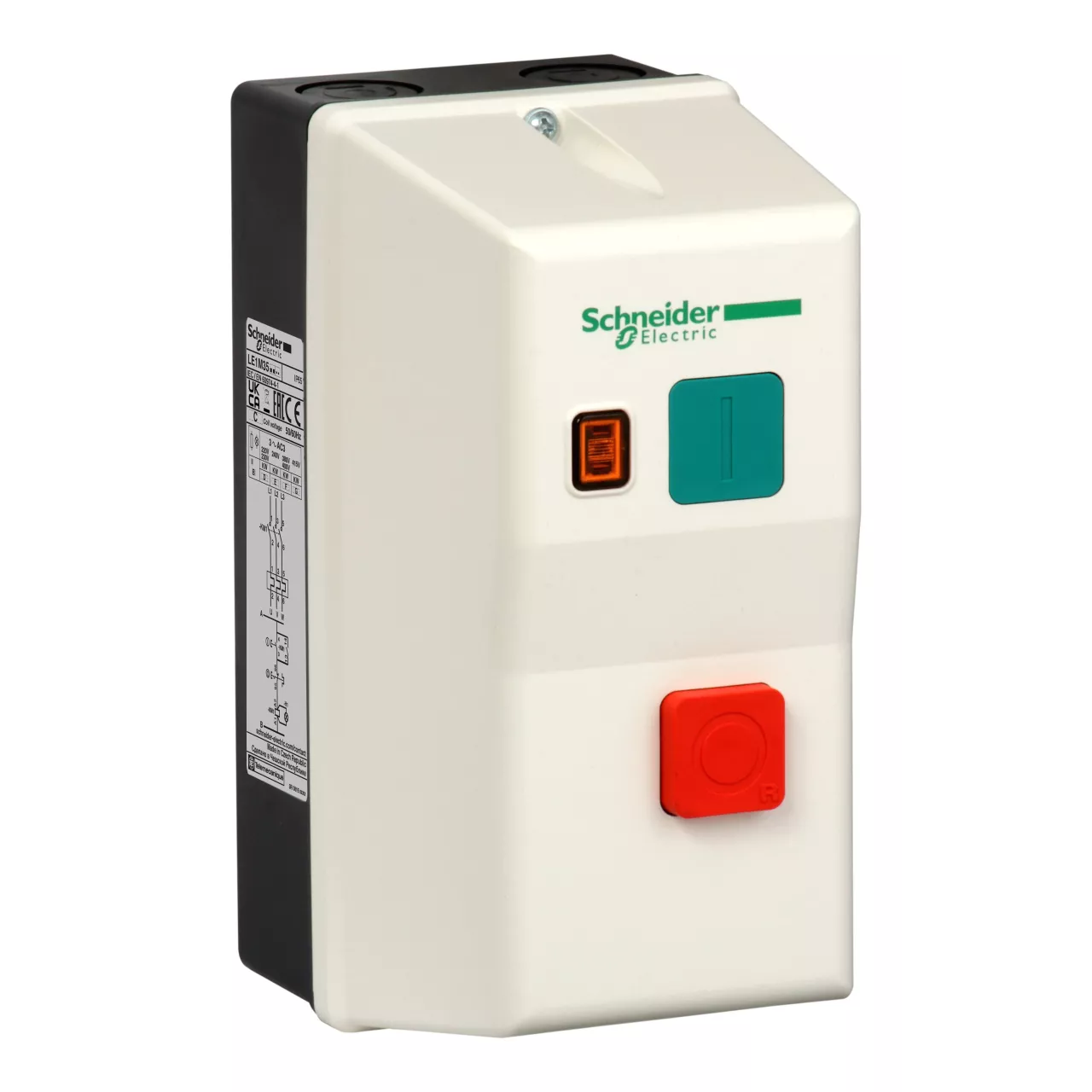

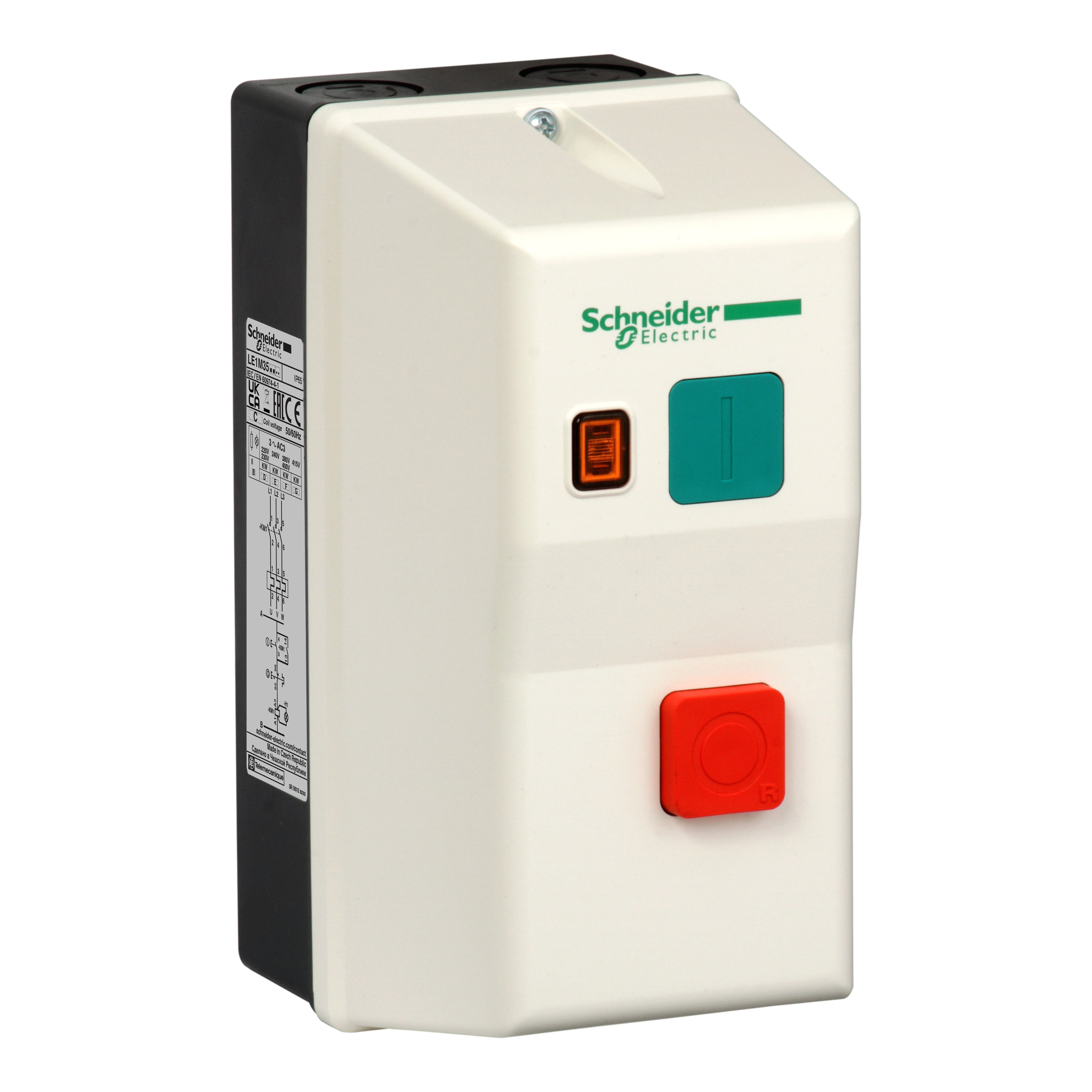

Obudowa rozrusznika TeSys LE firmy Schneider Electric o numerze katalogowym LE1M35M708. Rozrusznik LE1M35 w połączeniu z elementami zabezpieczającymi przed zwarciem zapewnia koordynację typu 1 lu typu 2, w zależności od typu zastosowanych urządzeń. Rozrusznik składa się ze stycznika LC1K, termicznego przekaźnika przeciążeniowego LR2K, zielonego prz ycisku Start "I", czerwonego przycisku Stop/Reset "O/R", żółtego wskaźnika pracy oraz uziemienia + zacisku neutralnego w dolnej części obudowy. Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów o najwyższej w swojej klasie ekologiczności. Green Premium obiecuje zgodność z najnowszymi przepisami, przejrzyst ość w zakresie wpływu na środowisko, a także produkty o obiegu zamkniętym i niskiej emisji CO2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 572,5 g |
| ETIM class: | Motor starter/motor starter combination |
| Supporting protocol for LON: | no |
| Type of motor starter: | Direct online starter (DOL) |
| Rated operation power at AC-3, 230 V, 3-phase: | 0.37 kW |
| Width: | 78 mm |
| Number of indicator lights: | 1 |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Voltage type for actuating: | AC |
| Rated control supply voltage AC 60 Hz: | 220 - 220 V |
| Rated control supply voltage AC 50 Hz: | 220 - 220 V |
| Temperature compensated overload protection: | yes |
| Rated power, 460 V, 60 Hz, 3-phase: | 0.75 kW |
| Rated power, 575 V, 60 Hz, 3-phase: | 1.1 kW |
| Rated operation current Ie: | 2.6 A |
| Rated operation current at AC-3, 400 V: | 2.6 A |
| Ambient temperature, upper operating limit: | 40 °C |
| With short-circuit release: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| With fuse: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | no |
| Suitable for emergency stop: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Degree of protection (IP): | IP65 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Depth: | 108 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| External reset possible: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Number of command positions: | 2 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Release class: | CLASS 10 A |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 160 mm |
| Rated operation power at AC-3, 400 V: | 1.1 kW |
| With transformer: | no |
| Supporting protocol for SERCOS: | no |
| Overload release current setting: | 1.8 - 2.6 A |
