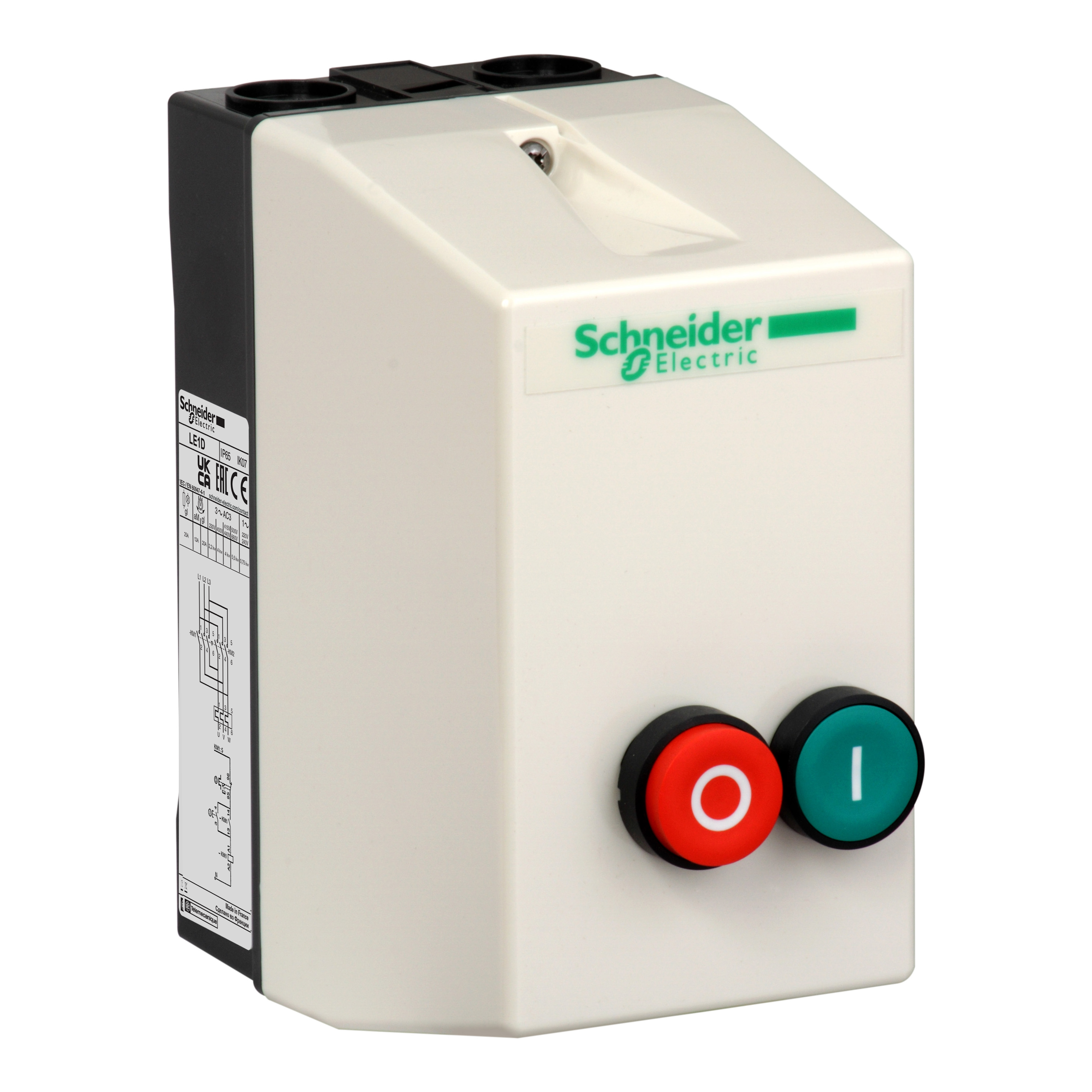

Rozrusznik silnikowy w obudowie TeSys LE 12A cewka 220VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LE1D12M7 |
| GTIN(EAN) | 3389110575224 |
| Price unit | piece |
| Catalog price | 1 484,59 zł (1 206,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 874 g |
| ETIM class: | Motor starter/motor starter combination |
| Supporting protocol for LON: | no |
| Type of motor starter: | Direct online starter (DOL) |
| Rated operation power at AC-3, 230 V, 3-phase: | 3 kW |
| Width: | 88 mm |
| Number of indicator lights: | 0 |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Voltage type for actuating: | AC |
| Rated control supply voltage AC 60 Hz: | 220 - 220 V |
| Rated control supply voltage AC 50 Hz: | 220 - 220 V |
| Rated power, 460 V, 60 Hz, 3-phase: | 5.5 kW |
| Rated power, 575 V, 60 Hz, 3-phase: | 7.5 kW |
| Rated operation current Ie: | 12 A |
| Rated operation current at AC-3, 400 V: | 12 A |
| Ambient temperature, upper operating limit: | 40 °C |
| With short-circuit release: | no |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| With fuse: | no |
| Supporting protocol for Data-Highway: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | no |
| Suitable for emergency stop: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Degree of protection (IP): | IP65 |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Depth: | 128.5 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| External reset possible: | no |
| Type of electrical connection of main circuit: | Screw connection |
| Number of command positions: | 2 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 168 mm |
| Rated operation power at AC-3, 400 V: | 5.5 kW |
| With transformer: | no |
| Supporting protocol for SERCOS: | no |
