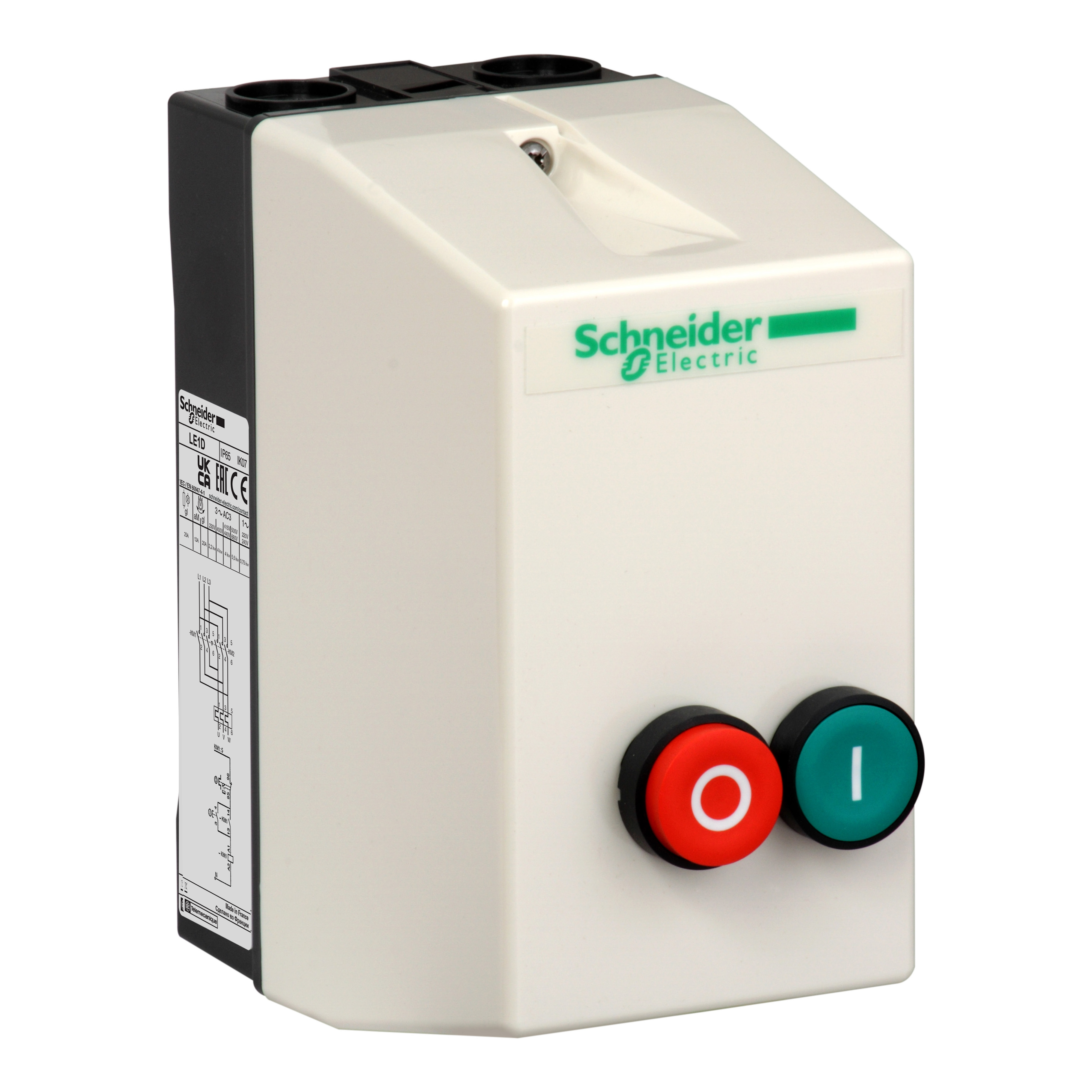

Rozrusznik silnikowy w obudowie TeSys LE 9A cewka 440VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LE1D09R7 |
GTIN(EAN) | 3389110573039 |
Price unit | piece |
Catalog price | 1 627,45 zł (1 323,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 868 g |
ETIM class: | Motor starter/motor starter combination |
Supporting protocol for LON: | no |
Type of motor starter: | Direct online starter (DOL) |
Rated operation power at AC-3, 230 V, 3-phase: | 2.2 kW |
Width: | 88 mm |
Number of indicator lights: | 0 |
Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
Voltage type for actuating: | AC |
Rated control supply voltage AC 60 Hz: | 440 - 440 V |
Rated control supply voltage AC 50 Hz: | 440 - 440 V |
Rated power, 460 V, 60 Hz, 3-phase: | 4 kW |
Rated power, 575 V, 60 Hz, 3-phase: | 5.5 kW |
Rated operation current Ie: | 9 A |
Rated operation current at AC-3, 400 V: | 9 A |
Ambient temperature, upper operating limit: | 40 °C |
With short-circuit release: | no |
Supporting protocol for SUCONET: | no |
Supporting protocol for other bus systems: | no |
With fuse: | no |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | no |
Supporting protocol for DeviceNet: | no |
Rail mounting possible: | no |
Suitable for emergency stop: | no |
Supporting protocol for TCP/IP: | no |
Supporting protocol for PROFIBUS: | no |
Degree of protection (IP): | IP65 |
Supporting protocol for ASI: | no |
Supporting protocol for INTERBUS: | no |
Supporting protocol for CAN: | no |
Depth: | 128.5 mm |
Supporting protocol for AS-Interface Safety at Work: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Supporting protocol for PROFINET IO: | no |
Supporting protocol for DeviceNet Safety: | no |
External reset possible: | yes |
Type of electrical connection of main circuit: | Screw connection |
Number of command positions: | 2 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Supporting protocol for INTERBUS-Safety: | no |
Height: | 166 mm |
Rated operation power at AC-3, 400 V: | 4 kW |
With transformer: | no |
Supporting protocol for SERCOS: | no |
