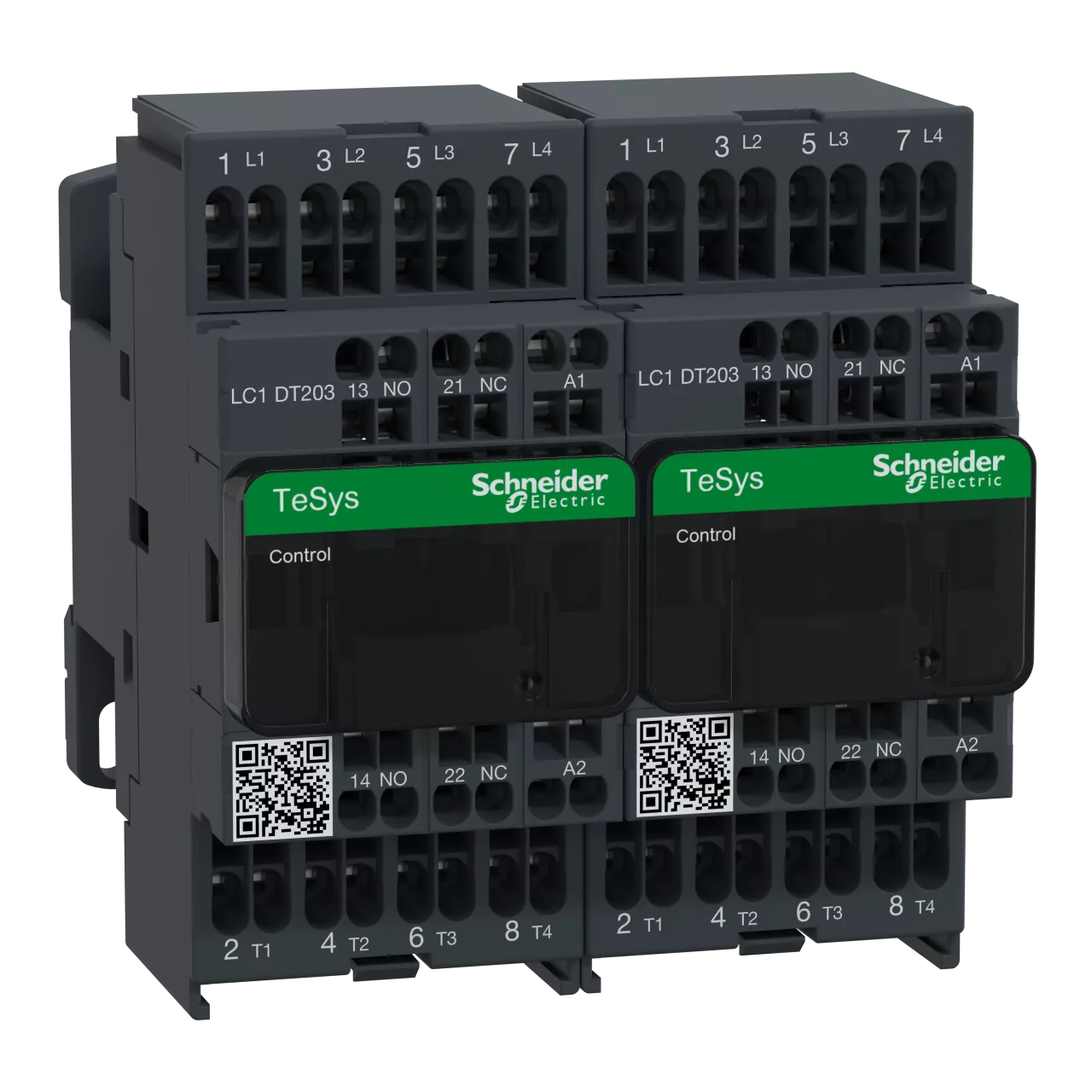

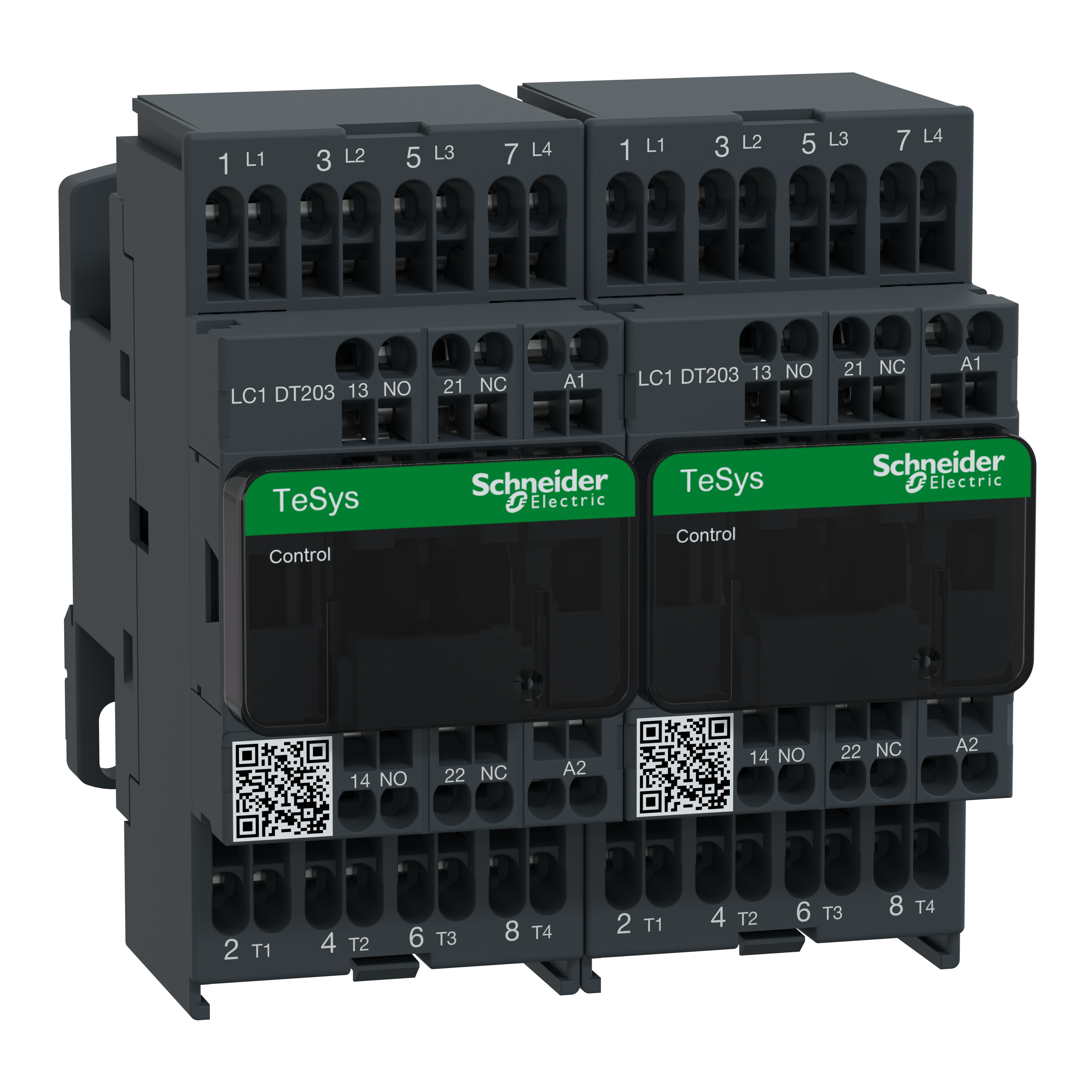

Układ nawrotny TeSys D AC1 40A 4P 1NO 1NC cewka 48VAC zaciski sprężynowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC2DT403E7 |
| GTIN(EAN) | 3389119404969 |
| Price unit | piece |
| Catalog price | 2 468,49 zł (2 006,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 870 g |
| ETIM class: | Combination of contactors |
| Rail mounting possible: | yes |
| Degree of protection (IP): | IP20 |
| Rated operation current Ie at AC-1, 400 V: | 40 A |
| Type of electrical connection for auxiliary- and control current circuit: | Spring clamp connection |
| Type of electrical connection of main circuit: | Spring clamp connection |
| Number of normally open contacts as main contact: | 2 |
| Number of normally closed contacts as main contact: | 2 |
| Voltage type for actuating: | AC |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage AC 50 Hz: | 48 - 48 V |
| Function: | Changeover contactor |
| Degree of protection (NEMA): | Other |
