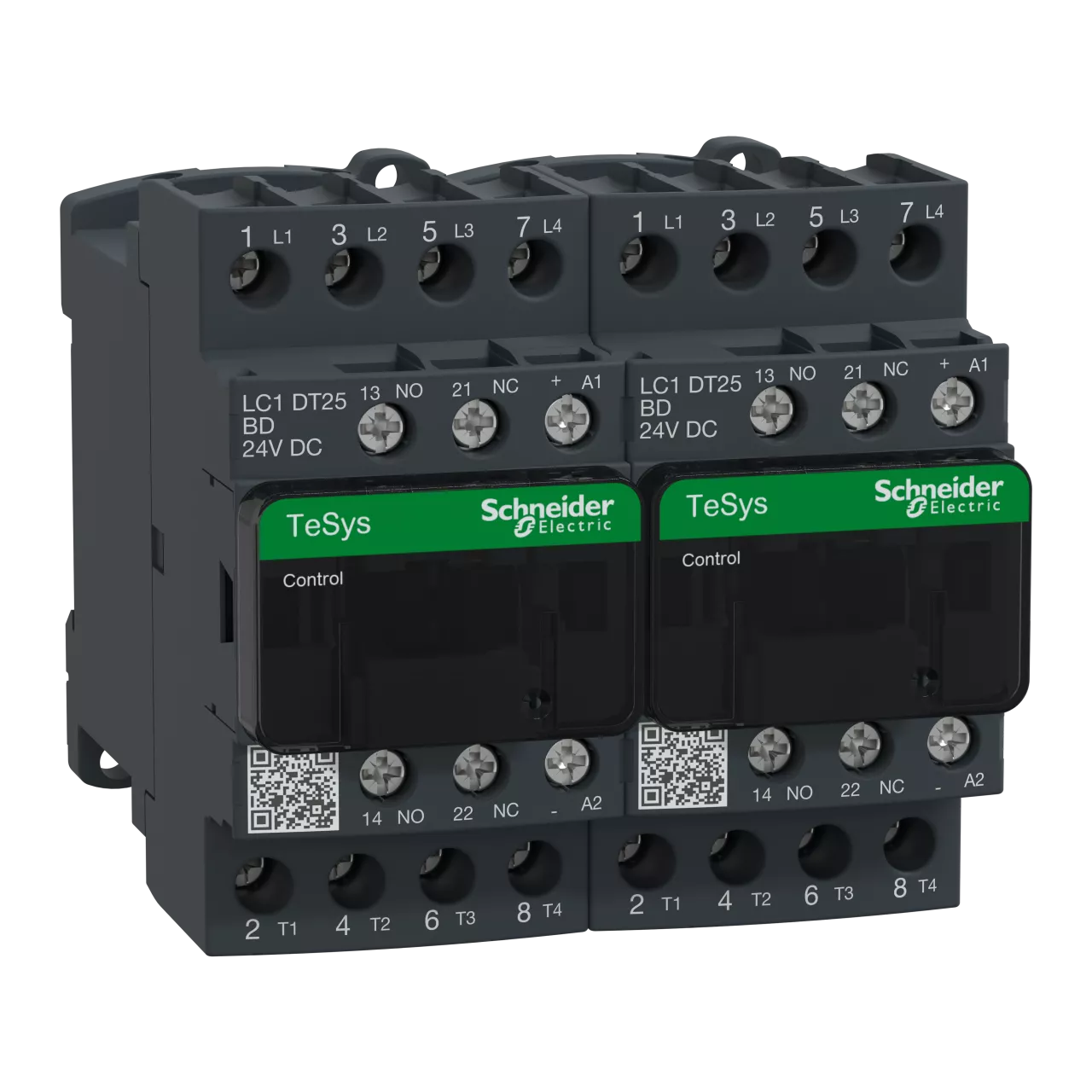

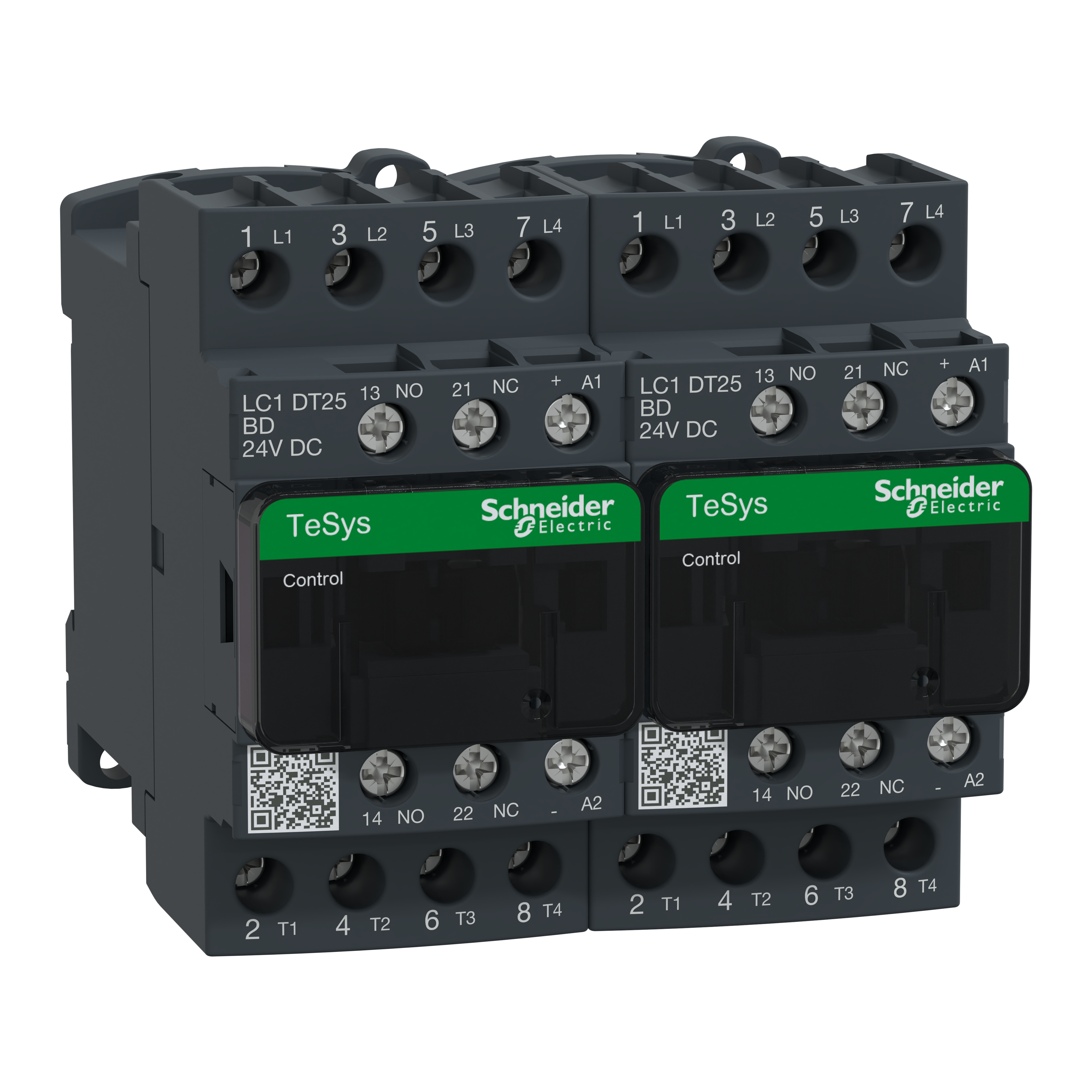

Układ nawrotny TeSys D 25A 4P 1NO 1NC cewka 24VDC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC2DT25BD |
| GTIN(EAN) | 3389110247978 |
| Price unit | piece |
| Catalog price | 1 874,54 zł (1 524,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,2 kg |
| ETIM class: | Combination of contactors |
| Rail mounting possible: | yes |
| Degree of protection (IP): | IP20 |
| Rated operation current Ie at AC-1, 400 V: | 25 A |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 2 |
| Number of normally closed contacts as main contact: | 2 |
| Voltage type for actuating: | DC |
| Rated control supply voltage DC: | 24 - 24 V |
| Function: | Changeover contactor |
| Degree of protection (NEMA): | Other |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:46 |
| Files to download: |
|
| External links: |
