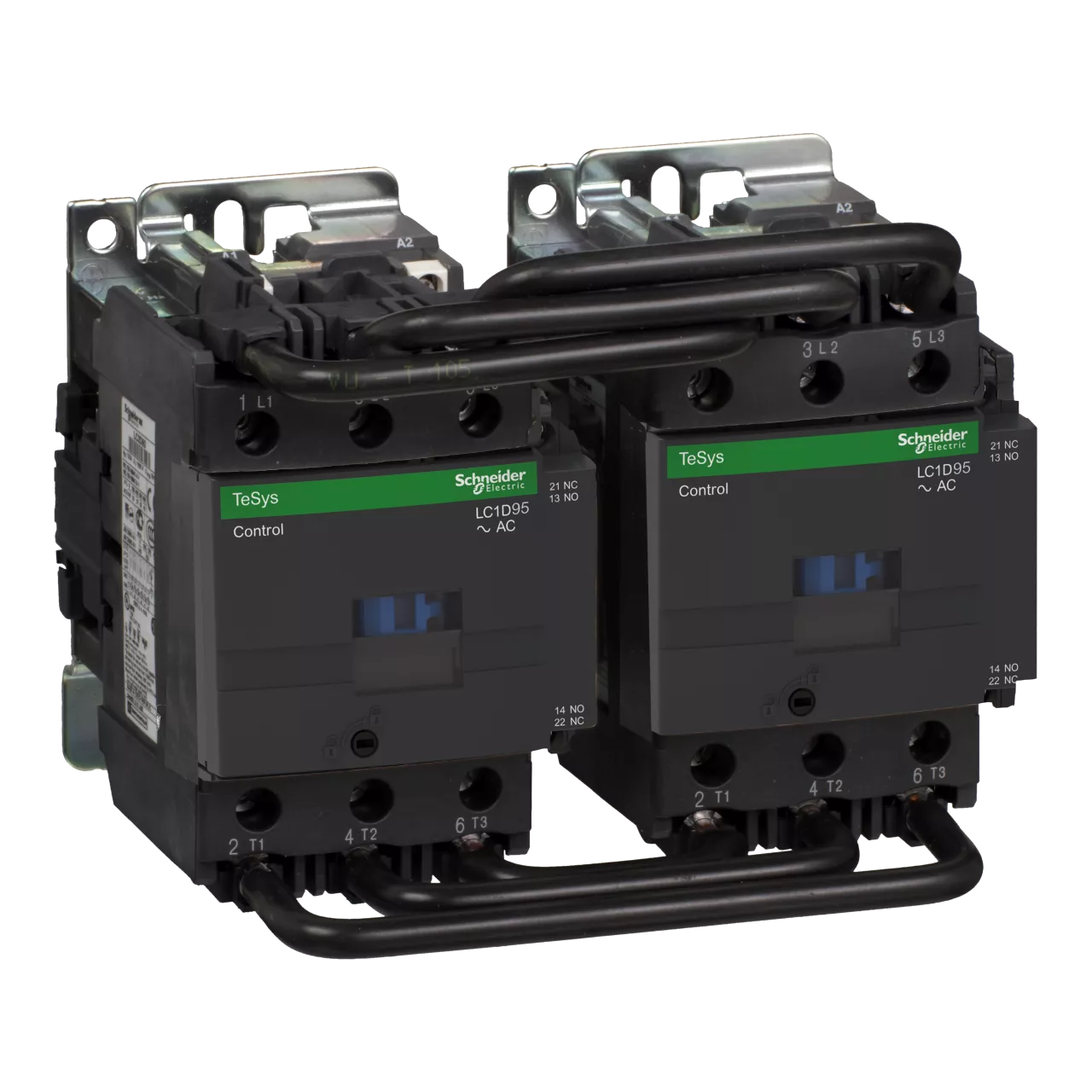

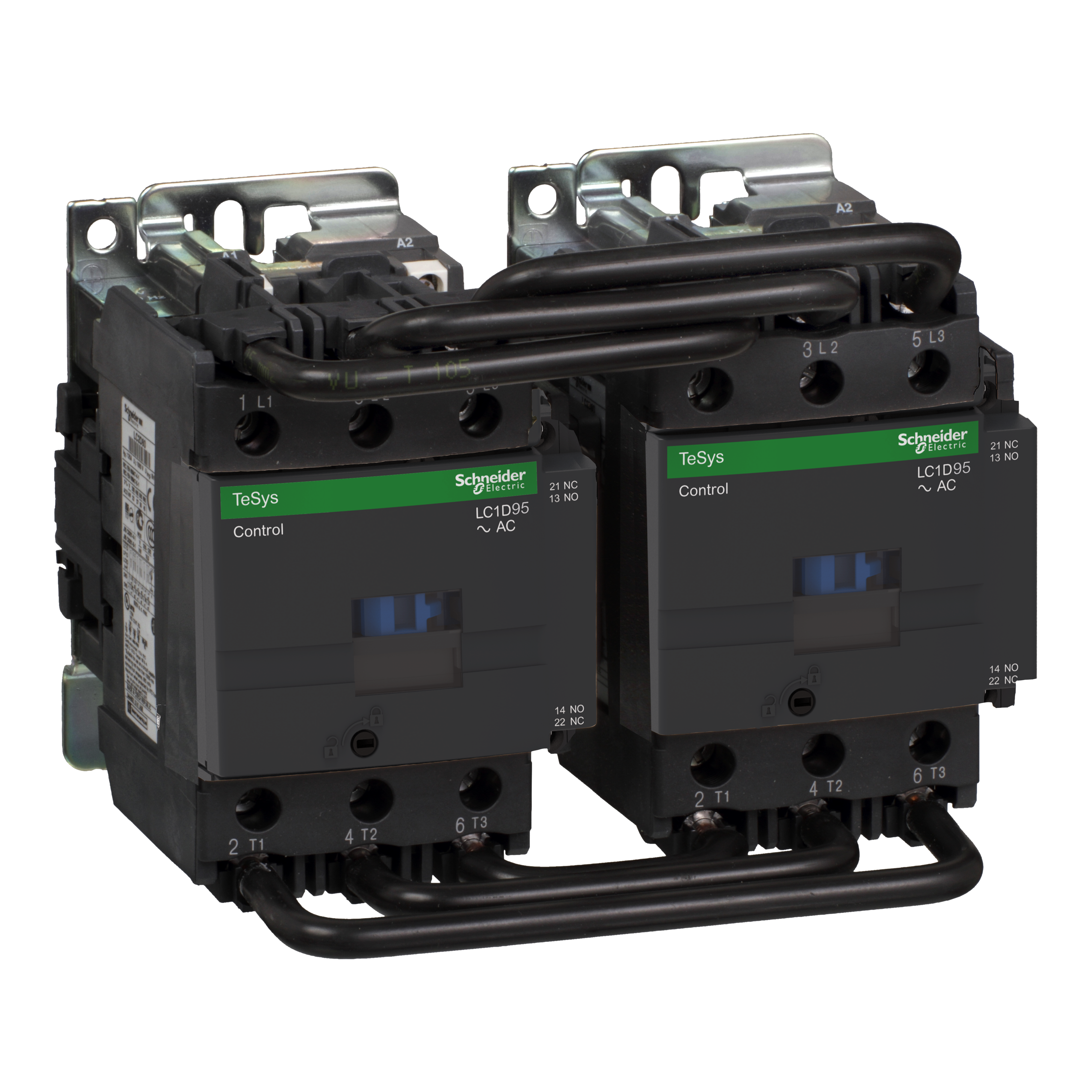

Układ nawrotny TeSys D AC3 95A 3P 1NO 1NC cewka 24VAC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC2D95B7 |
| GTIN(EAN) | 3389110458152 |
| Price unit | piece |
| Catalog price | 7 690,07 zł (6 252,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 3,795 kg |
| ETIM class: | Combination of contactors |
| Rail mounting possible: | no |
| Degree of protection (IP): | IP20 |
| Rated operation current Ie at AC-3, 400 V: | 95 A |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Voltage type for actuating: | AC |
| Rated operation power NEMA: | 44.8 kW |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Function: | Reversing contactor |
| Rated operation power at AC-3, 400 V: | 45 kW |
| Degree of protection (NEMA): | Other |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:46 |
| Files to download: | |
| External links: |
