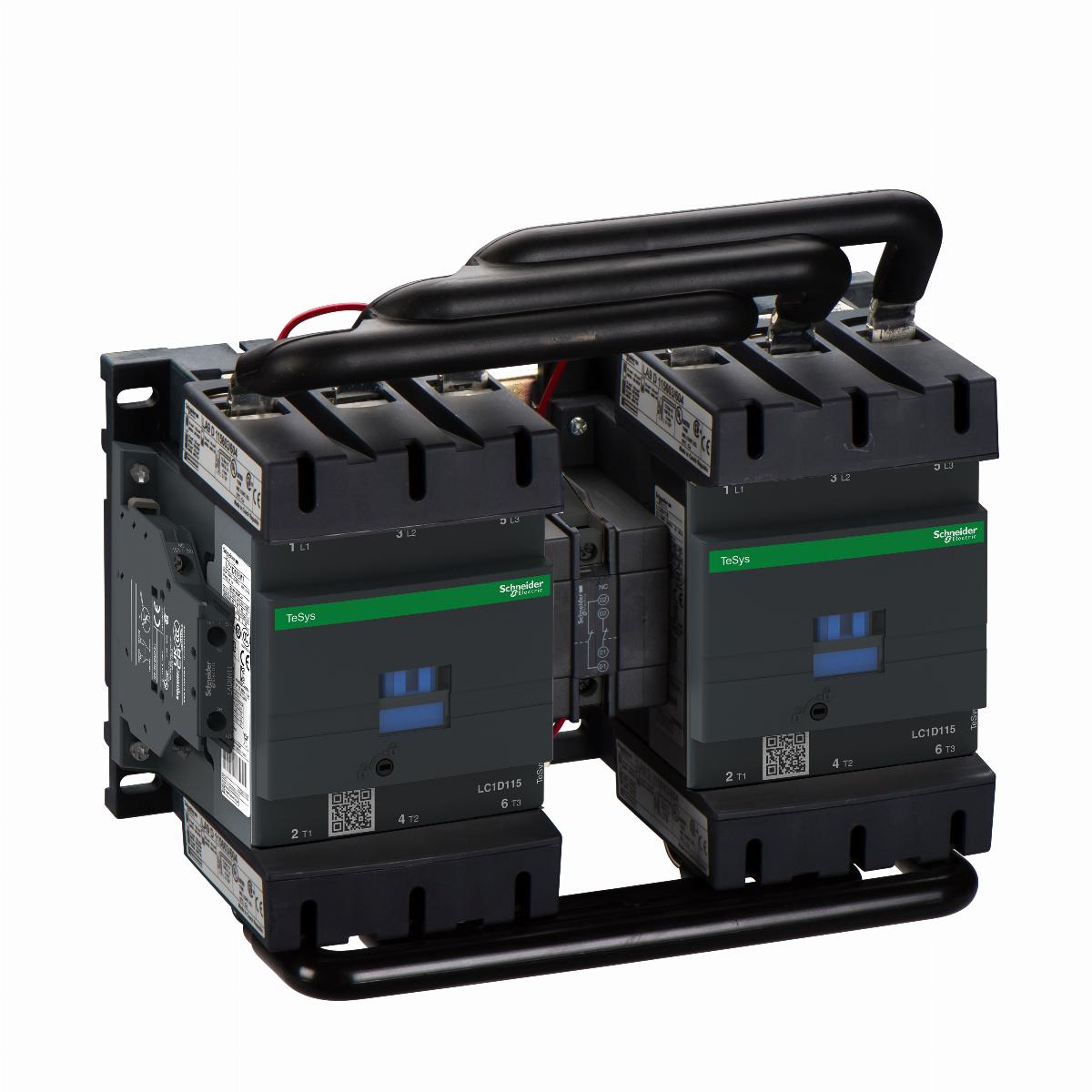

Układ nawrotny, TeSys Deca, AC3, 115A, 3P, 1NO 1NC, cewka 48VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC2D115E7 |
| GTIN(EAN) | 3389110530766 |
| Price unit | piece |
| Catalog price | 6 724,04 zł (5 466,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 6,5 kg |
| ETIM class: | Combination of contactors |
| Rail mounting possible: | no |
| Degree of protection (IP): | IP20 |
| Rated operation current Ie at AC-3, 400 V: | 115 A |
| Type of electrical connection for auxiliary- and control current circuit: | Screw connection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Voltage type for actuating: | AC |
| Rated operation power NEMA: | 55.9 kW |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage AC 50 Hz: | 48 - 48 V |
| Function: | Reversing contactor |
| Rated operation power at AC-3, 400 V: | 55 kW |
| Degree of protection (NEMA): | Other |
