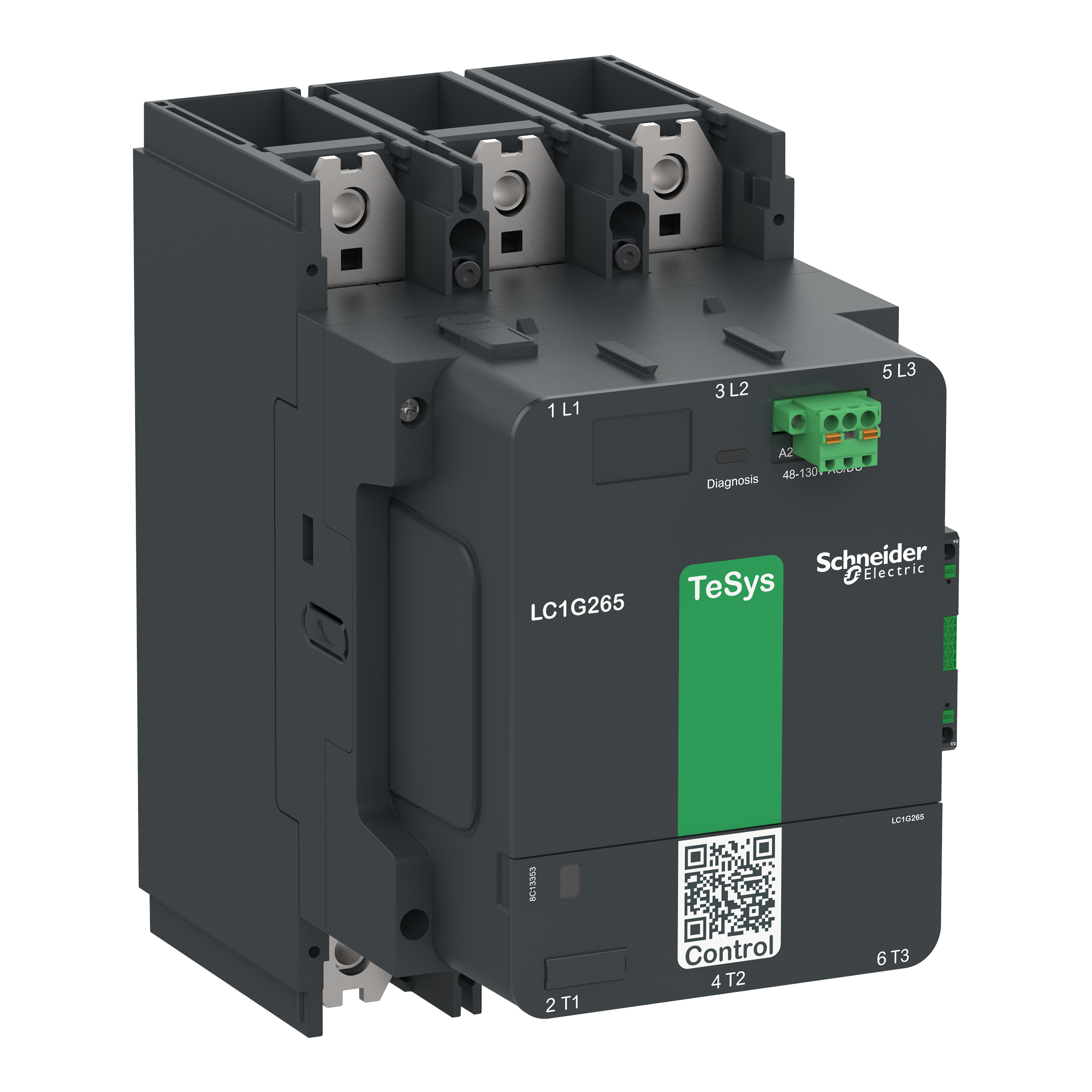

Stycznik mocy, TeSys Giga, 3 biegunowy (3NO), AC-3 <=440V 400A, wersja standardowa, 48…130V szerokozakresowa AC/DC cewka elektroniczna
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1G400EHEN |
| GTIN(EAN) | 3606481921888 |
| Price unit | piece |
| Catalog price | 8 508,76 zł (6 917,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 7,75 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Bolt connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-3, 400 V: | 400.0 A |
| Rated operation current Ie at AC-1, 400 V: | 550.0 A |
| Rated operation power NEMA: | 300 kW |
| Rated control supply voltage AC 60 Hz: | 48 - 130 V |
| Rated control supply voltage AC 50 Hz: | 48 - 130 V |
| Rated control supply voltage DC: | 48 - 130 V |
| Rated operation power at AC-3, 400 V: | 200.0 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 200.0 kW |
| Rated operation current Ie at AC-4, 400 V: | 400 A |
