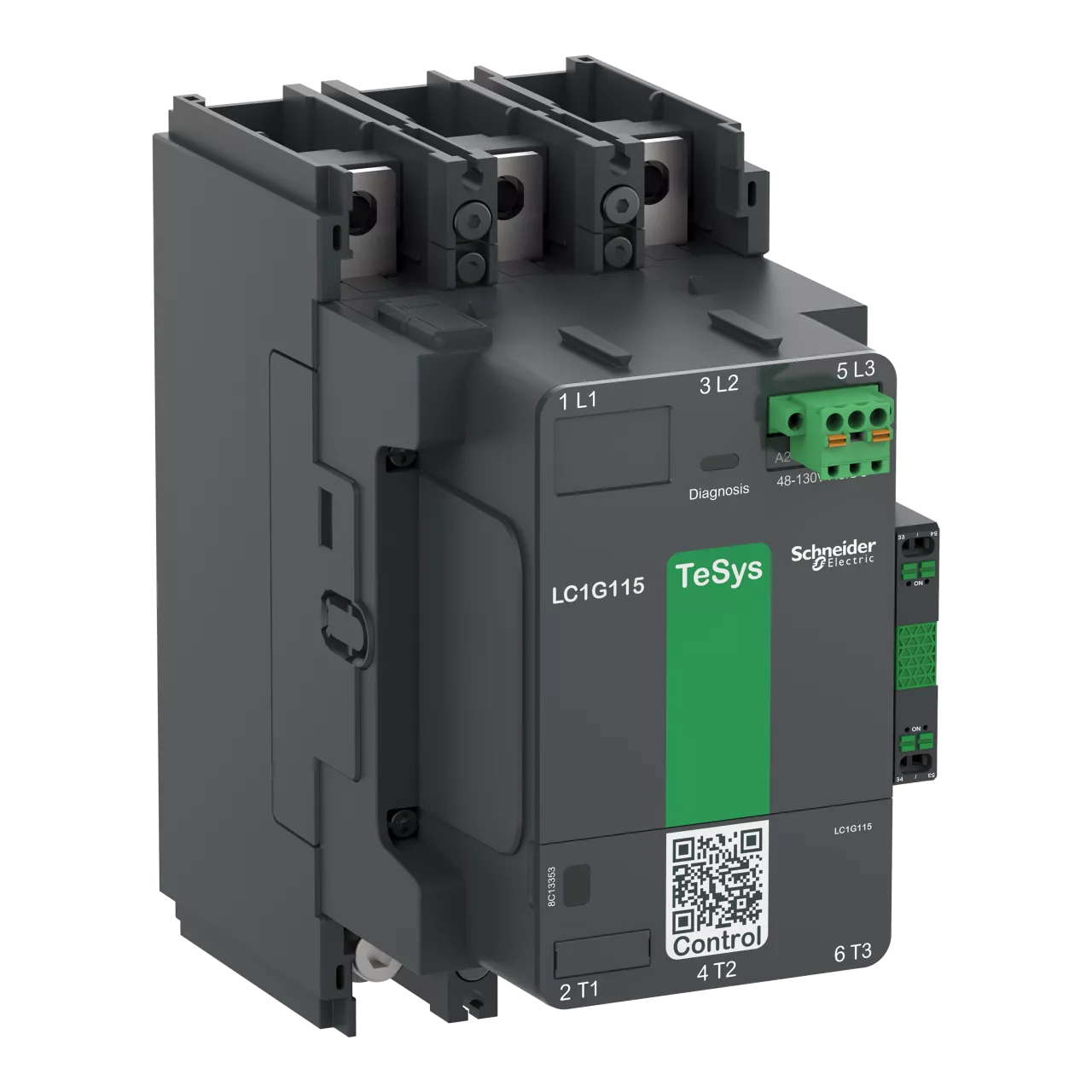

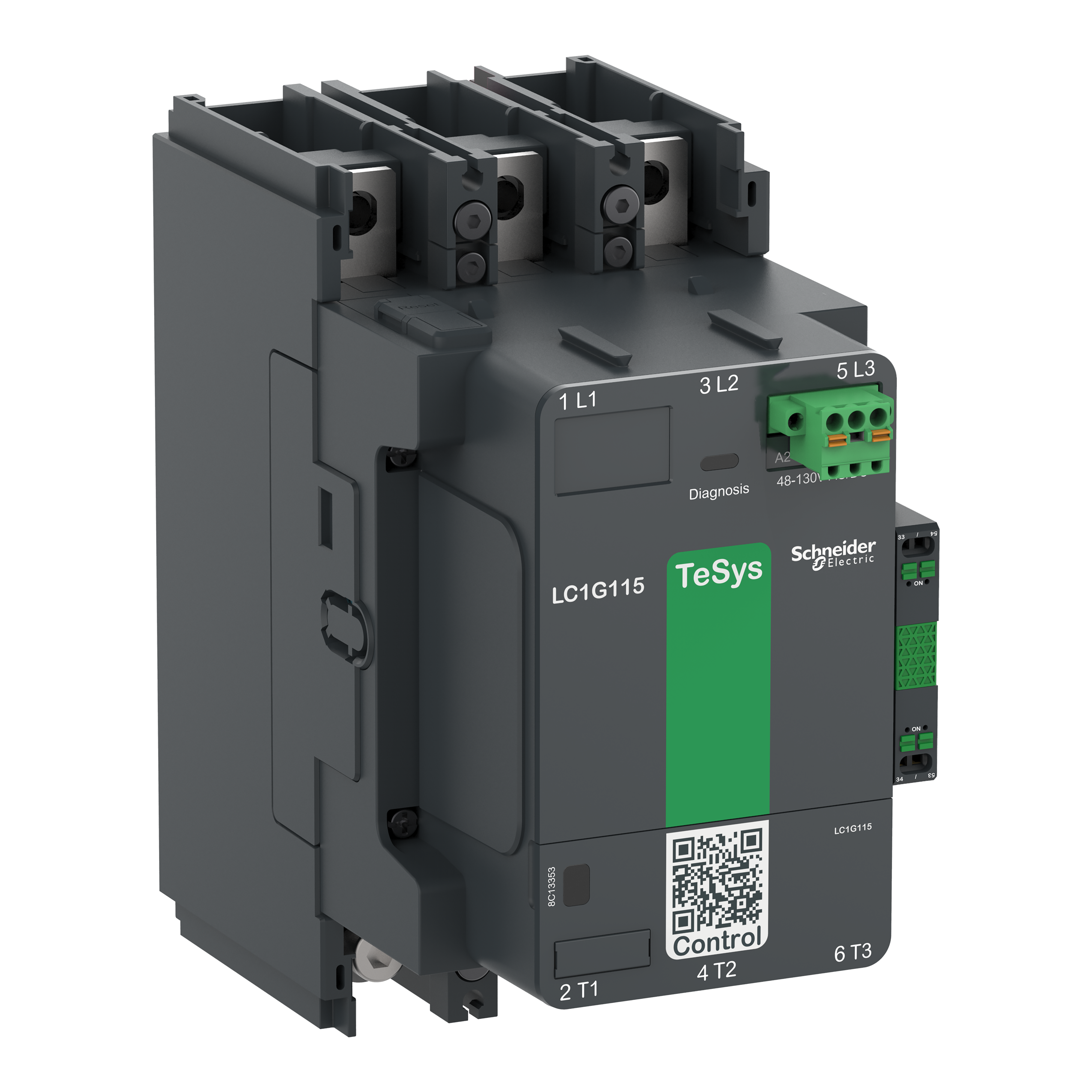

Stycznik mocy, TeSys Giga, 3 biegunowy (3NO), AC-3 <=440V 115A, wersja standardowa, 100…250V szerokozakresowa AC/DC cewka elektroniczna
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1G115KUEN |
GTIN(EAN) | 3606481921925 |
Price unit | piece |
Catalog price | 3 254,59 zł (2 646,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 4,573 kg |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Bolt connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC/DC |
Rated operation current Ie at AC-3, 400 V: | 115.0 A |
Rated operation current Ie at AC-1, 400 V: | 250.0 A |
Rated operation power NEMA: | 75 kW |
Rated control supply voltage AC 60 Hz: | 100 - 250 V |
Rated control supply voltage AC 50 Hz: | 100 - 250 V |
Rated control supply voltage DC: | 100 - 250 V |
Rated operation power at AC-3, 400 V: | 55.0 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 55.0 kW |
Rated operation current Ie at AC-4, 400 V: | 115 A |
