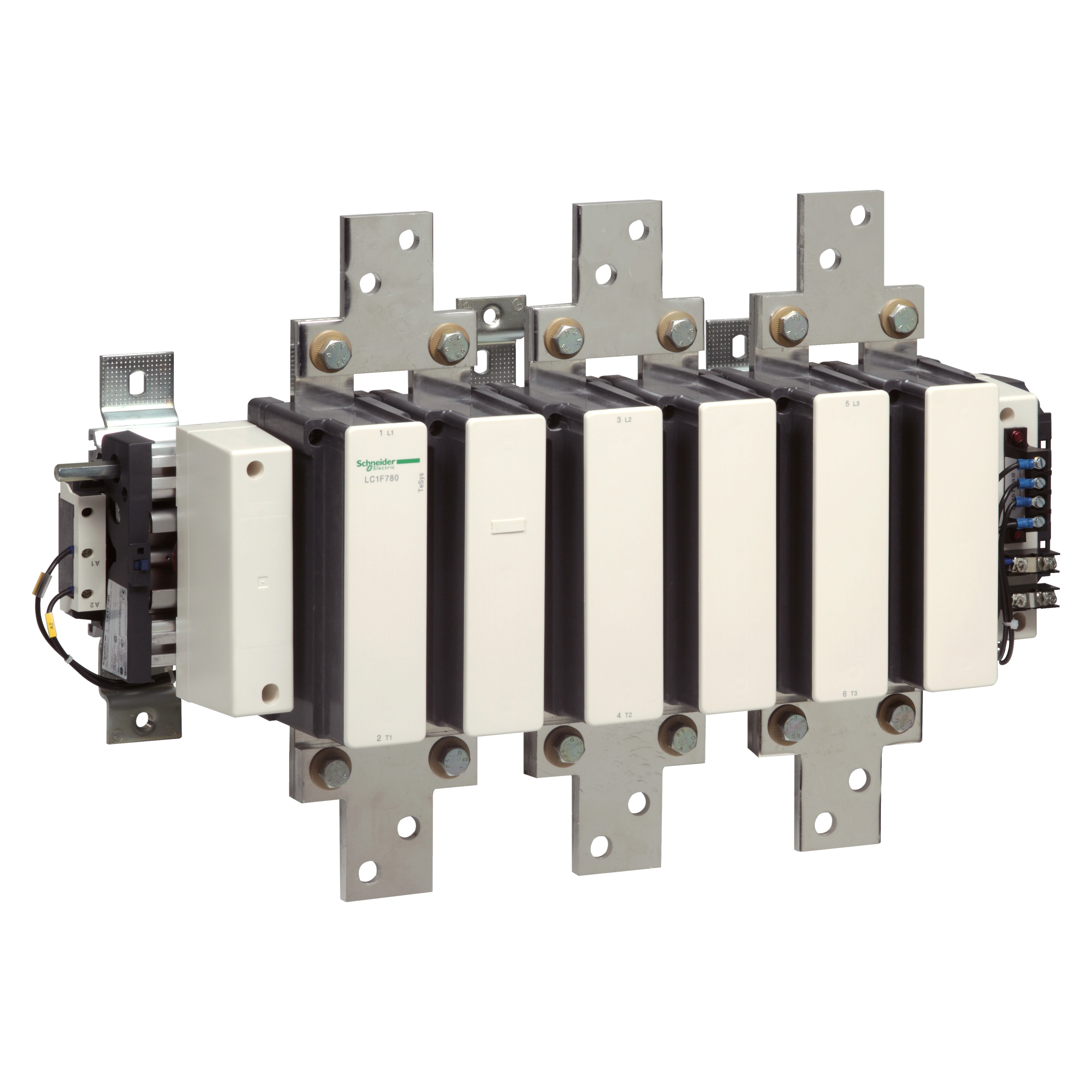

Stycznik mocy, TeSys F, AC3, , 780A, 3P, 1NO 1NC, cewka 120VAC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1F780G7 |
| GTIN(EAN) | 3389110227253 |
| Price unit | piece |
| Catalog price | 88 459,18 zł (71 918,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 51 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Bolt connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 780 A |
| Rated operation current Ie at AC-1, 400 V: | 1600 A |
| Rated control supply voltage AC 60 Hz: | 120 - 120 V |
| Rated control supply voltage AC 50 Hz: | 120 - 120 V |
| Rated operation power at AC-3, 400 V: | 400 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 110 kW |
| Rated operation current Ie at AC-4, 400 V: | 225 A |
