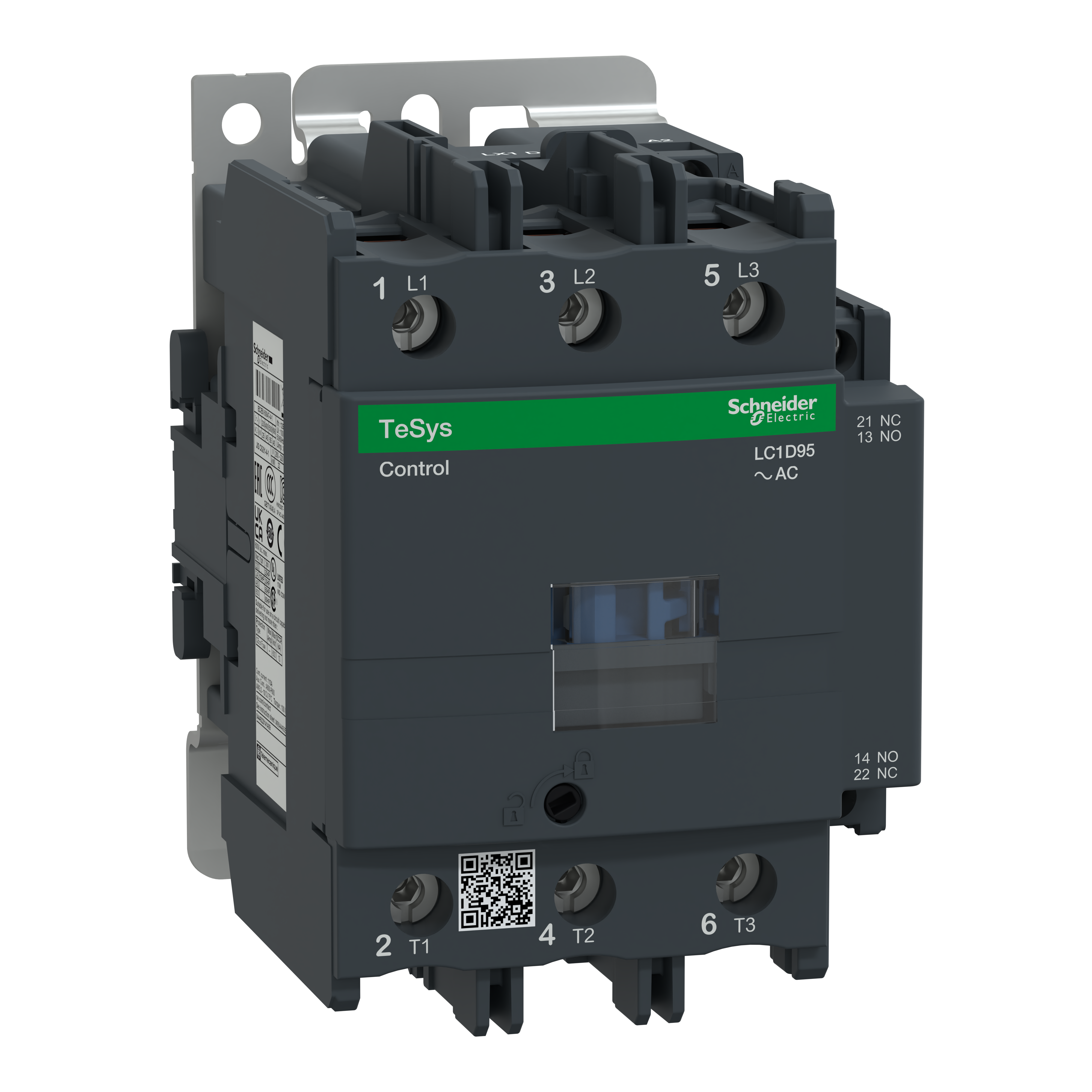

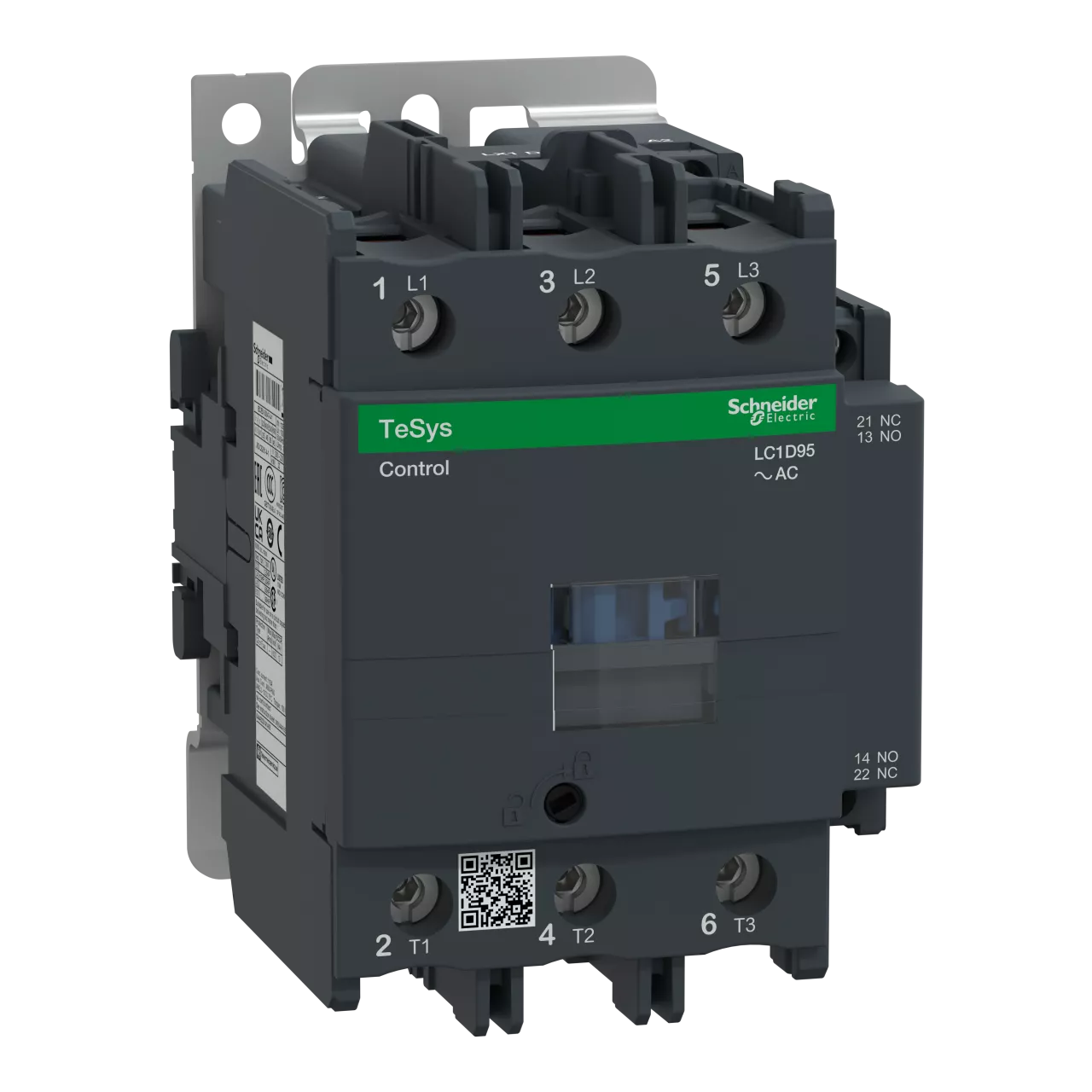

Stycznik mocy TeSys D AC3 95A 3P 1NO 1NC cewka 380VAC zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | LC1D95Q7 |
| GTIN(EAN) | 3389110451832 |
| Price unit | piece |
| Catalog price | 2 423,30 zł (1 970,16 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,551 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 95 A |
| Rated operation current Ie at AC-1, 400 V: | 125 A |
| Rated control supply voltage AC 60 Hz: | 380 - 380 V |
| Rated control supply voltage AC 50 Hz: | 380 - 380 V |
| Rated operation power at AC-3, 400 V: | 45 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 15 kW |
| Rated operation current Ie at AC-4, 400 V: | 32 A |
