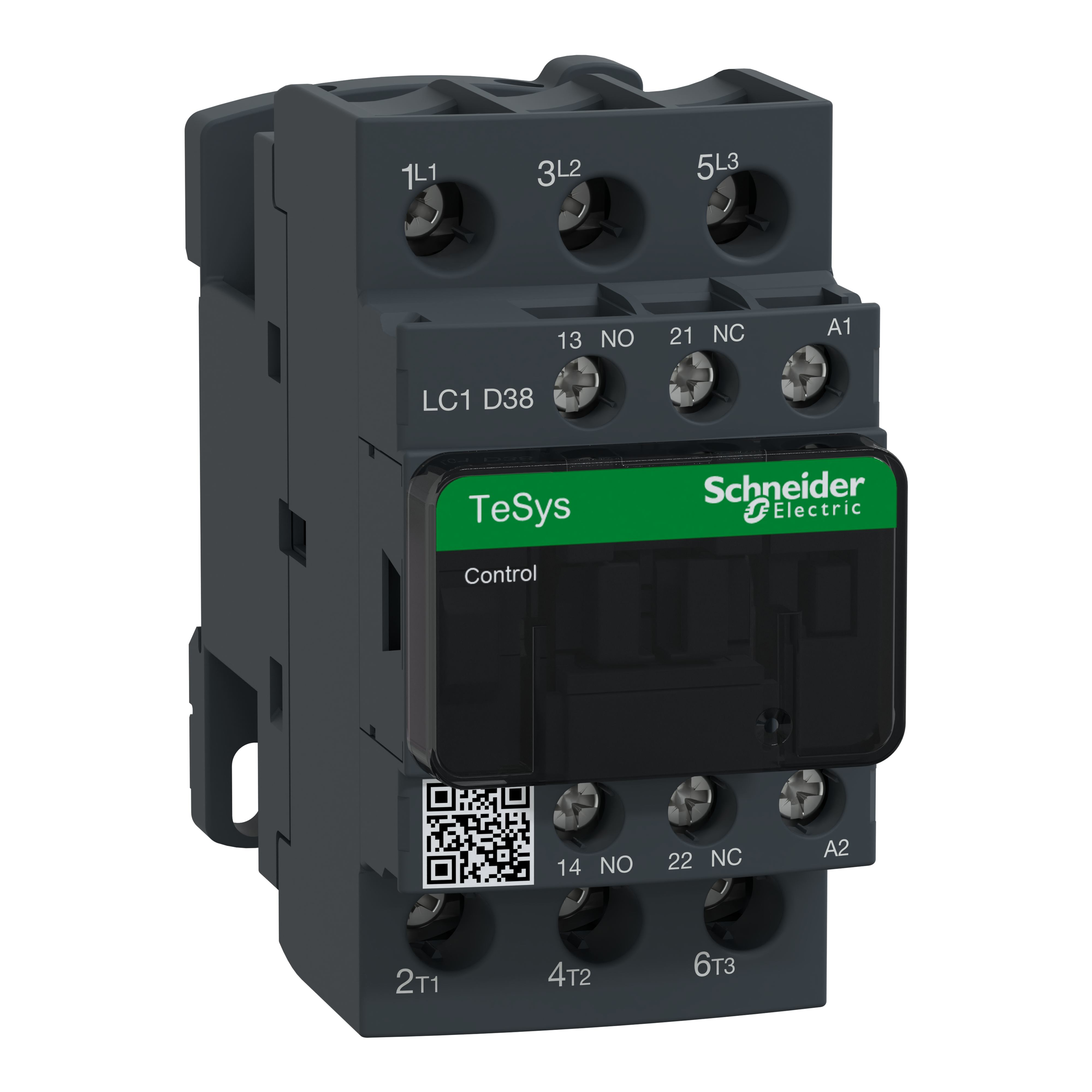

Stycznik mocy, TeSys Deca, I=38A [AC-3], cewka 42VAC, 50Hz, styk pom 1NO 1NC, zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D38D5 |
GTIN(EAN) | 3606489602581 |
Price unit | piece |
Catalog price | 836,71 zł (680,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 380 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 38 A |
Rated operation current Ie at AC-1, 400 V: | 50 A |
Rated operation power NEMA: | 14.9 kW |
Rated control supply voltage AC 50 Hz: | 42 - 42 V |
Rated operation power at AC-3, 400 V: | 18.5 kW |
Modular version: | yes |
Rated operation power at AC-4, 400 V: | 15 kW |
Rated operation current Ie at AC-4, 400 V: | 32 A |
