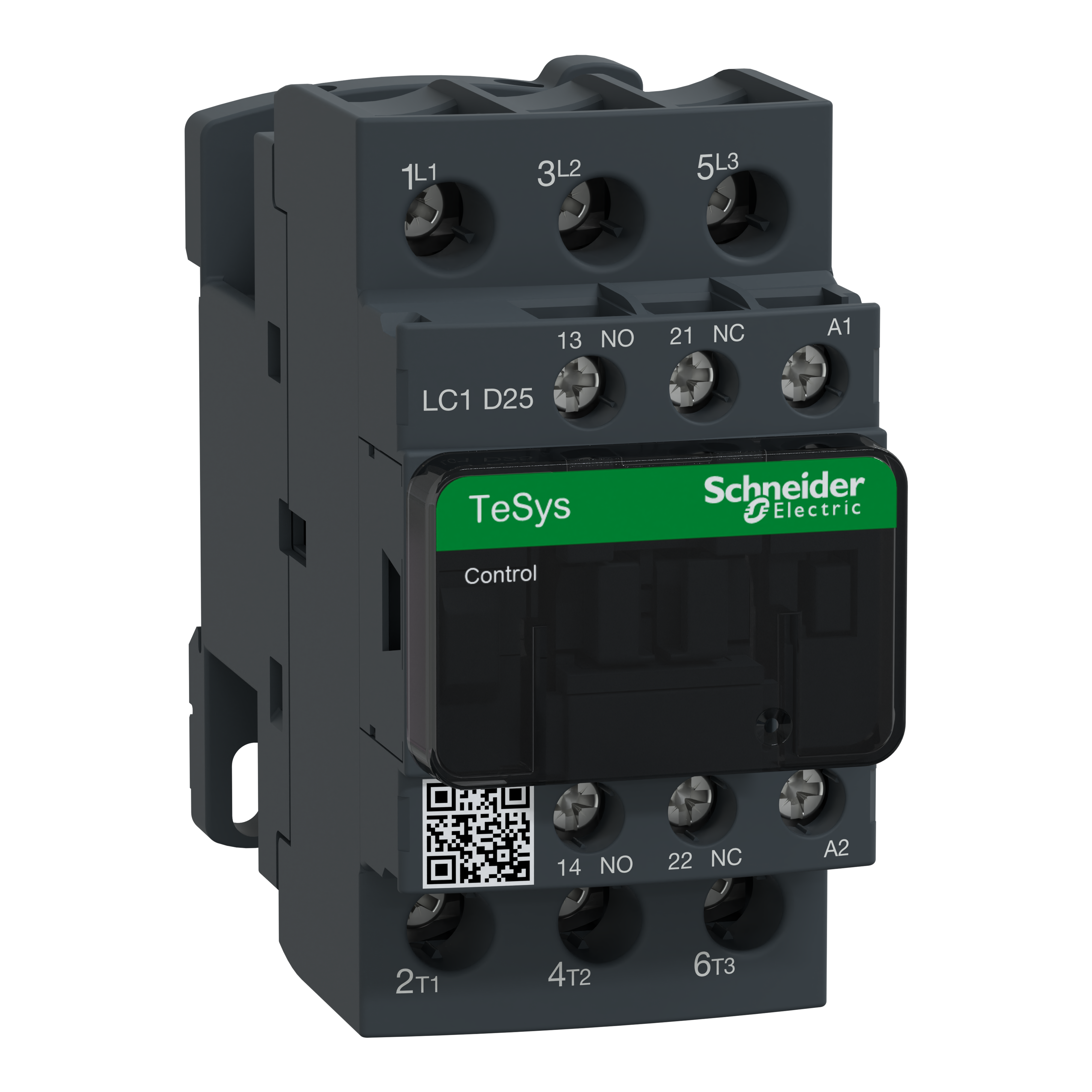

Stycznik mocy TeSys D AC3 25A 3P 1NO 1NC cewka 127VAC zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D25FC7 |
GTIN(EAN) | 3389110948554 |
Price unit | piece |
Catalog price | 506,44 zł (411,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 370 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Screw connection |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | AC |
Rated operation current Ie at AC-3, 400 V: | 25 A |
Rated operation current Ie at AC-1, 400 V: | 40 A |
Rated control supply voltage AC 60 Hz: | 127 - 127 V |
Rated control supply voltage AC 50 Hz: | 127 - 127 V |
Rated operation power at AC-3, 400 V: | 11 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 5.5 kW |
Rated operation current Ie at AC-4, 400 V: | 12 A |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-01 00:03:26 |
Files to download: | |
External links: |
