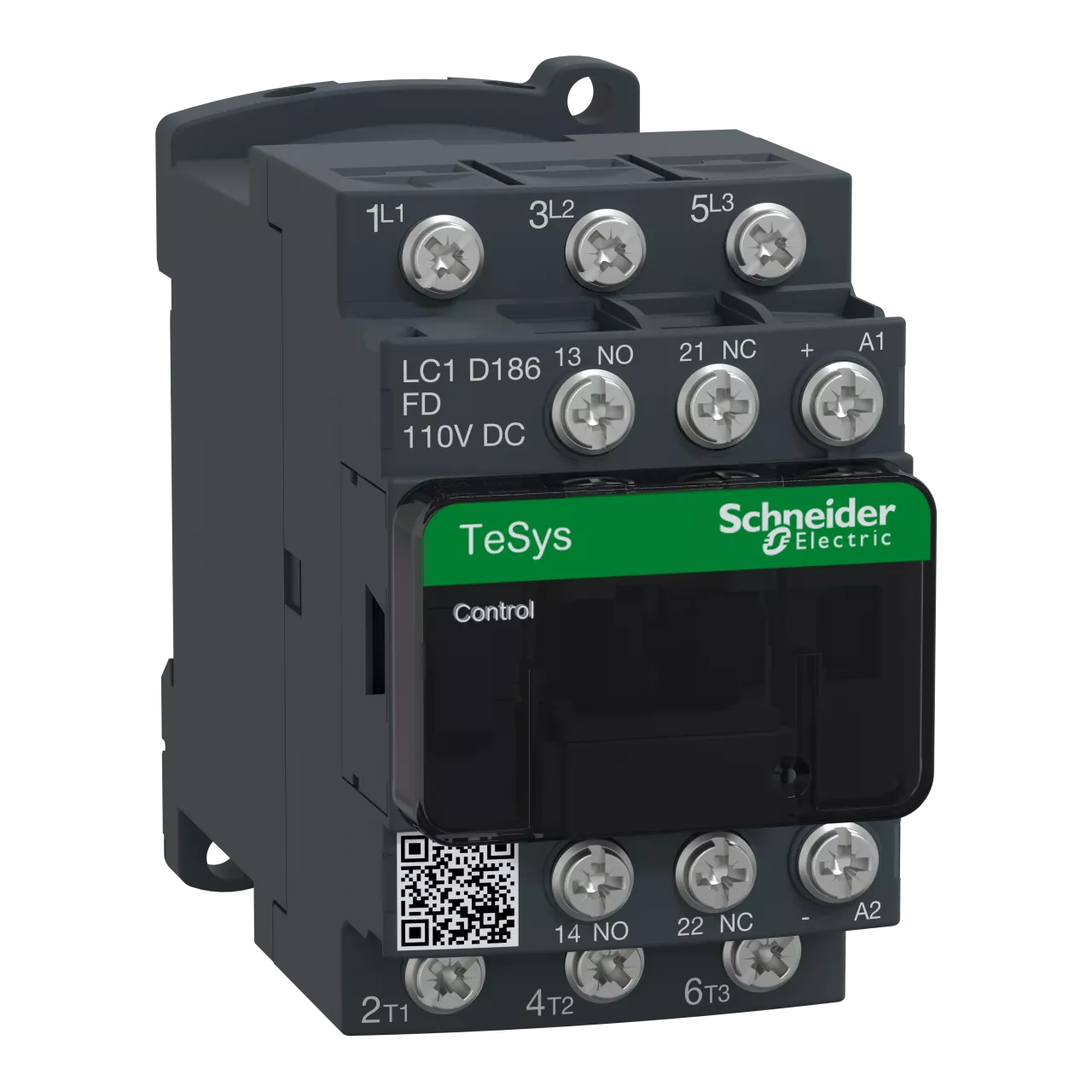

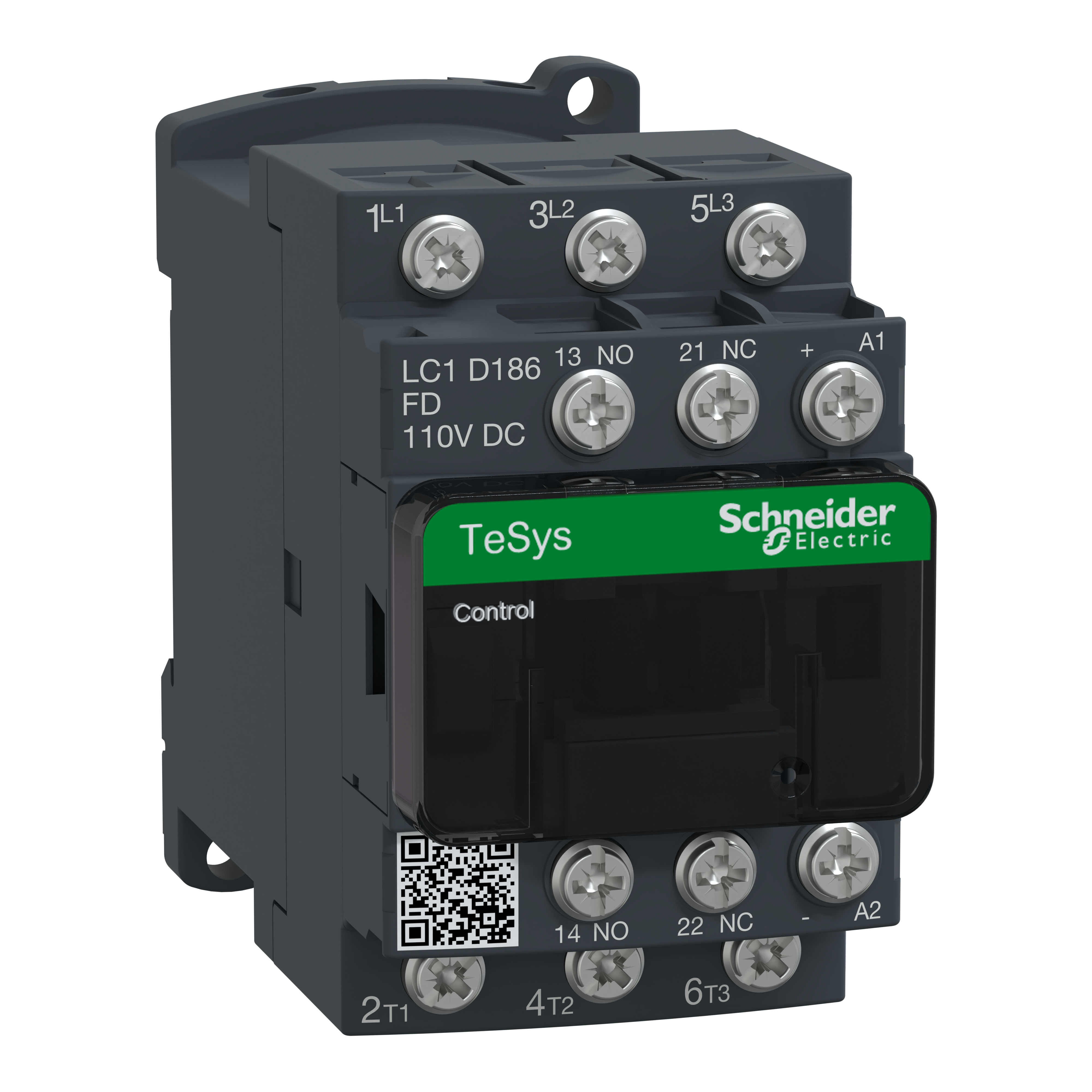

Stycznik mocy TeSys D AC3 18A 3P 1NO 1NC cewka 110VDC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | LC1D186FD |
GTIN(EAN) | 3389110807165 |
Price unit | piece |
Catalog price | 478,20 zł (388,78 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 510 g |
ETIM class: | Power contactor, AC switching |
Type of electrical connection of main circuit: | Other |
Number of normally open contacts as main contact: | 3 |
Number of normally closed contacts as main contact: | 0 |
Number of auxiliary contacts as normally open contact: | 1 |
Number of auxiliary contacts as normally closed contact: | 1 |
Voltage type for actuating: | DC |
Rated operation current Ie at AC-3, 400 V: | 18 A |
Rated operation current Ie at AC-1, 400 V: | 32 A |
Rated control supply voltage DC: | 110 - 110 V |
Rated operation power at AC-3, 400 V: | 7.5 kW |
Modular version: | no |
Rated operation power at AC-4, 400 V: | 4 kW |
Rated operation current Ie at AC-4, 400 V: | 9 A |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-01 00:03:26 |
Files to download: |
|
External links: |
