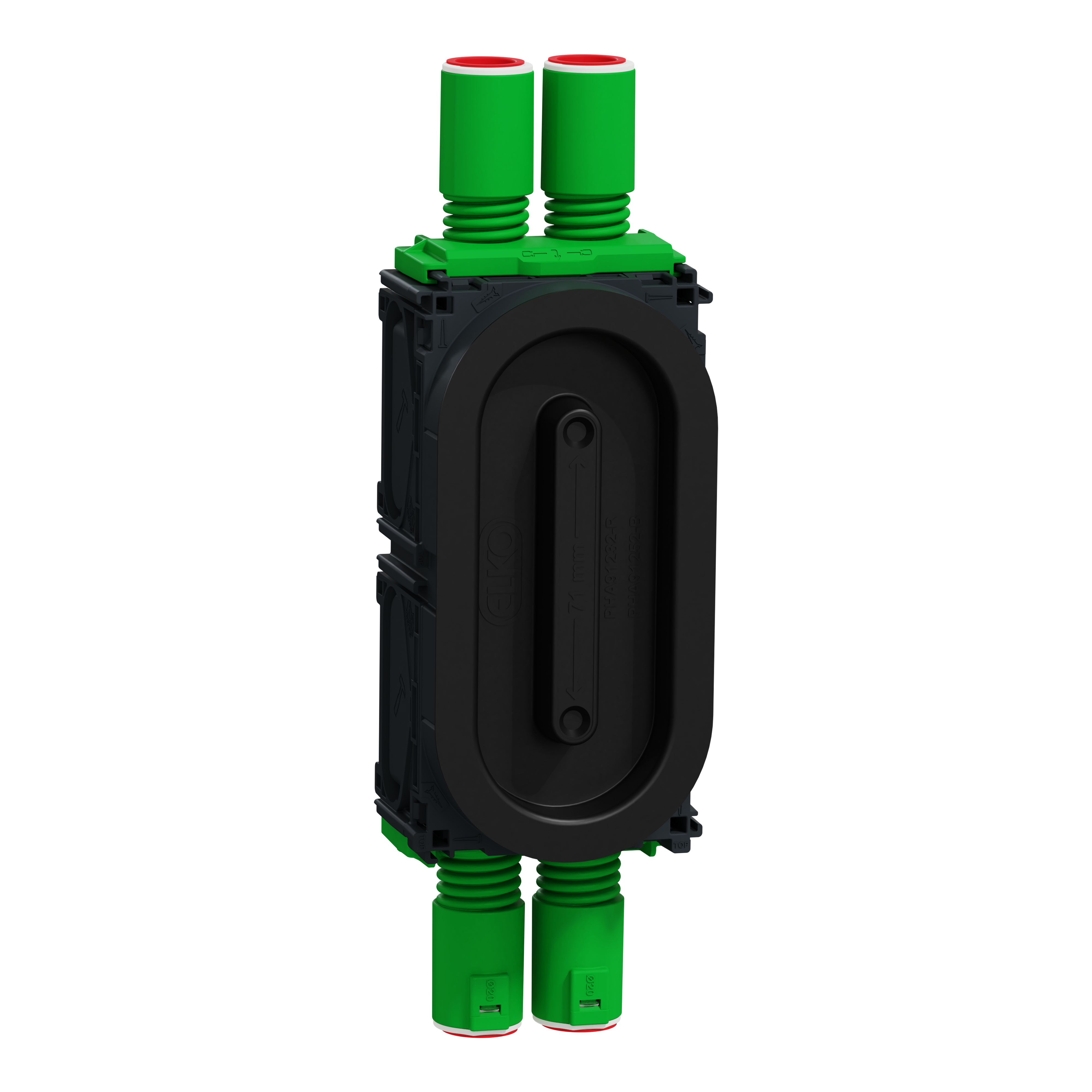

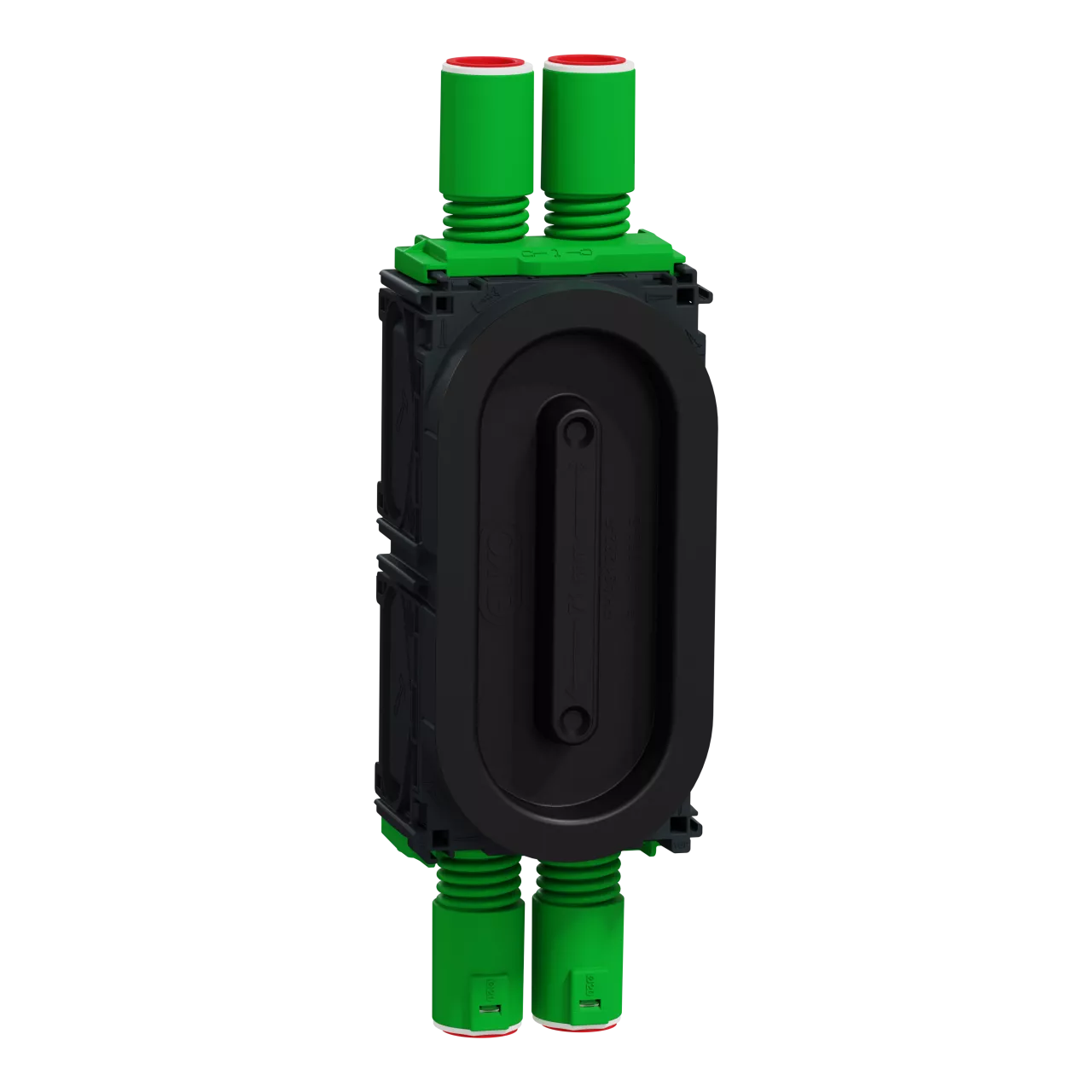

Multifix, puszka 2M, 12 mm, 4 elastyczne wejścia, płyta przeciwpożarowa
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | IMT80266 |
GTIN(EAN) | 3606481455703 |
Price unit | piece |
Catalog price | 176,30 zł (143,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 129,6 g |
ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
Suitable for wall/board thickness: | 12 - 12 mm |
Surface protection: | Untreated |
Couplable: | yes |
Cover attachment: | Snapped on |
Material: | Plastic |
Halogen free: | yes |
Air tight: | no |
With screening: | no |
Circuit integrity: | None |
Colour: | Grey |
Width: | 71 mm |
Construction type: | Device connection box (round/square) |
Model: | Double |
Pipe locking: | yes |
Sealable: | no |
Transparent cover: | no |
Mounting method: | Flush-mounted |
Cover model: | Suitable for snap-in connector (manufacturer specific) |
For tube diameter: | 16/20 mm |
Number of inlets: | 4 |
Number of included spouts: | 4 |
For number of electric fittings: | 2 |
Length: | 242 mm |
Housing feed-through by step membrane: | no |
Pipe locking optional: | no |
Provided with revolving ring: | no |
Housing feed-through by seal membrane: | no |
Housing feed-through by nozzle: | yes |
Nozzle: | None |
Special application: | Fire protection |
Degree of protection (IP): | IP30 |
Clamp position fixed: | no |
With screws: | yes |
Shape: | Oval |
Inlet from the rear: | yes |
Inner depth: | 55 mm |
Depth: | 57 - 57 mm |
Luminaire hook mounting: | no |
Mounting switching equipment: | Screw or spread out |
Housing feed-through by break-out opening: | yes |
Number of poles of the clamp: | 0 |
With nail lugs: | no |
