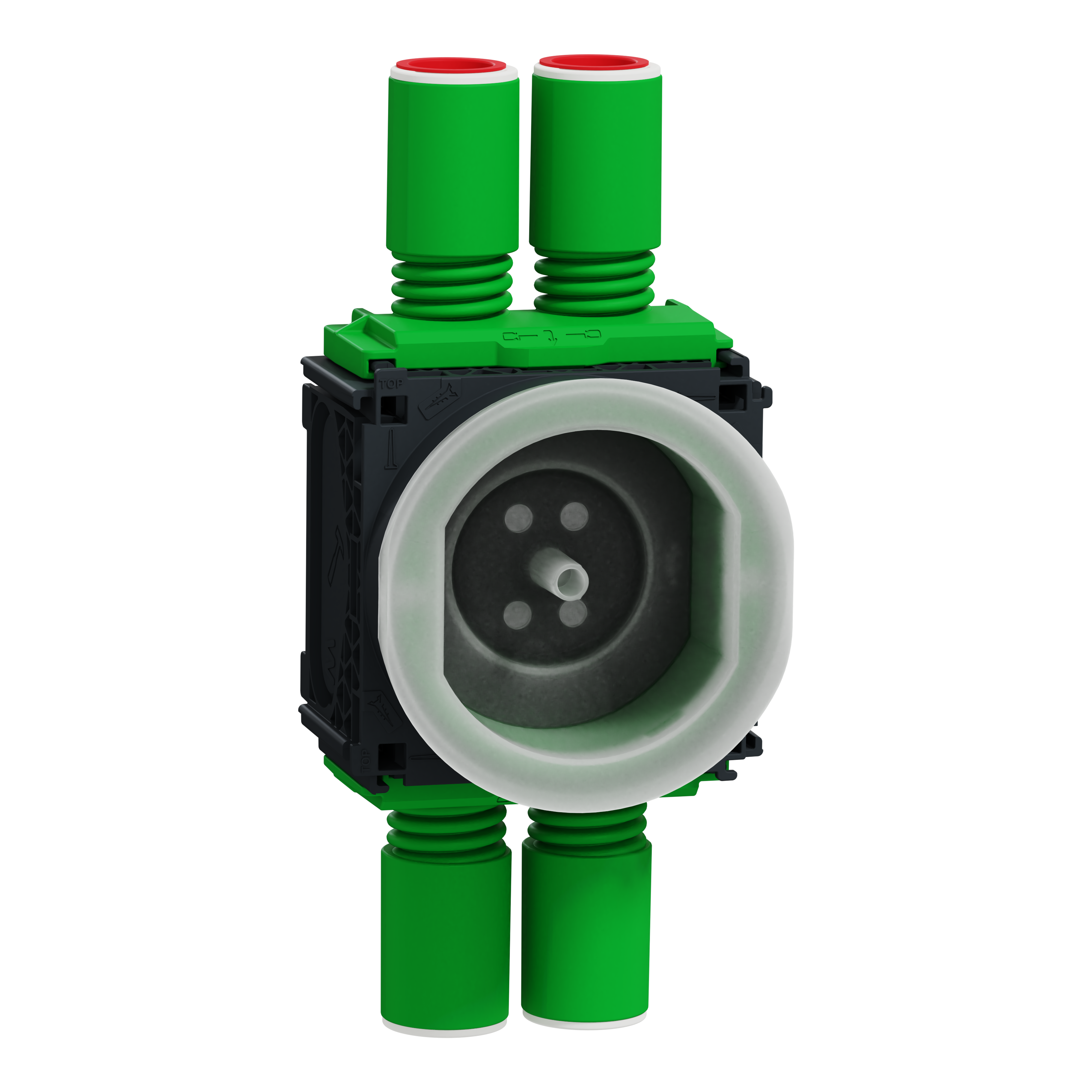

Multifix, puszka 1M, 32 mm, 4 elastyczne wejścia, z zatyczką
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | IMT80257 |
| GTIN(EAN) | 3606481455611 |
| Price unit | piece |
| Catalog price | 53,73 zł (43,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Dopasowana puszka montażowa może być wbudowana w powierzchnię ściany. Jej szerokość wynosi 75 mm, długość 175 mm, a głębokość 60 mm. Posiada 4 króćce kombinowane. Urządzenie jest sprzedawane w zestawie po 50 sztuk. Stopień ochrony IP tego urządzenia to IP30, co oznacza bardzo wysoki stopień ochrony. Skrzynka aparatu wykonana jest z PP (polipropylenu), dzięki czemu jest odporna i trwała. Urządzenie to jest zakwalifikowane jako ekologiczny produkt premium, z minimalnym użyciem substancji niebezpiecznych. Skrzynka na aparat nie zawiera SVHC (substancji wzbudzających szczególnie duże obawy) ani me tali ciężkich, dzięki czemu dba o środowisko i zdrowie użytkownika. Urządzenie nie zawiera rtęci.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 92,11 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Suitable for wall/board thickness: | 32 - 32 mm |
| Surface protection: | Untreated |
| Couplable: | yes |
| Cover attachment: | Snapped on |
| Material: | Plastic |
| Halogen free: | yes |
| Air tight: | no |
| With screening: | no |
| Circuit integrity: | None |
| Colour: | Grey |
| Width: | 71 mm |
| Construction type: | Device connection box (round/square) |
| Model: | Single |
| Pipe locking: | yes |
| Sealable: | no |
| Transparent cover: | no |
| Mounting method: | Concrete building |
| Cover model: | Suitable for snap-in connector (manufacturer specific) |
| For tube diameter: | 16/20 mm |
| Number of inlets: | 4 |
| Number of included spouts: | 4 |
| For number of electric fittings: | 1 |
| Length: | 171 mm |
| Housing feed-through by step membrane: | no |
| Pipe locking optional: | no |
| Provided with revolving ring: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | yes |
| Nozzle: | None |
| Special application: | Other |
| Degree of protection (IP): | IP30 |
| Clamp position fixed: | no |
| With screws: | yes |
| Shape: | Round |
| Inlet from the rear: | yes |
| Inner depth: | 55 mm |
| Depth: | 58 - 58 mm |
| Luminaire hook mounting: | no |
| Mounting switching equipment: | Screw or spread out |
| Diameter: | 73 mm |
| Housing feed-through by break-out opening: | yes |
| Number of poles of the clamp: | 0 |
| With nail lugs: | no |
