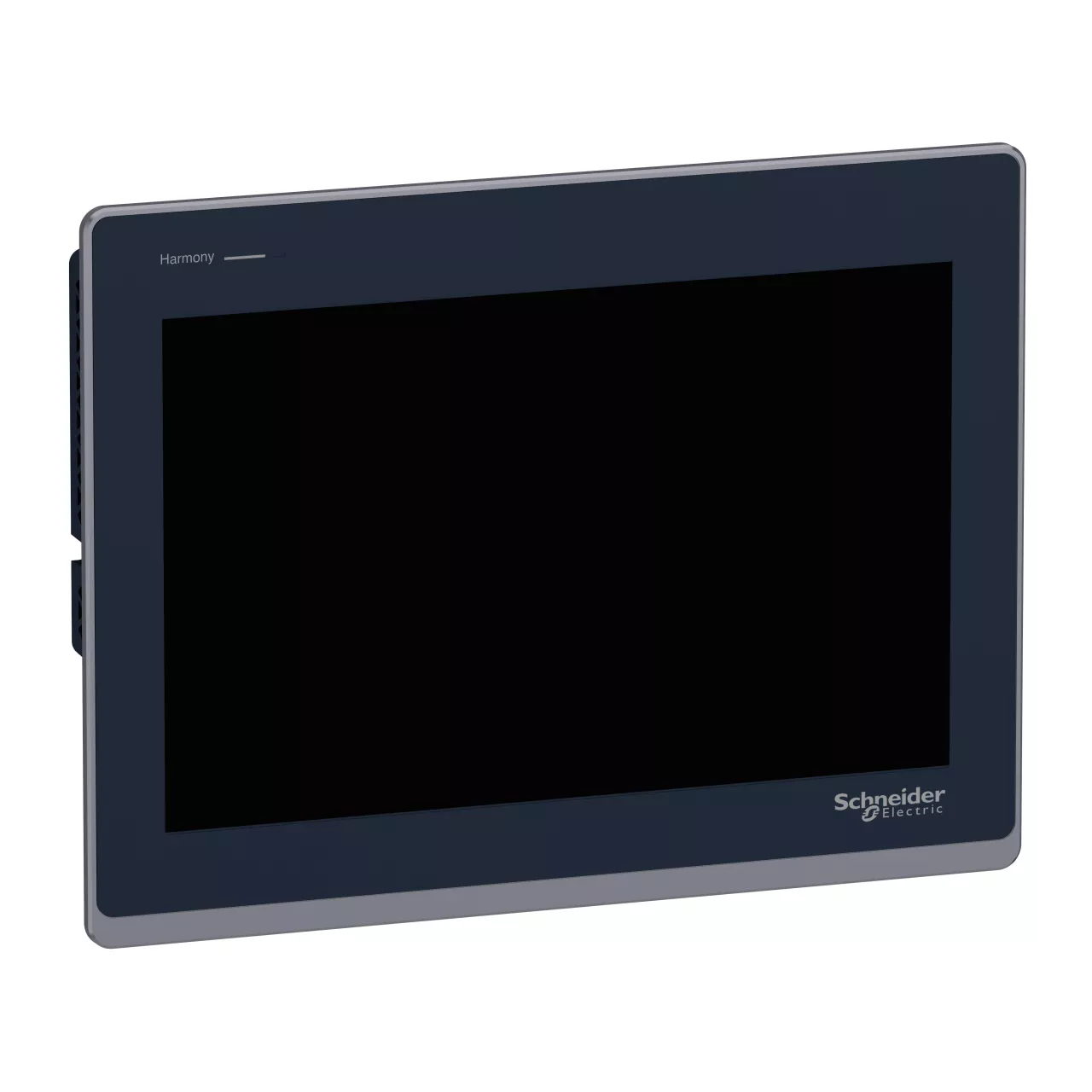

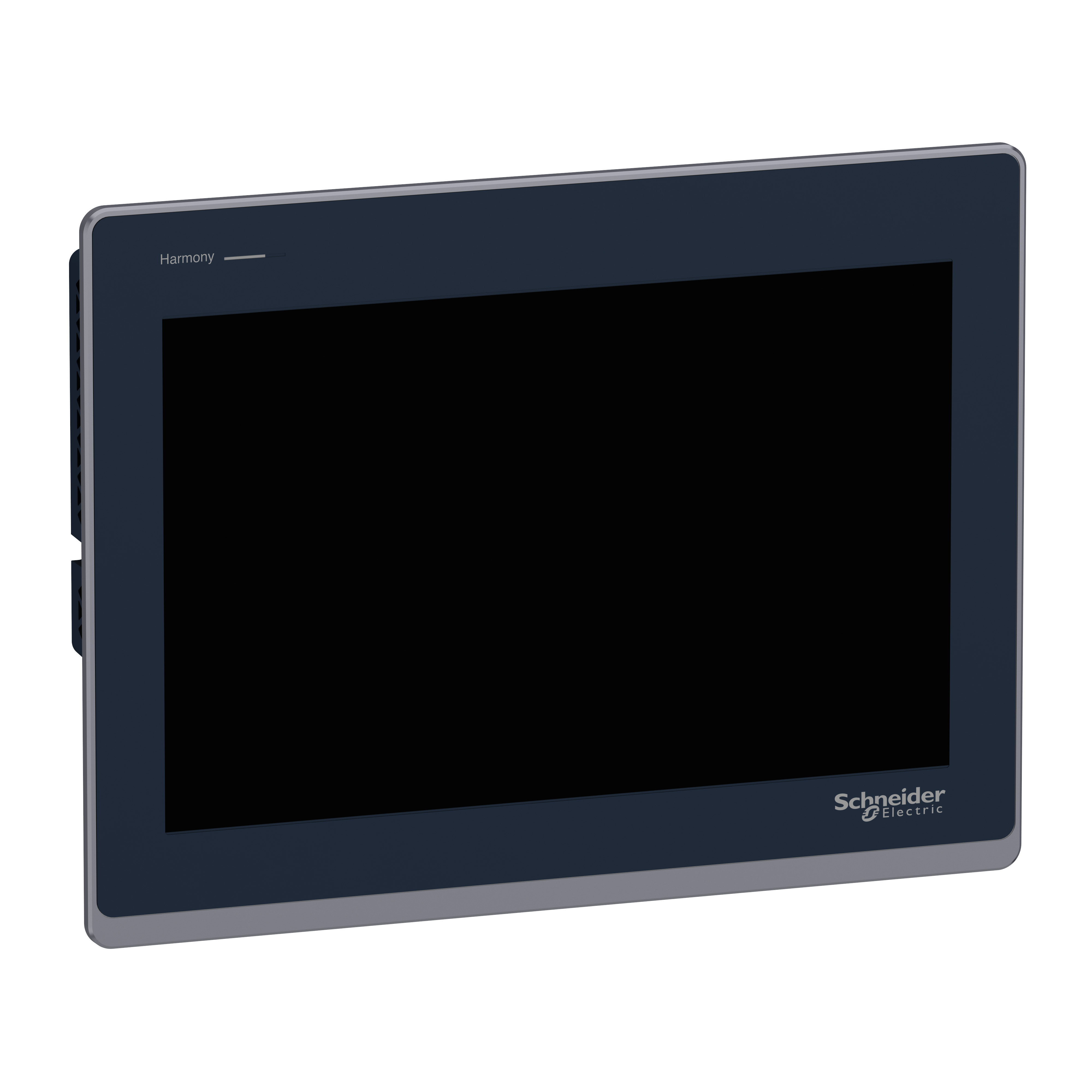

Panel Operatorski ST6 12W 1280 x 800
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | HMIST6600 |
GTIN(EAN) | 3606489523404 |
Price unit | piece |
Catalog price | 12 147,48 zł (9 876,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
A cost effective Podstawowy panel HMI, delivering an intuitive user experience utilizing the latest software and visualisation innovations from EcoStruxure Operator Terminal Expert
Additional features:
Information | Value |
---|---|
Gross weight: | 2,324 kg |
ETIM class: | Graphic panel |
Supporting protocol for LON: | no |
Radio standard WLAN 802.11: | no |
Radio standard Bluetooth: | no |
Colour display: | yes |
Degree of protection (IP), front side: | IP67 |
Radio standard GPRS: | no |
Radio standard GSM: | no |
Radio standard UMTS: | no |
Type of display: | TFT |
Supporting protocol for SUCONET: | no |
Supporting protocol for KNX: | no |
Supply voltage DC: | 24 - 24 V |
Supporting protocol for Data-Highway: | no |
Supporting protocol for Modbus: | yes |
Supporting protocol for DeviceNet: | no |
Supporting protocol for PROFIBUS: | no |
Supporting protocol for ASI: | no |
Supporting protocol for CAN: | no |
Supporting protocol for PROFINET CBA: | no |
Supporting protocol for Foundation Fieldbus: | no |
Supporting protocol for EtherNet/IP: | yes |
Voltage type (supply voltage): | DC |
Supporting protocol for SafetyBUS p: | no |
Supporting protocol for PROFIsafe: | no |
Number of HW-interfaces RS-422: | 1 |
Number of HW-interfaces USB: | 2 |
Number of HW-interfaces serial TTY: | 0 |
Supporting protocol for SERCOS: | no |
Number of HW-interfaces RS-232: | 1 |
Number of HW-interfaces industrial Ethernet: | 0 |
