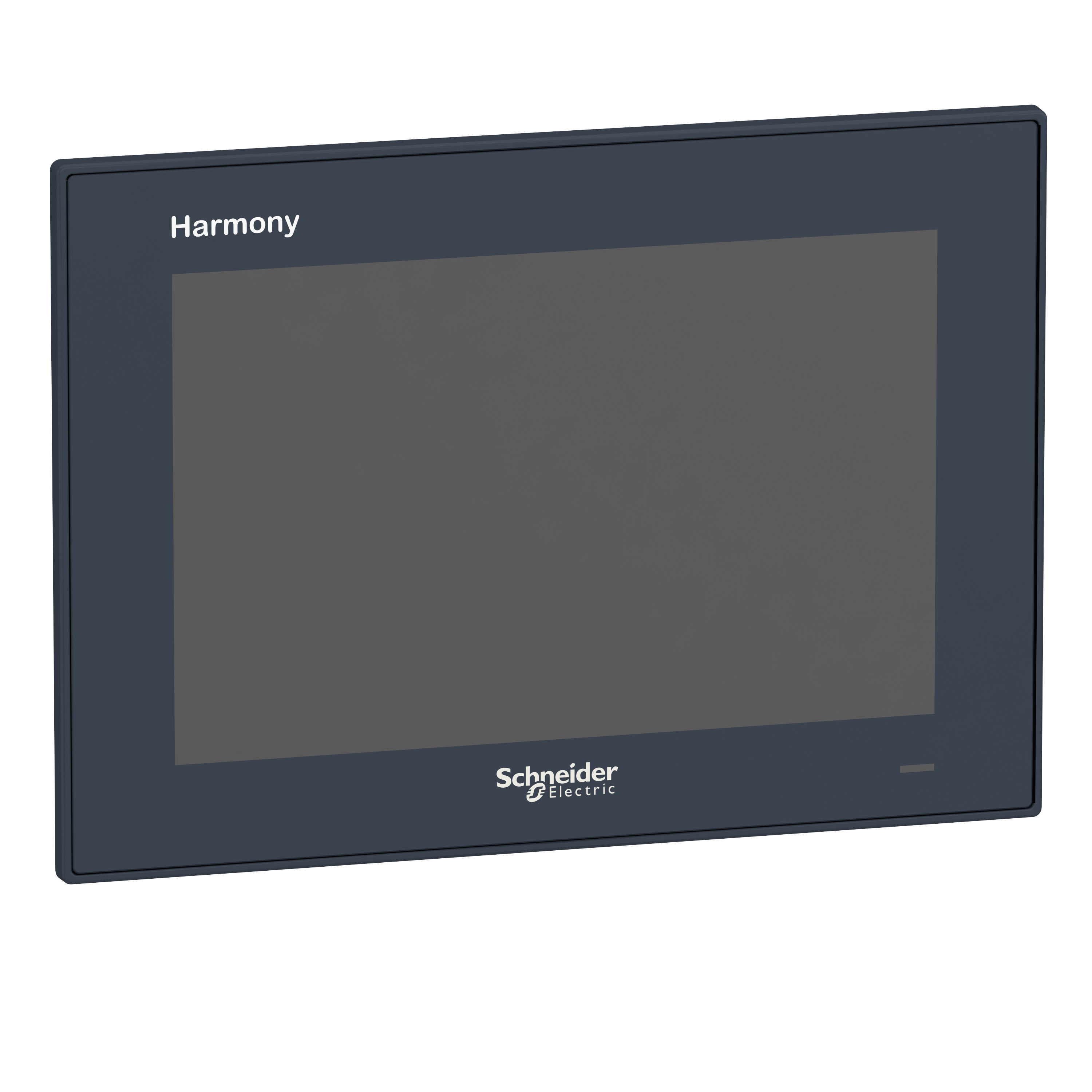

Harmony iPC, ekran wielodotykowy, 10''
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | HMIPSOC552D1W01 |
GTIN(EAN) | 3606480853371 |
Price unit | piece |
Catalog price | 16 227,00 zł (13 192,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 2,6 kg |
ETIM class: | Panel PC |
Number of interfaces PROFINET: | 0 |
Number of HW-interfaces parallel: | 0 |
Supporting protocol for SERCOS: | no |
Number of HW-interfaces other: | 1 |
Number of HW-interfaces serial TTY: | 0 |
With touch screen: | yes |
Number of HW-interfaces USB: | 2 |
Number of HW-interfaces wireless: | 0 |
Number of buttons with LED: | 0 |
Radio standard GPRS: | no |
Supporting protocol for INTERBUS-Safety: | no |
Type of display: | TFT |
Supporting protocol for AS-Interface Safety at Work: | no |
Degree of protection (IP), front side: | IP66 |
Radio standard GSM: | no |
Radio standard UMTS: | no |
Supporting protocol for DeviceNet Safety: | no |
Supporting protocol for EtherNet/IP: | no |
Supporting protocol for Foundation Fieldbus: | no |
Operating temperature: | 0 - 55 °C |
Screen diagonal: | 10.1 cal |
Number of system buttons: | 0 |
With DVD-drive: | yes |
Supporting protocol for SafetyBUS p: | no |
Voltage type (supply voltage): | AC/DC |
Max. main memory: | 4000 MB/s |
With CD-ROM drive: | no |
With other storage media: | no |
Supporting protocol for PROFINET CBA: | no |
With DVD RW drive: | yes |
Supporting protocol for PROFINET IO: | no |
With floppy disc drive: | no |
Supporting protocol for PROFIsafe: | no |
Radio standard Bluetooth: | no |
Supporting protocol for ASI: | no |
Supporting protocol for PROFIBUS: | no |
Radio standard WLAN 802.11: | no |
Supply voltage AC 50 Hz: | 110 - 240 V |
Front built-in possible: | yes |
Supply voltage AC 60 Hz: | 110 - 240 V |
Customer individual configuration: | yes |
Number of pixels, horizontal: | 1280 |
Supporting protocol for KNX: | no |
Number of free AGP-slots: | 0 |
With hard disc: | no |
Supporting protocol for CAN: | no |
Supporting protocol for INTERBUS: | no |
IO link master: | no |
Supporting protocol for DeviceNet: | no |
Number of free PCMCIA-slots: | 0 |
With CD-RW drive: | no |
Rail mounting possible: | no |
Supporting protocol for Modbus: | no |
Suitable for safety functions: | yes |
Number of free PCI-slots: | 1 |
Supporting protocol for Data-Highway: | no |
Number of free ISA-slots: | 0 |
Mounting type, gallows mounting: | no |
Supply voltage DC: | 24 - 24 V |
Preinstalled operating system: | None |
Rack-assembly possible: | no |
Supporting protocol for LON: | no |
Mounting type, table foot: | no |
Number of HW-interfaces SCSI: | 0 |
Number of HW-interfaces PS2: | 0 |
Supporting protocol for other bus systems: | yes |
Supporting protocol for SUCONET: | no |
Number of HW-interfaces RS-422: | 1 |
Mouse-cursor control integrated: | no |
Wall mounting/direct mounting: | yes |
Number of HW-interfaces RS-485: | 1 |
Number of pixels, vertical: | 800 |
Number of HW-interfaces industrial Ethernet: | 2 |
Integrated keyboard: | no |
Number of function buttons: | 0 |
Number of HW-interfaces RS-232: | 1 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-09-23 00:04:41 |
Files to download: | |
External links: |
