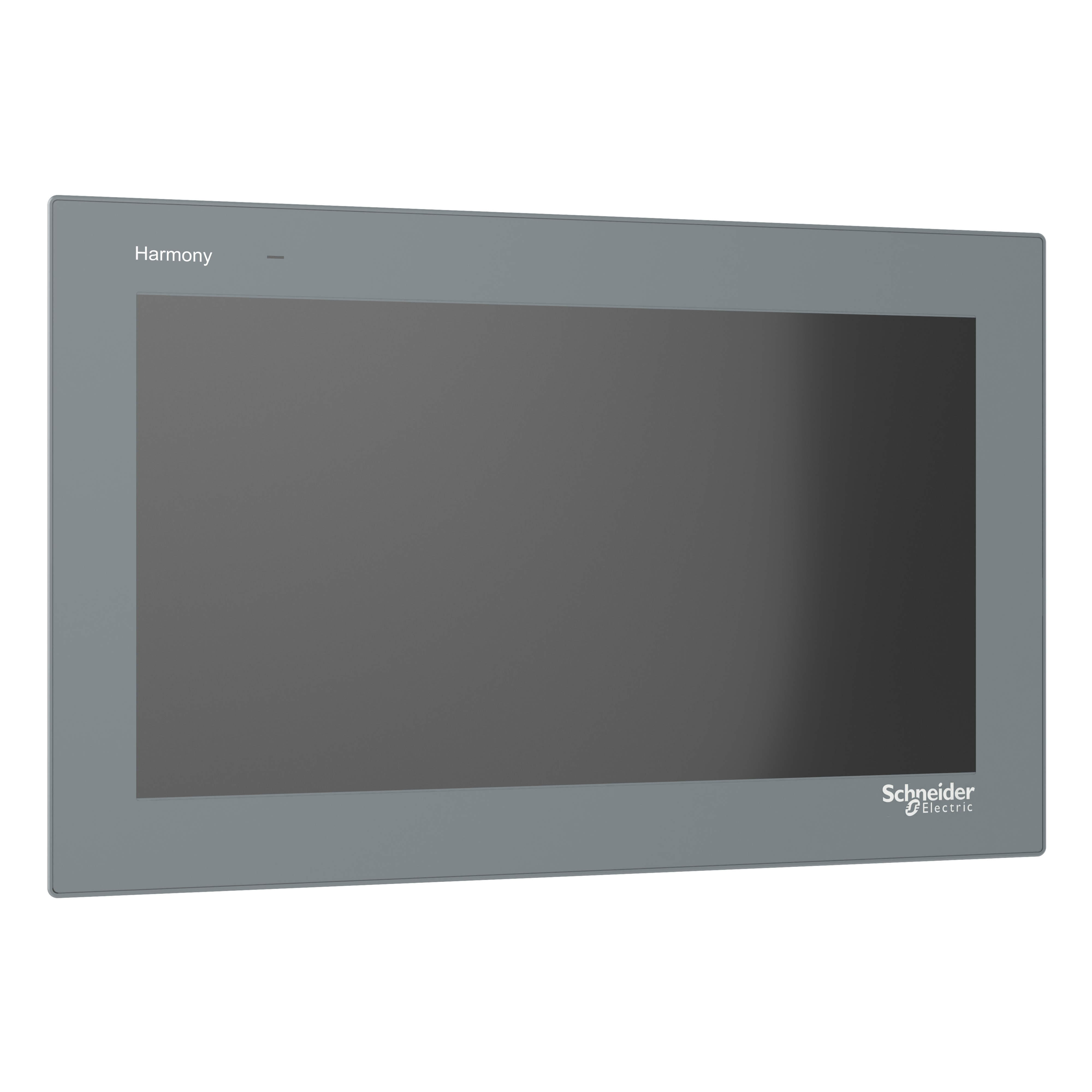

Panel dotykowy HMI 15"W, Easy Ethernet model
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | HMIET6700 |
| GTIN(EAN) | 3606481033482 |
| Price unit | piece |
| Catalog price | 9 423,30 zł (7 661,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
HMIET6700 to niezbędny panel dotykowy z gamy Easy Harmony ET6 firmy Schneider Electric. Ten jednodotykowy rezystancyjny panel HMI Ethernet ma wysoką rozdzielczość i więcej kolorów. Ten interfejs HMI ma szerokość 15,6 cala, 16 milionów kolorów i rozdzielczość 1366 x 768 pikseli (FWXGA). Jest zasilany przez oprogramowanie Vijeo Designer Basic, które zapewnia intuicyjną obsługę. Posiada procesor ARM Cortex-A8 800 MHz, 256 MB pamięci systemowej i aplikacji, 128 KB pamięci nieulotnej. Ten HMI ET6 obsługuje port Ethernet, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 typu A i 1x port USB 2.0 Micro-B. Jego wymiary to 412 mm (szerokość) x 268 mm (wysokość) x 50 mm (głębokość) i waży 2,52 kg. Jest przeznaczony dla przemysłów takich jak pakowanie, HVAC, pompy, elektronika, akumulatory, obrabiarki i obróbka materiałów itp. Jest zgodny z normami takimi jak EN (61000-6-4, 61000-6-2, 61131-2), UL 61010- 2-201, CSA C22.2 nr 61010-2-201 oraz posiada certyfikaty takie jak UL, CE, KC, EAC, China RoHS, REACH. Akcesoria konserwacyjne (śruba montażowa, złącze zasilania, akumulator itp.) oraz opcje zewnętrzne (kabel do pobierania USB, przedłużacz USB, folia ochronna na ekran itp.) są dostępne z HMI ET6. Przeznaczony jest do montażu panelowego za pomocą 4 lub 6 wkrętów mocujących (ilość wkrętów zależy od wielkości ekranu). Ta gama została zaprojektowana z ekranem o wysokiej rozdzielczości, większą liczbą kolorów i obsługą sieci Ethernet, aby umożliwić producentom OEM optymalizację projektu HMI i inwestycji Różne stopnie ochrony to IP65F, NEMA Type4 do użytku w pomieszczeniach, w obudowie.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 3,397 kg |
| ETIM class: | Graphic panel |
| Number of pixels, horizontal: | 1366 |
| Height of the front: | 268 mm |
| Width of the front: | 412 mm |
| Suitable for safety functions: | yes |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| Number of colours of the display: | 16000000 |
| IO link master: | no |
| Colour display: | yes |
| Degree of protection (IP), front side: | IP65 |
| Screen diagonal: | 15 cal |
| With SW interfaces: | no |
| Operating temperature: | 0 - 50 °C |
| Useful project memory/user memory: | 1000000 kB |
| With message indication: | no |
| Process value representation (output) possible: | no |
| With message system (incl. buffer and confirmation): | no |
| With recipes: | no |
| Process default value (input) possible: | no |
| With printer output: | no |
| Radio standard GPRS: | no |
| Number of password levels: | 0 |
| Radio standard GSM: | no |
| Additional software components, loadable: | no |
| Radio standard UMTS: | no |
| Number of online languages: | 0 |
| Type of display: | TFT |
| Number of pixels, vertical: | 768 |
| Number of grey-scales/blue-scales of display: | 16 |
| Number of function buttons, programmable: | 0 |
| With alpha numeric keyboard: | no |
| With numeric keyboard: | no |
| Wall mounting/direct mounting: | yes |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Built-in depth: | 50 mm |
| Supporting protocol for KNX: | no |
| Supply voltage DC: | 0 - 24 V |
| Supporting protocol for Data-Highway: | no |
| Supply voltage AC 50 Hz: | 0 - 24 V |
| Supporting protocol for Modbus: | no |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | no |
| Supporting protocol for TCP/IP: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Number of system buttons: | 0 |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Supporting protocol for EtherNet/IP: | no |
| Voltage type (supply voltage): | DC |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Touch technology: | Resistive touch |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Number of buttons with LED: | 0 |
| Supporting protocol for INTERBUS-Safety: | no |
| Degree of protection (NEMA), front side: | 13 |
| Number of HW-interfaces RS-485: | 1 |
| Number of HW-interfaces RS-422: | 1 |
| Number of HW-interfaces USB: | 2 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Number of HW-interfaces wireless: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 1 |
| Number of HW-interfaces industrial Ethernet: | 1 |
