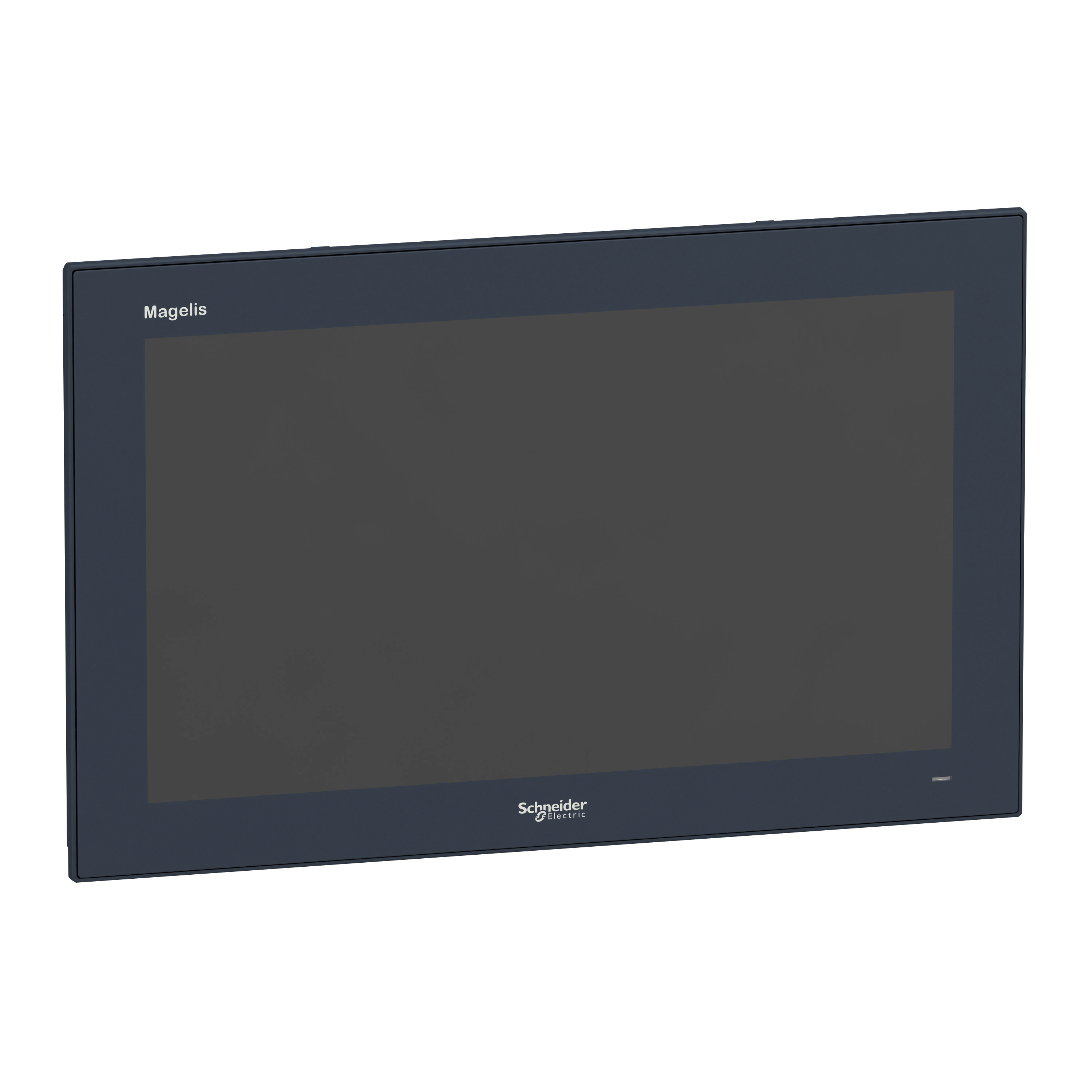

Ekran PC W19'' do HMIBM
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | HMIDM9521 |
| GTIN(EAN) | 3606480853685 |
| Price unit | piece |
| Catalog price | 8 045,75 zł (6 541,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,2 kg |
| ETIM class: | Industrial PC |
| With other storage media: | yes |
| Number of free AGP-slots: | 0 |
| Number of free ISA-slots: | 0 |
| Number of free PCI-slots: | 0 |
| Number of other free slots: | 0 |
| With optical drive: | no |
| Number of free PCMCIA-slots: | 0 |
| Suitable for safety functions: | no |
| Supporting protocol for LON: | no |
| Radio standard WLAN 802.11: | no |
| Radio standard Bluetooth: | no |
| With sound card: | no |
| IO link master: | no |
| With graphic card: | no |
| Width: | 488.3 mm |
| Max. main memory: | 0 MB/s |
| With floppy disc drive: | no |
| Operating temperature: | 0 - 55 °C |
| Radio standard GPRS: | no |
| Radio standard GSM: | no |
| Radio standard UMTS: | no |
| Wall mounting/direct mounting: | yes |
| Supporting protocol for SUCONET: | no |
| Supporting protocol for other bus systems: | no |
| Preinstalled operating system: | None |
| Rack-assembly possible: | no |
| With hard disc: | no |
| Supply voltage DC: | 0 - 24 V |
| Supporting protocol for KNX: | no |
| Supply voltage AC 60 Hz: | 100 - 240 V |
| Supporting protocol for Data-Highway: | no |
| Front built-in possible: | yes |
| Supply voltage AC 50 Hz: | 100 - 240 V |
| Supporting protocol for Modbus: | yes |
| Supporting protocol for DeviceNet: | no |
| Rail mounting possible: | no |
| Supporting protocol for PROFIBUS: | no |
| Supporting protocol for ASI: | no |
| Degree of protection (IP): | IP40 |
| Supporting protocol for INTERBUS: | no |
| Supporting protocol for CAN: | no |
| Depth: | 28 mm |
| Supporting protocol for AS-Interface Safety at Work: | no |
| Supporting protocol for PROFINET CBA: | no |
| Supporting protocol for Foundation Fieldbus: | no |
| Voltage type (supply voltage): | AC/DC |
| Supporting protocol for EtherNet/IP: | no |
| Supporting protocol for SafetyBUS p: | no |
| Supporting protocol for PROFIsafe: | no |
| Supporting protocol for PROFINET IO: | no |
| Supporting protocol for DeviceNet Safety: | no |
| Construction type housing: | Other |
| Supporting protocol for INTERBUS-Safety: | no |
| Height: | 309 mm |
| Number of HW-interfaces RS-485: | 1 |
| Number of storage media bays: | 0 |
| Number of HW-interfaces RS-422: | 1 |
| Number of HW-interfaces USB: | 2 |
| Number of HW-interfaces serial TTY: | 0 |
| Number of HW-interfaces other: | 1 |
| Number of HW-interfaces wireless: | 0 |
| Number of HW-interfaces parallel: | 0 |
| Supporting protocol for SERCOS: | no |
| Number of interfaces PROFINET: | 0 |
| Number of HW-interfaces RS-232: | 1 |
| Degree of protection (NEMA): | 4X |
| Number of HW-interfaces industrial Ethernet: | 2 |
| Suitable for operating system Windows 8: | no |
| Suitable for operating system Windows 7: | no |
| Suitable for operating system Windows 9x: | no |
| Suitable for operating system Windows XP: | no |
| Suitable for operating system Windows ME: | no |
| Suitable for operating system Windows 2000: | no |
| Suitable for other operating system: | yes |
| Suitable for operating system Windows CE: | no |
| Suitable for operating system Linux: | no |
| Suitable for operating system Windows 2003 Server: | no |
| Suitable for operating system Windows Vista: | no |
