Blok styków bezzwłocznych montaż boczny 2NO zaciski skrzynkowe
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GVAN20 |
GTIN(EAN) | 3389110343502 |
Price unit | piece |
Catalog price | 66,47 zł (54,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

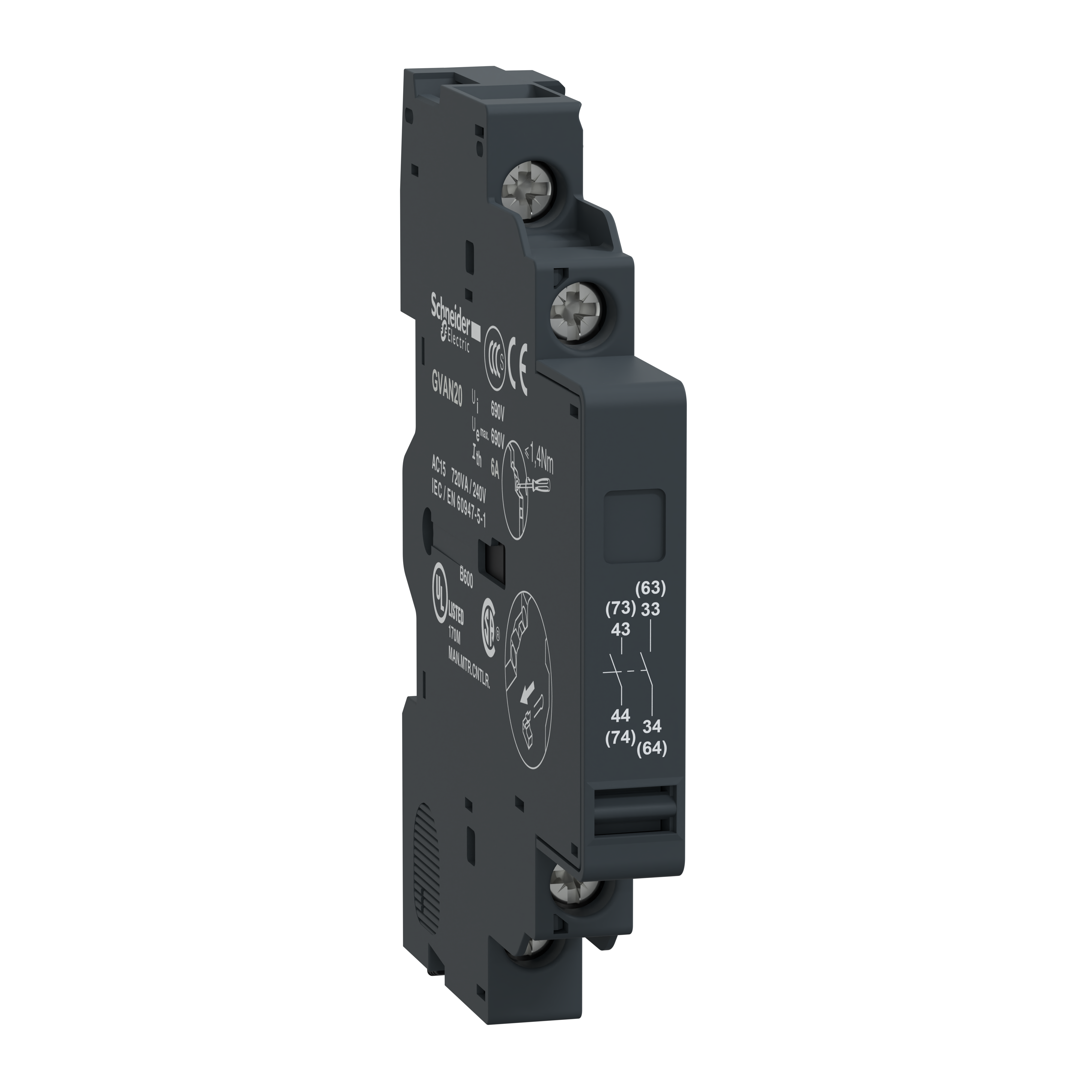

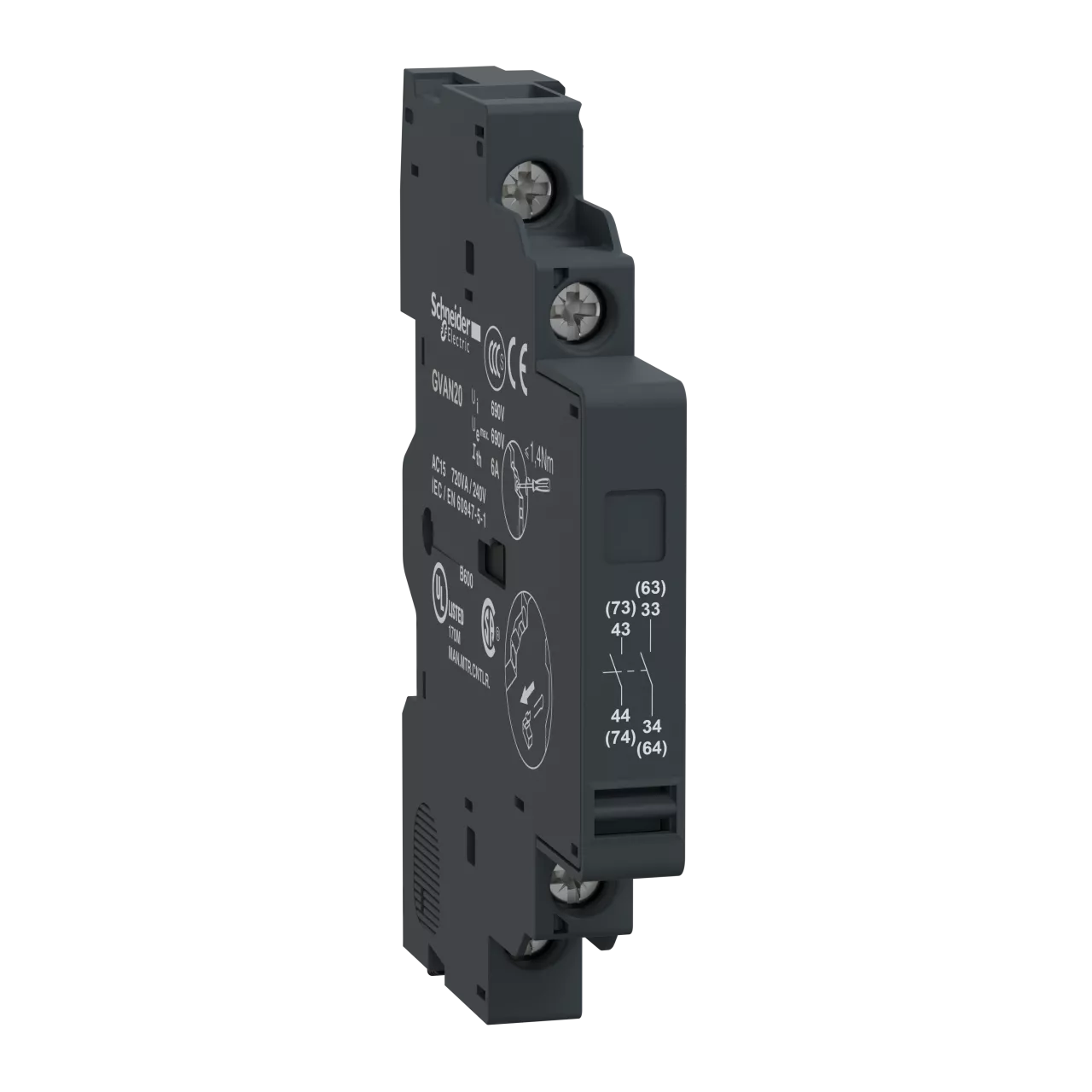

TeSys GV auxiliary contact block, instantaneous auxiliary contacts 2NO, for motor circuit breakers GV2 and GV3. For AC operation up to 6A/690V and DC operation up to 6A/240V DC. To be installed on left-hand LH side of the circuit breaker, 2 blocks mounting possible, connection by screw clamp terminals. Multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Additional features:
Information | Value |
---|---|
Gross weight: | 41 g |
ETIM class: | Auxiliary contact block |
Rated operation current Ie at AC-15, 230 V: | 3.3 A |
Model: | Clip-on |
Type of electric connection: | Screw connection |
Mounting method: | Side mounting |
Number of fault-signal switches: | 0 |
Lamp holder: | None |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally open contact: | 2 |
Number of contacts as normally closed contact: | 0 |
