Styk pomocniczy bezzwłoczny 1NC i sygnalizacji awarii 1NO
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GVAD0110 |
| GTIN(EAN) | 3389110343533 |
| Price unit | piece |
| Catalog price | 99,42 zł (80,83 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

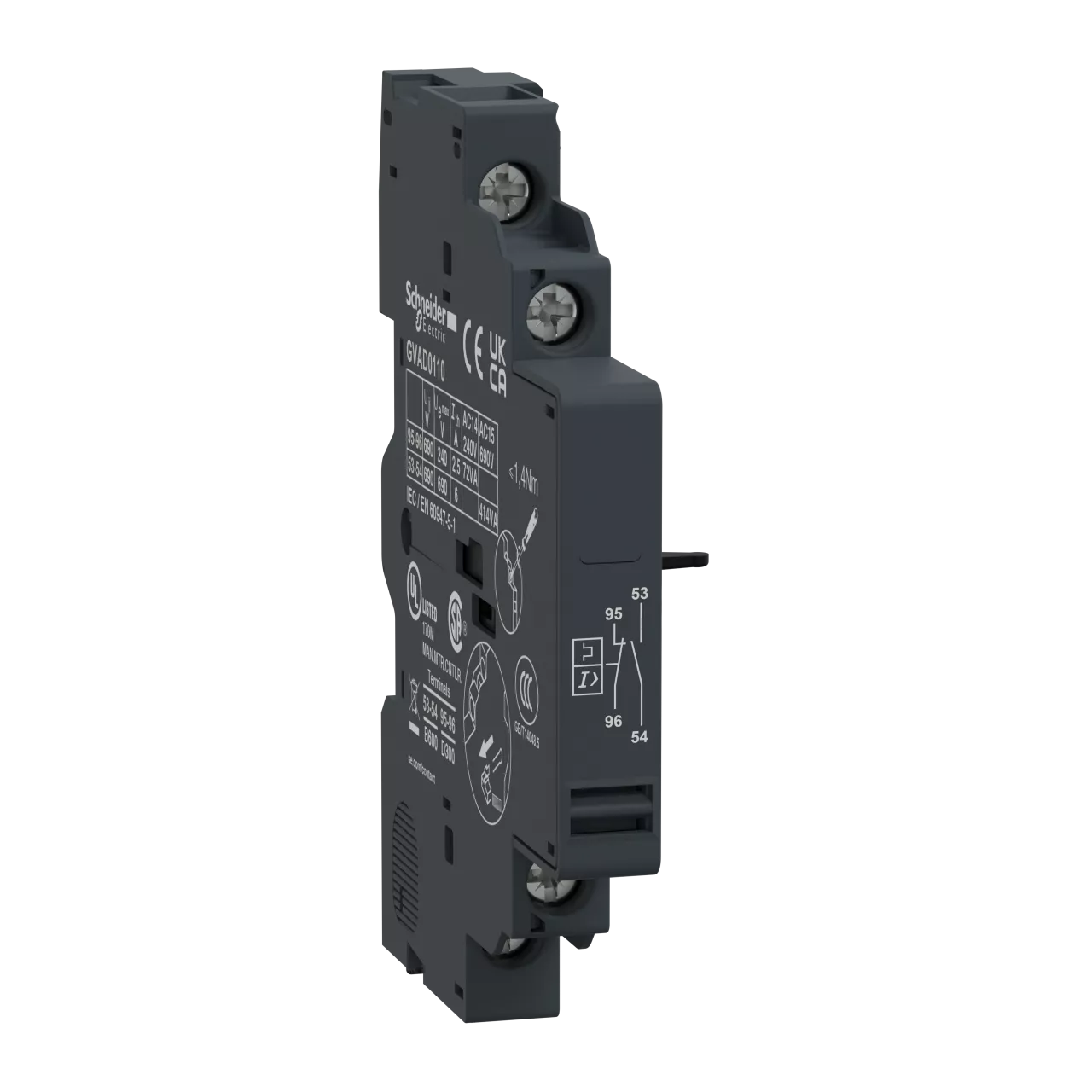

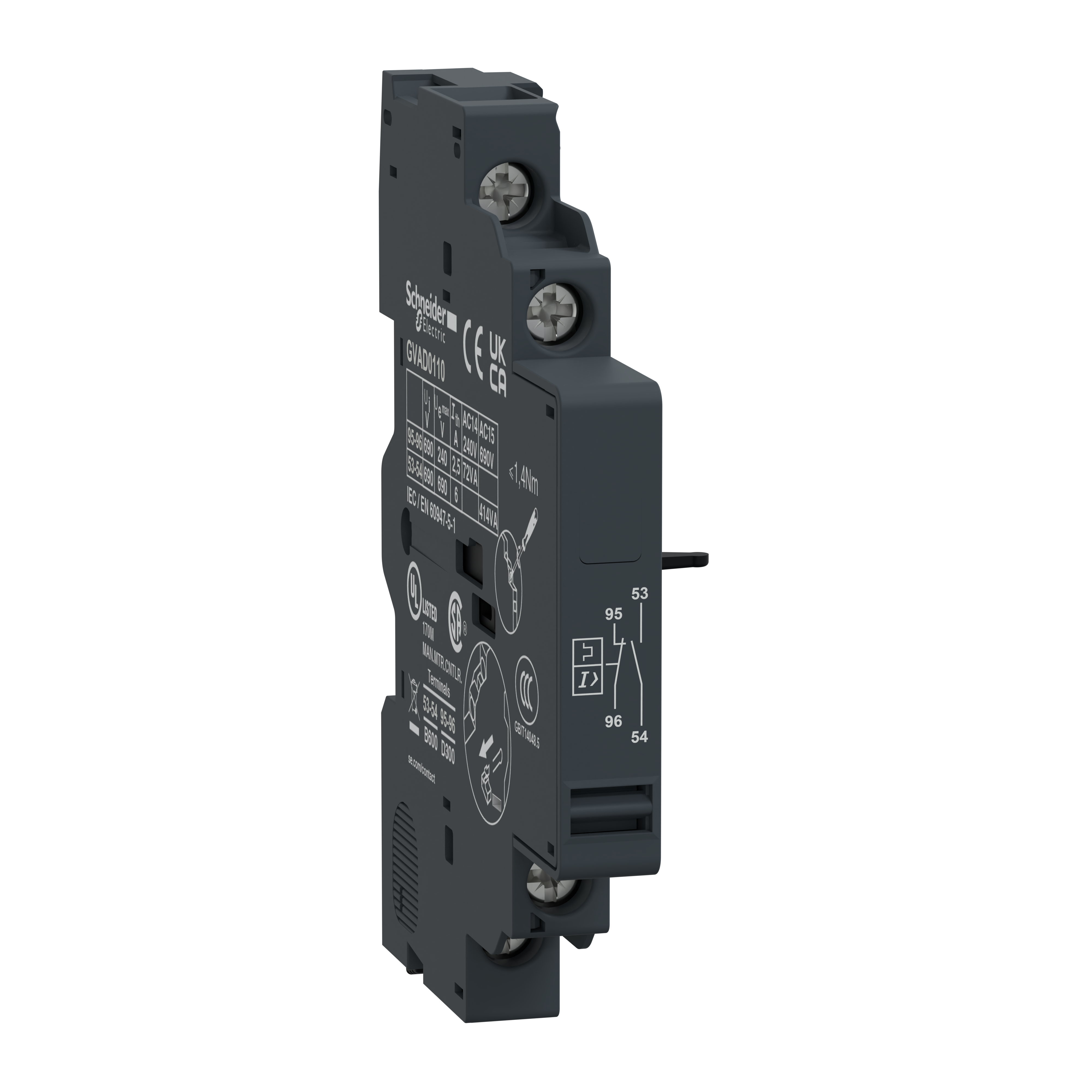

TeSys GV auxiliary contact block, 1NC fault signalling contact and 1NO instantaneous auxiliary contact, for motor circuit breakers GV2 and GV3. Instantaneous auxiliary contact rated for AC operation up to 6A/690V and DC operation up to 6A/240V DC, fault signalling contact rated for AC operation up to 2A/240V and DC operation up to 1A/60V DC. To be installed on left-hand LH side, next to the circuit breaker, 1 block mounting maximum, connection by screw clamp terminals. Multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 42 g |
| ETIM class: | Auxiliary contact block |
| Rated operation current Ie at AC-15, 230 V: | 3.3 A |
| Model: | Clip-on |
| Type of electric connection: | Screw connection |
| Mounting method: | Side mounting |
| Number of fault-signal switches: | 1 |
| Lamp holder: | None |
| Number of contacts as change-over contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as normally closed contact: | 1 |
