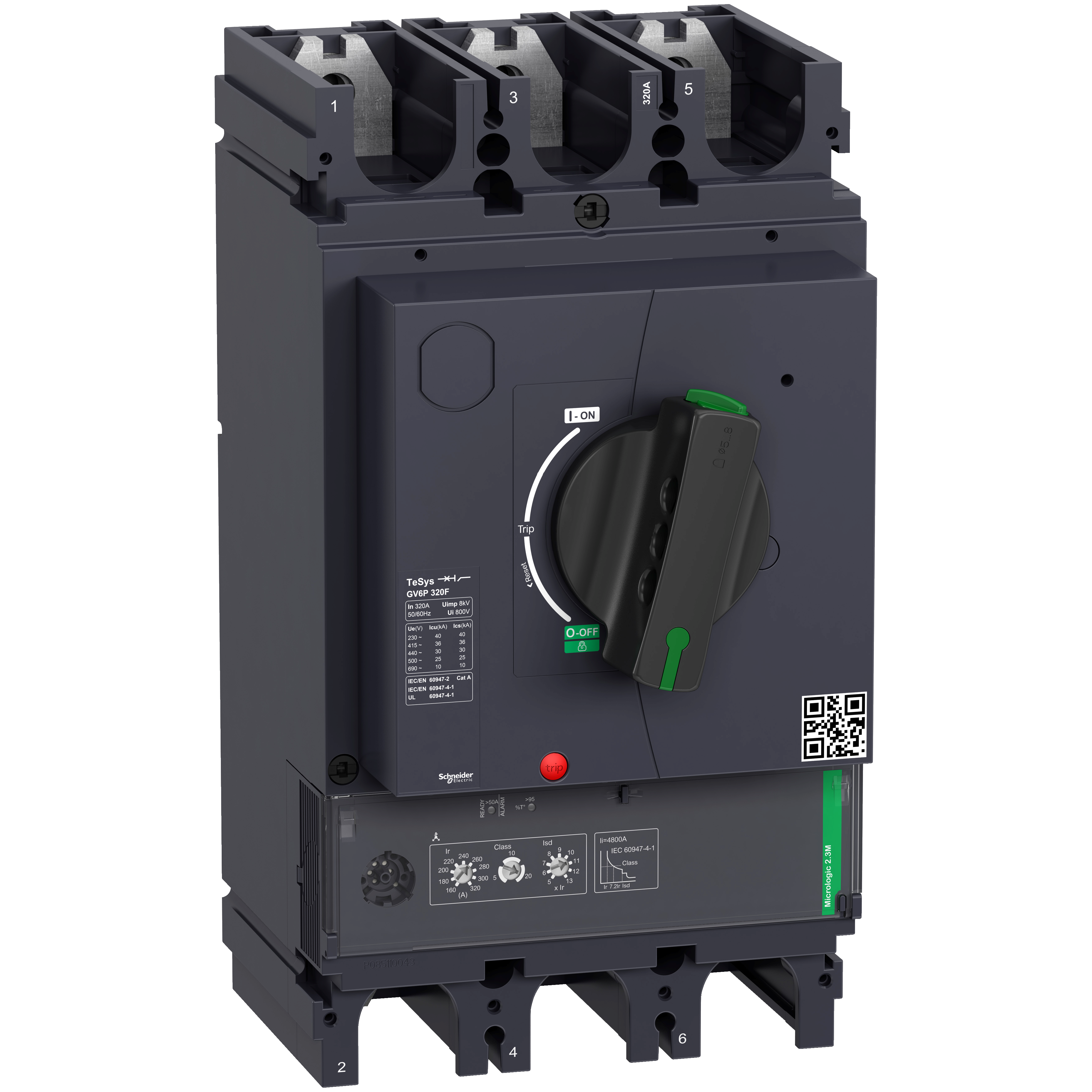

Wyłącznik silnikowy magnetotermiczny TeSys GV6, 3 polowe, 320A, Icu=36kA, dźwignia
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV6P320F |
| GTIN(EAN) | 3606489915445 |
| Price unit | piece |
| Catalog price | 8 352,18 zł (6 790,39 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,8 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 320 - 320 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Height: | 255 mm |
| Rated operating voltage: | 0 - 690 V |
| Depth: | 179 mm |
| Width: | 140 mm |
| Switch off technique: | Thermomagnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 36 kA |
| Rated operation power at AC-3, 400 V: | 250 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Turn button |
| Rated permanent current Iu: | 320 A |
| Overload release current setting: | 160 - 320 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 132 kW |
