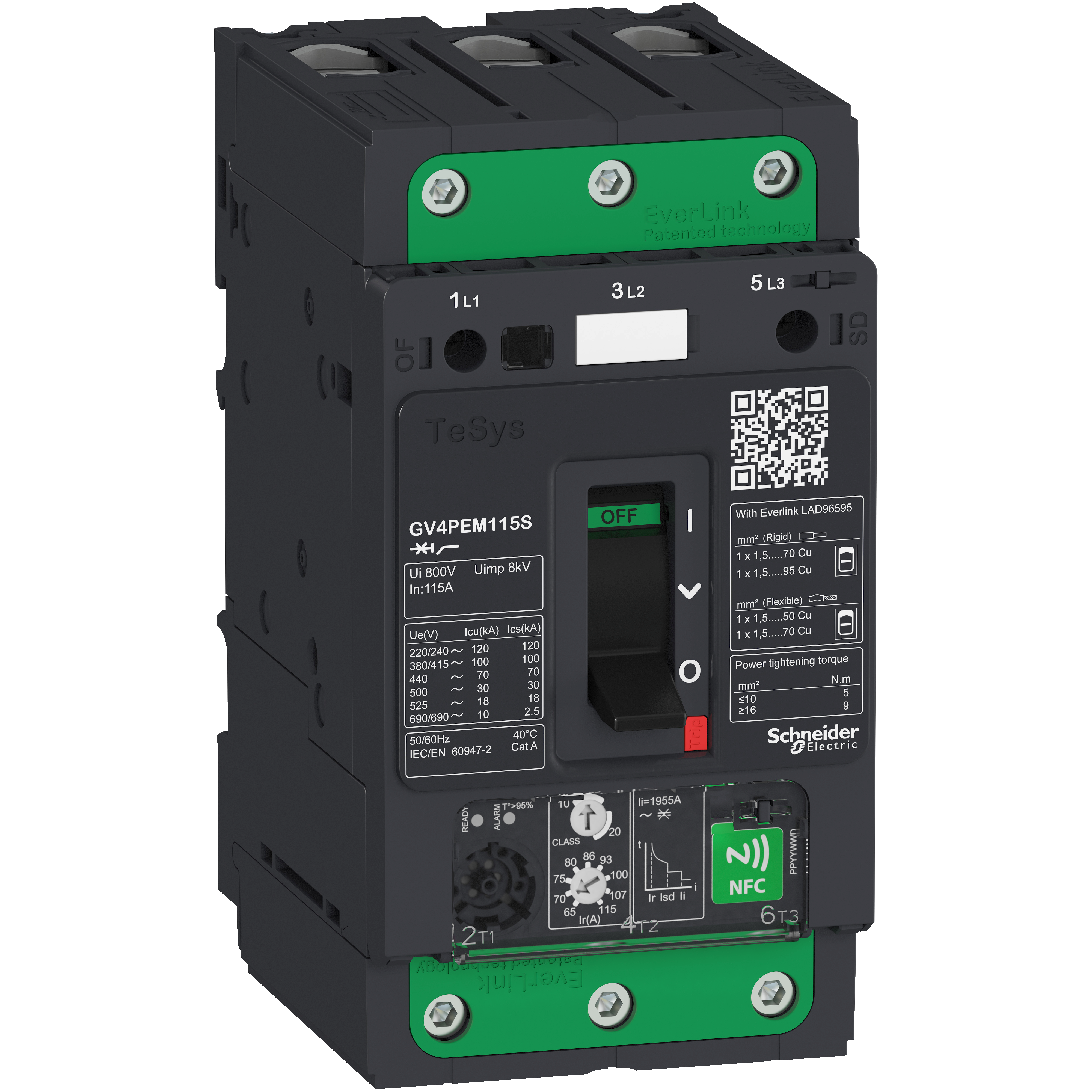

Wyłącznik silnikowy, TeSys GV4, 3P, 115A, Icu 100kA, thermal magnetyczny wielofunkcyjny, terminale EverLink
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV4PEM115S |
| GTIN(EAN) | 3606481311023 |
| Price unit | piece |
| Catalog price | 16 668,50 zł (13 551,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,669 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 1955 - 1955 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Height: | 155 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 116 mm |
| Width: | 81 mm |
| Switch off technique: | Electronic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
| Rated operation power at AC-3, 400 V: | 55 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Rocker lever |
| Rated permanent current Iu: | 115 A |
| Overload release current setting: | 65 - 115 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 30 kW |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
