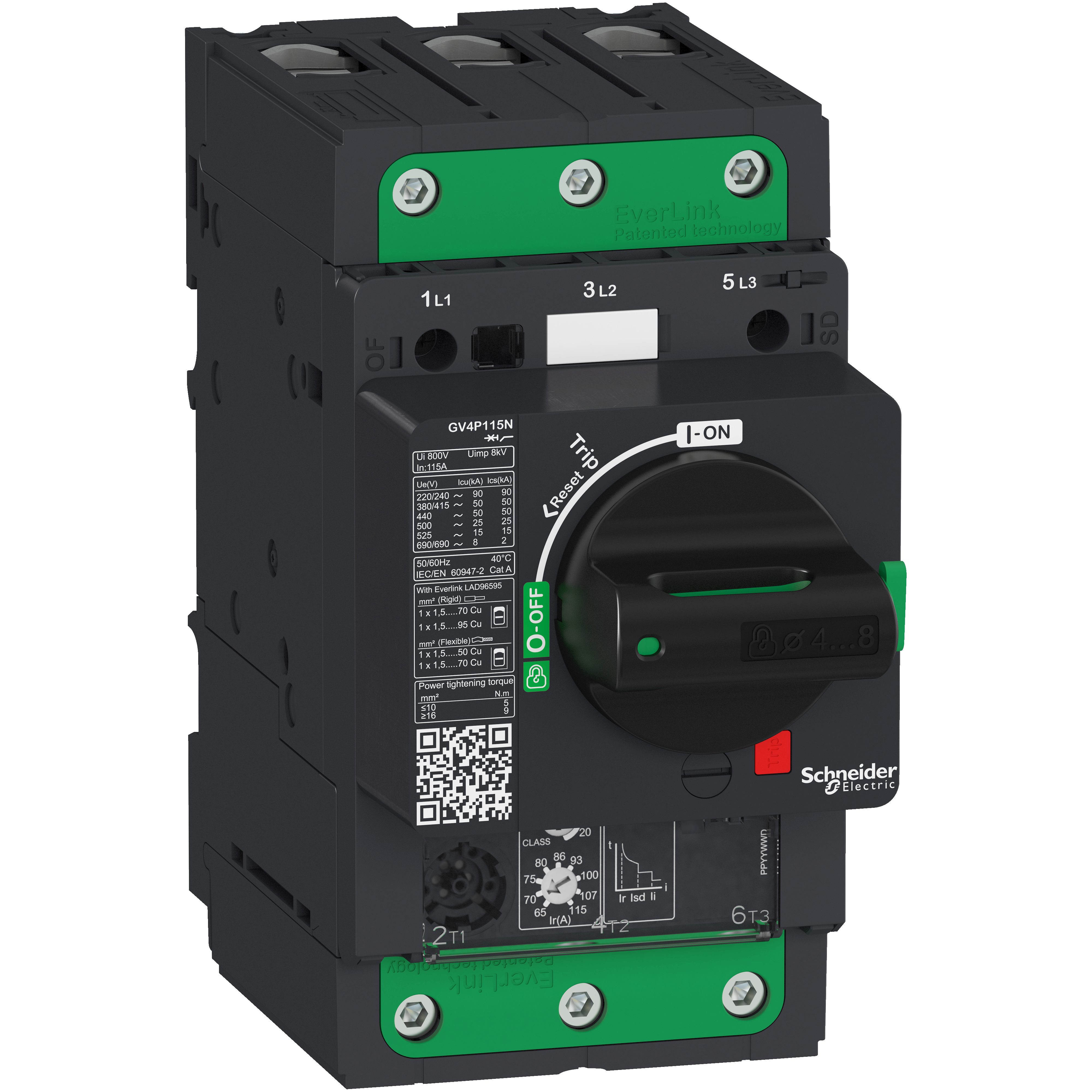

Wyłącznik silnikowy, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetyczny, terminale EverLink
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV4P115N |
| GTIN(EAN) | 3606481310385 |
| Price unit | piece |
| Catalog price | 9 704,85 zł (7 890,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 1,85 kg |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 1955 - 1955 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP40 |
| Height: | 155 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 165 mm |
| Width: | 81 mm |
| Switch off technique: | Electronic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 50 kA |
| Rated operation power at AC-3, 400 V: | 55 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Turn button |
| Rated permanent current Iu: | 115 A |
| Overload release current setting: | 65 - 115 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 30 kW |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:41 |
| Files to download: | |
| External links: |
