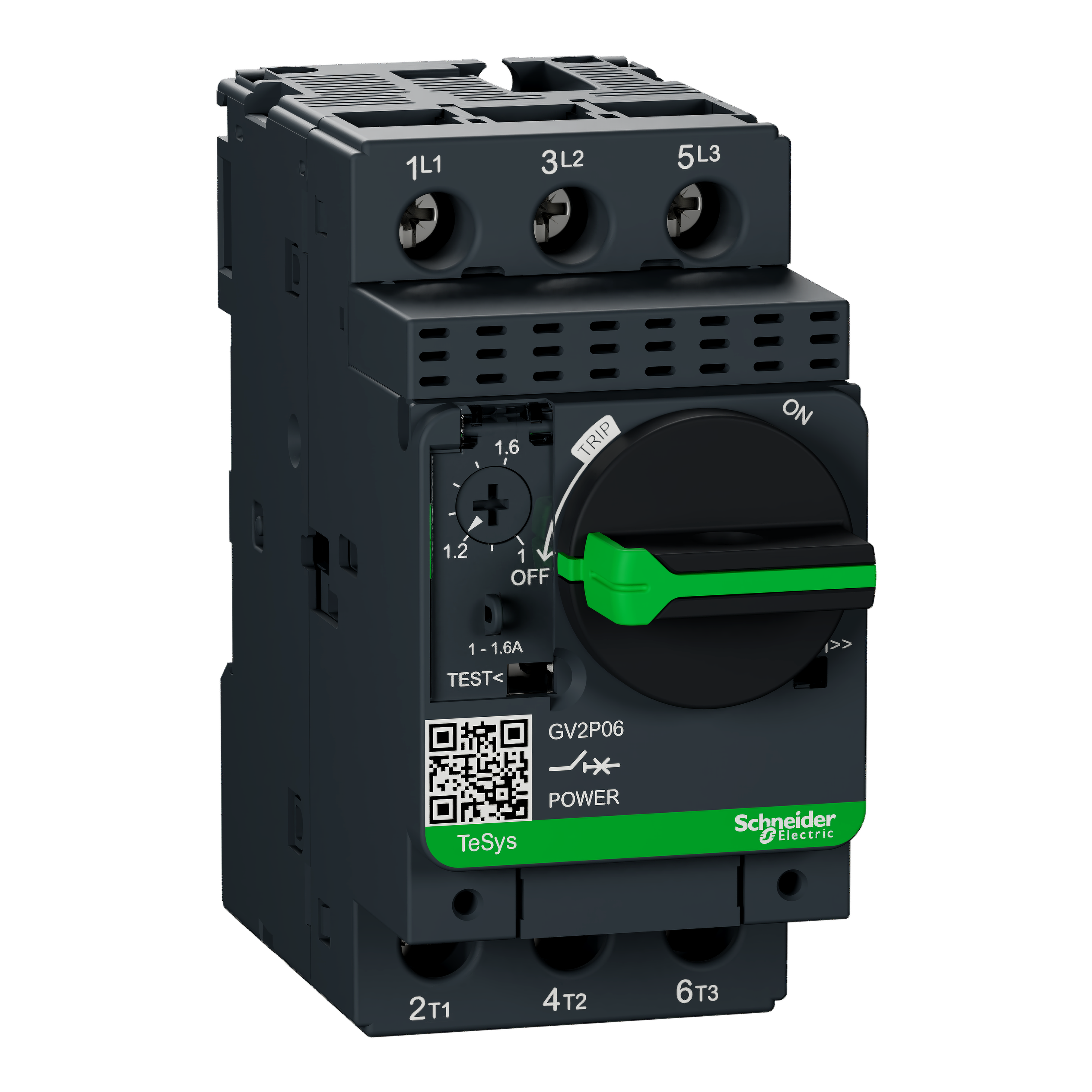

Wyłącznik silnikowy TeSys GV2P napęd obrotowy 1-1,6A zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GV2P06 |
| GTIN(EAN) | 3389110213454 |
| Price unit | piece |
| Catalog price | 457,47 zł (371,93 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wyłącznik silnikowy TeSys GV, 3-biegunowy (3P), 1,6A/690V, do zastosowań w silnikach 3-fazowych 0,37-0,55kW 400V. Zapewnia zabezpieczenie termiczno-magnetyczne z zakresem nastaw termicznych 1-1,6A, wyzwalanie magnetyczne przy 13xIn oraz wysoką zdolność wyłączania Icu 100kA 400V. Podłączenie za pomocą zacisków śrubowych. Sterowanie start-stop za pomocą pokrętła gwarantowane przez 100 000 cykli AC-3. Zgodność z wieloma normami (IEC, UL, CSA, CCC, EAC, certyfikaty morskie, ATEX), Green Premium (RoHS/REACh).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 321 g |
| ETIM class: | Motor protection circuit-breaker |
| Type of electrical connection of main circuit: | Screw connection |
| Adjustment range undelayed short-circuit release: | 22.5 - 22.5 A |
| Device construction: | Complete device in housing |
| With integrated under voltage release: | no |
| Number of poles: | 3 |
| Degree of protection (IP): | IP20 |
| Height: | 89 mm |
| Rated operating voltage: | 690 - 690 V |
| Depth: | 97 mm |
| Width: | 44.5 mm |
| Switch off technique: | Thermomagnetic |
| Rated short-circuit breaking capacity lcu at 400 V, AC: | 100 kA |
| Rated operation power at AC-3, 400 V: | 0.55 kW |
| Phase failure sensitive: | yes |
| With integrated auxiliary switch: | no |
| Type of control element: | Turn button |
| Rated permanent current Iu: | 1.6 A |
| Overload release current setting: | 1 - 1.6 A |
| With thermal overload protection: | yes |
| Rated operation power at AC-3, 230 V: | 0.25 kW |
