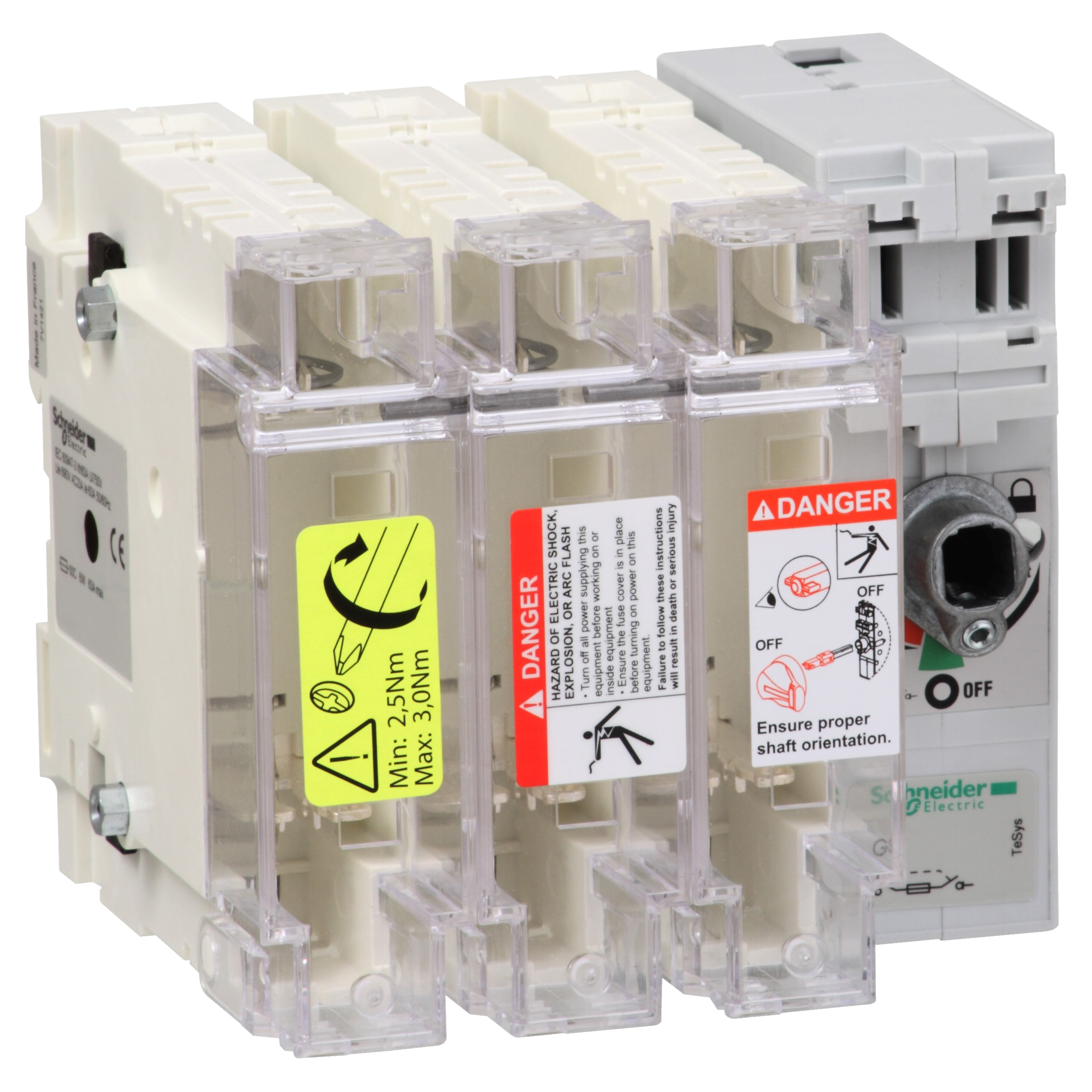

Podstawa bezpiecznikowa GS NFC 22x58 100A 3P
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GS2J3 |
GTIN(EAN) | 3389119410687 |
Price unit | piece |
Catalog price | 3 026,05 zł (2 460,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 1,861 kg |
ETIM class: | Fuse switch disconnector |
Rated short-time withstand current lcw: | 100 kA |
Equipped with connectors: | no |
Version as emergency stop installation: | no |
Cable entry: | Other |
Type of electrical connection of main circuit: | Screw connection |
Version as safety switch: | no |
Suitable for busbar mounting: | yes |
Position control element: | Other |
Version as main switch: | yes |
Max. rated operation voltage Ue AC: | 750 V |
Number of poles: | 3 |
Degree of protection (IP), front side: | IP20 |
Rated operation power at AC-23, 400 V: | 51 kW |
Motor drive integrated: | no |
Suitable for front mounting: | no |
Conditioned rated short-circuit current Iq: | 100 kA |
Type of control element: | Without actuator |
Rated permanent current Iu: | 100 A |
With error protection: | no |
Motor drive optional: | no |
Suitable for floor mounting: | no |
Suitable for fuses: | 22x58 mm |
