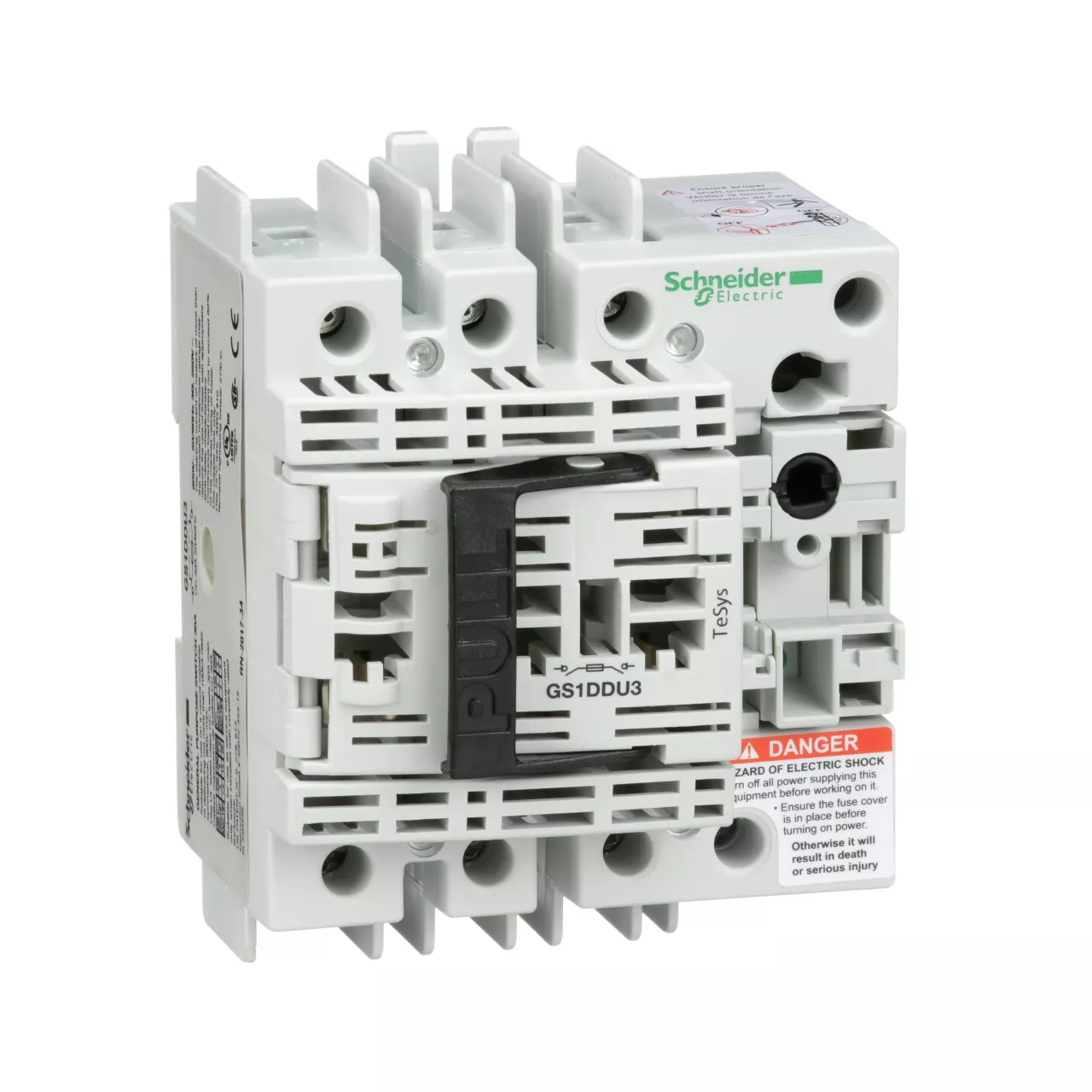

Podstawa bezpiecznikowa GS UL 30A 3P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GS1DDU3 |
| GTIN(EAN) | 3389110179538 |
| Price unit | piece |
| Catalog price | 1 919,56 zł (1 560,62 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 558 g |
| ETIM class: | Fuse switch disconnector |
| Rated short-time withstand current lcw: | 100 kA |
| Equipped with connectors: | no |
| Version as emergency stop installation: | no |
| Cable entry: | Other |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Suitable for busbar mounting: | no |
| Position control element: | Front side |
| Version as main switch: | yes |
| Max. rated operation voltage Ue AC: | 800 V |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP20 |
| Rated operation power at AC-23, 400 V: | 15 kW |
| Motor drive integrated: | no |
| Suitable for front mounting: | no |
| Conditioned rated short-circuit current Iq: | 100 kA |
| Type of control element: | Without actuator |
| Rated permanent current Iu: | 30 A |
| With error protection: | no |
| Motor drive optional: | no |
| Suitable for floor mounting: | no |
| Suitable for fuses: | Other |
