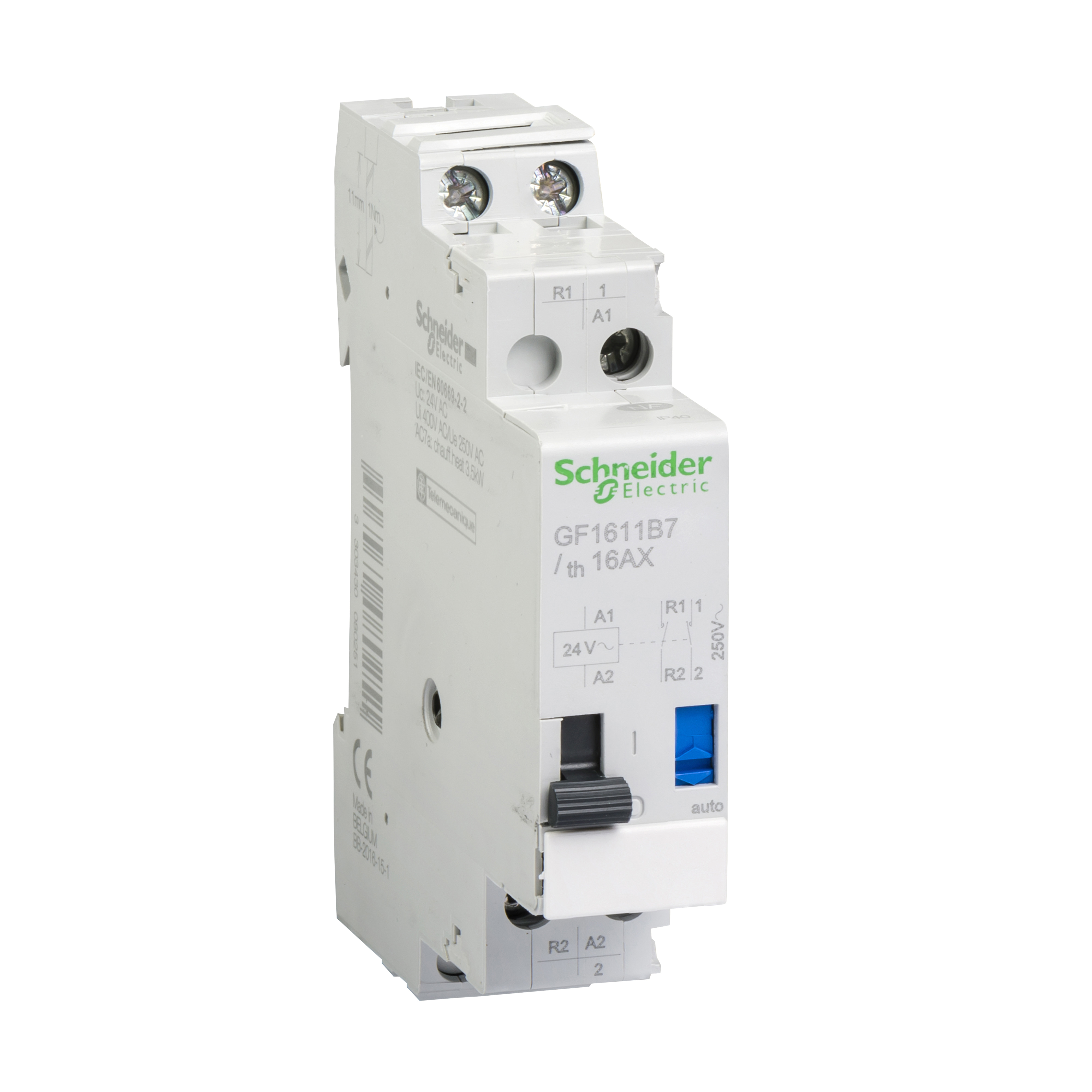

Przekaźnik impulsowy GC 16A 1NO 1NC 24VAC
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | GF1611B7 |
GTIN(EAN) | 3389110707779 |
Price unit | piece |
Catalog price | 493,28 zł (401,04 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 120 g |
ETIM class: | Latching relay |
Type of control voltage 1: | AC |
Frequency control voltage 1: | 50 - 60 Hz |
Suitable for manual operation: | yes |
Built-in depth: | 64 mm |
Max. switching current (cos phi = 0.6): | 16 A |
Mounting method: | DIN rail |
Supply voltage: | 0 - 250 V |
Rated switch current: | 16 A |
Max. load fluorescent lamp: | 1260 VA |
Function: | Mechanical switch |
Max. load fluorescent lamp (Duo circuit): | 2000 VA |
Voltage type (supply voltage): | AC |
Width in number of modular spacings: | 1 |
Max. load fluorescent lamp (parallel compensated): | 920 VA |
Control voltage 1: | 24 - 24 V |
Max. incandescent lamp load: | 1600 W |
Number of contacts as change-over contact: | 0 |
Number of contacts as normally open contact: | 1 |
Number of contacts as normally closed contact: | 1 |
