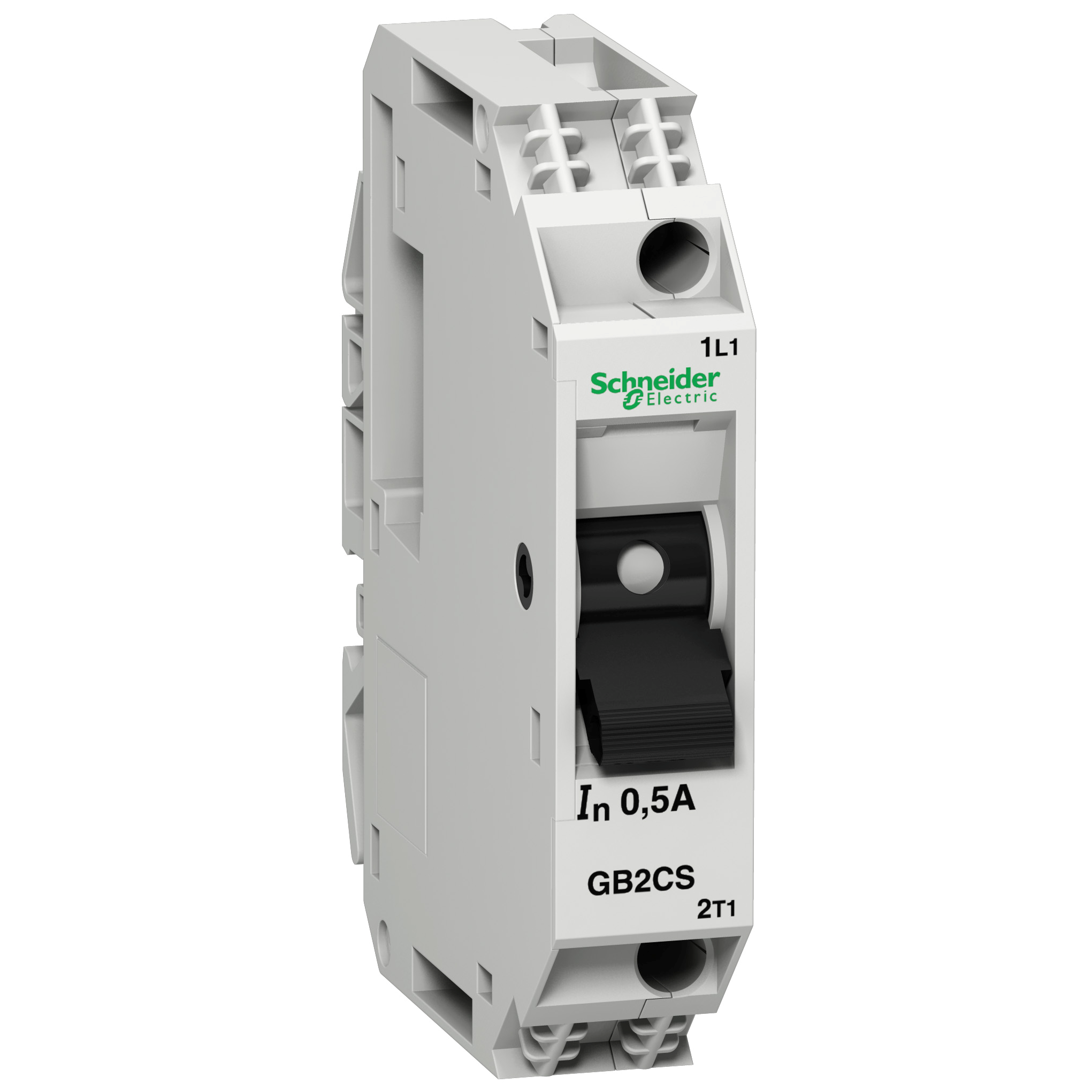

Wyłącznik silnikowy miniaturowy GB 0,5A 1P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | GB2CS05 |
| GTIN(EAN) | 3389110431612 |
| Price unit | piece |
| Catalog price | 527,39 zł (428,77 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 52 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Frequency: | 50 - 60 Hz |
| Number of poles (total): | 1 |
| Built-in depth: | 75 mm |
| Connectable conductor cross section solid-core: | 0.75 - 6 mm² |
| Explosion-proof: | no |
| Additional equipment possible: | no |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 50 kA |
| Concurrently switching neutral conductor: | no |
| Degree of protection (IP): | IP20 |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Release characteristic: | Other |
| Width in number of modular spacings: | 2 |
| Number of protected poles: | 1 |
| Flush-mounted installation: | no |
| Ambient temperature during operating: | -20 - 60 °C |
| Over voltage category: | 3 |
| Current limiting class: | 3 |
| Rated current: | 0.5 A |
| Rated voltage: | 250 V |
| Rated insulation voltage Ui: | 250 V |
| Connectable conductor cross section multi-wired: | 0.75 - 4 mm² |
| Pollution degree: | 2 |
