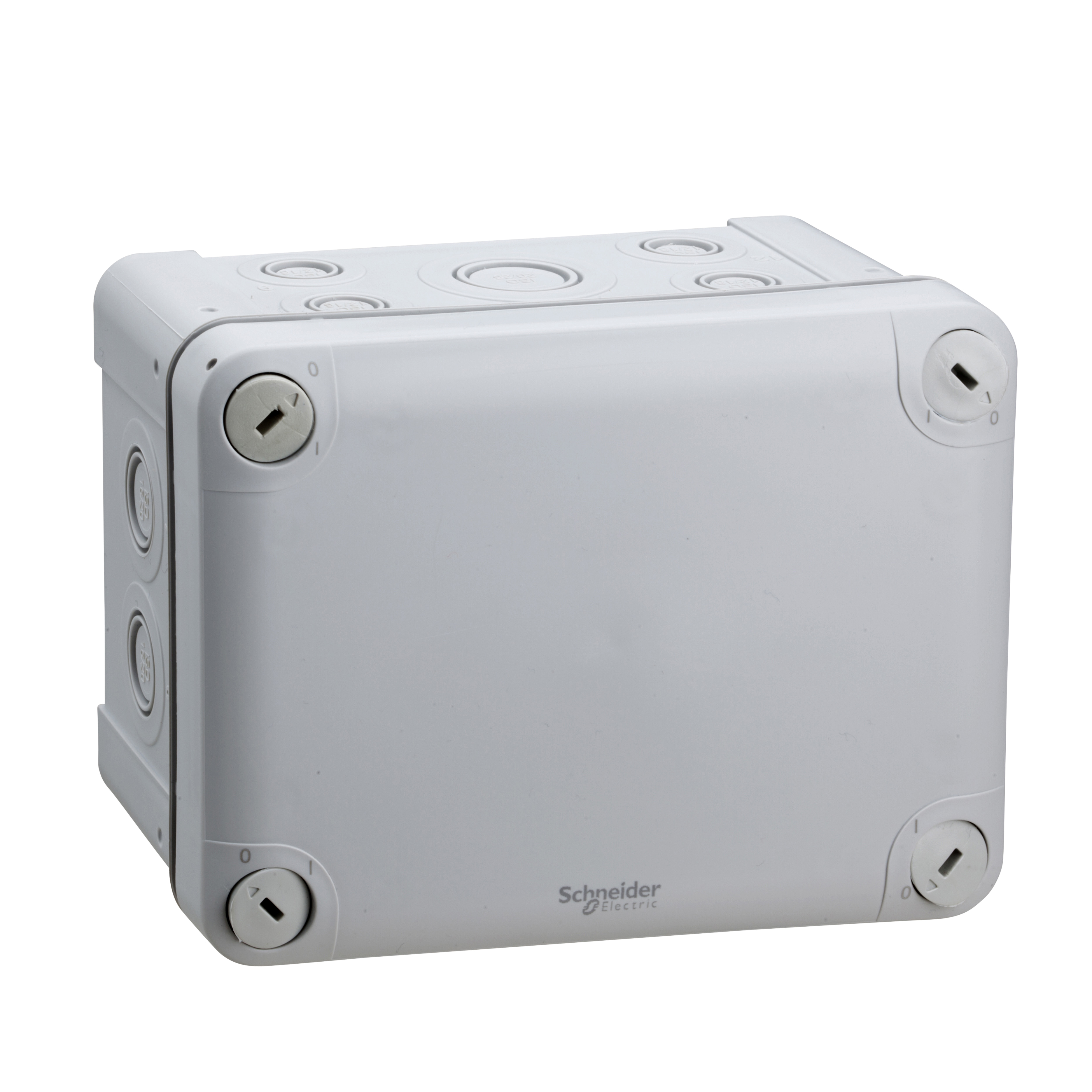

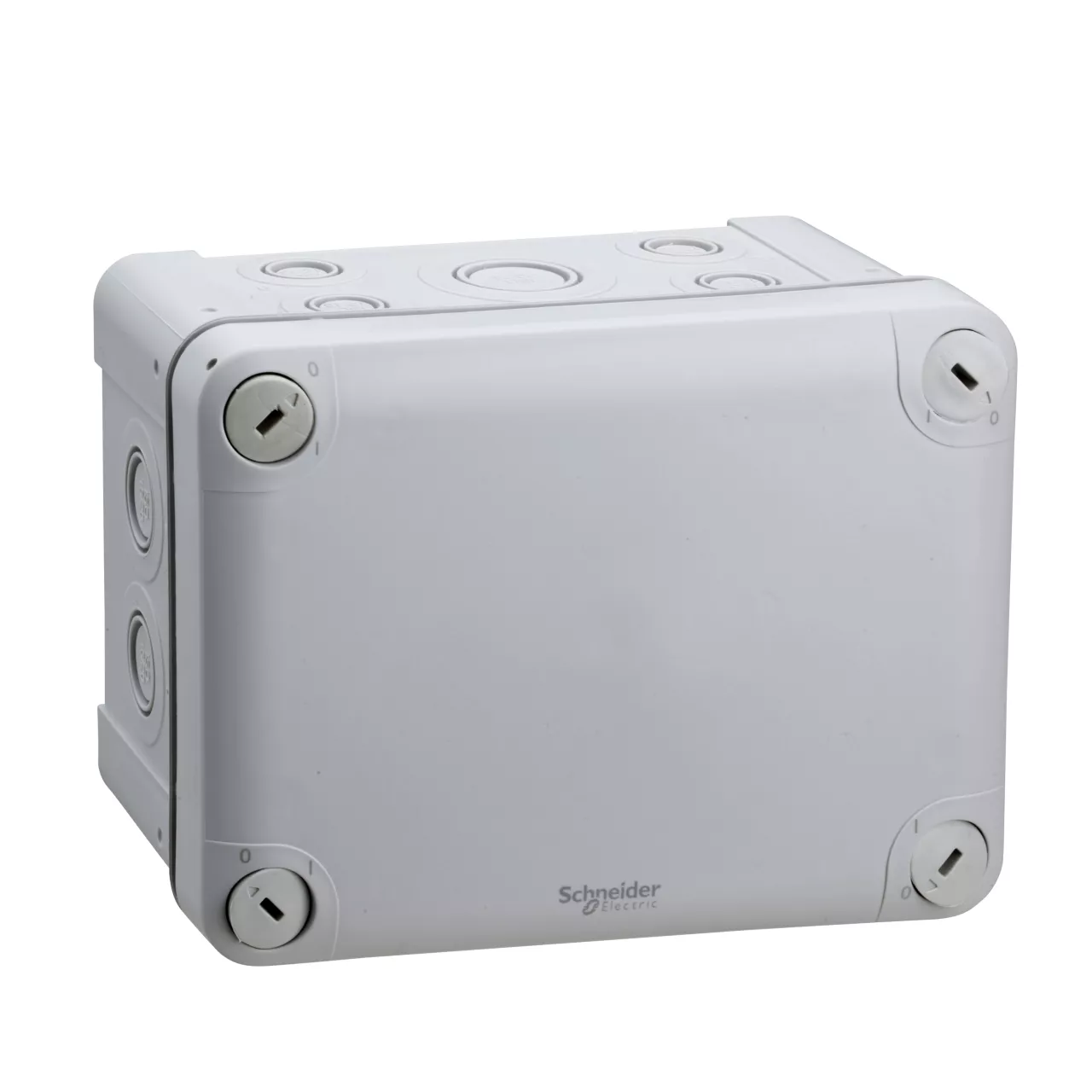

Mureva BOX - junction box - knock-out 8xM12/16+4xM16/20+2xM20/25 - 150x105x80 mm
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | ENN05087 |
| GTIN(EAN) | 3295150050877 |
| Price unit | piece |
| Catalog price | 58,22 zł (47,33 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| punkty elektroklub: | 4 |
| Gross weight: | 280 g |
| ETIM class: | Box/housing for surface mounting on the wall/ceiling |
| Surface protection: | Untreated |
| Cover attachment: | Screwed |
| Tackable: | no |
| Material: | Plastic |
| Halogen free: | yes |
| Weatherproof: | yes |
| Castable: | no |
| With casting compound: | no |
| Degree of protection (IP): | IP55 |
| With screening: | no |
| Depth: | 165 mm |
| Max. conductor cross section: | 25 mm² |
| Colour: | Grey |
| Circuit integrity: | None |
| Width: | 85 mm |
| Operating temperature: | -25 - 40 °C |
| Shape: | Rectangular |
| For Ex-zone gas: | None |
| Equipped with: | Other |
| Inlet from the rear: | yes |
| Sealable: | no |
| Transparent cover: | no |
| Mounting method: | Wall-/ceiling mounting |
| For Ex-Zone dust: | None |
| Cover model: | Blind cover |
| For tube diameter: | 20/25 mm |
| Number of inlets: | 14 |
| Length: | 120 mm |
| Mounting under water: | no |
| Mounting in the soil: | no |
| Explosion-tested version: | no |
| Type of housing feed-through: | Preembossing |
