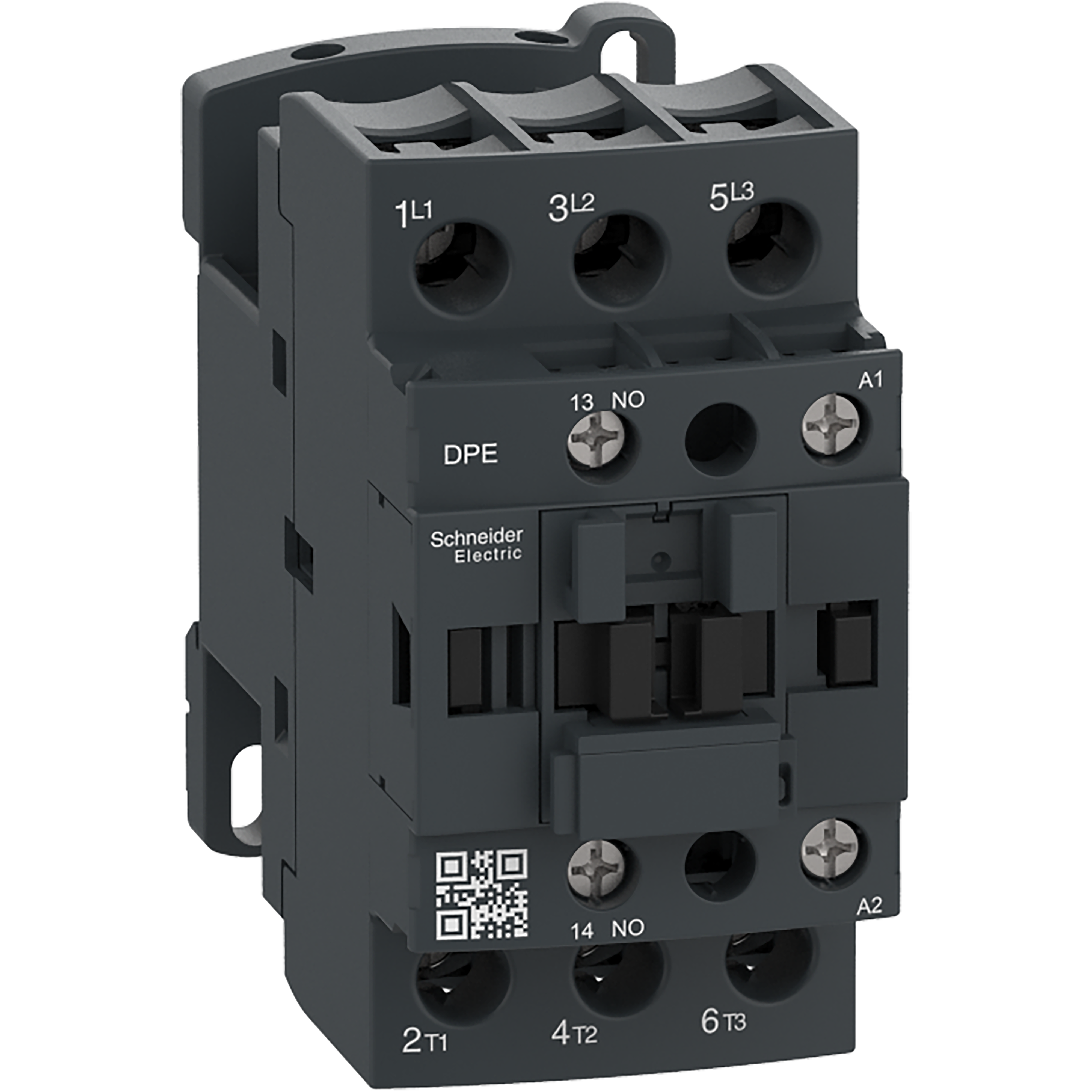

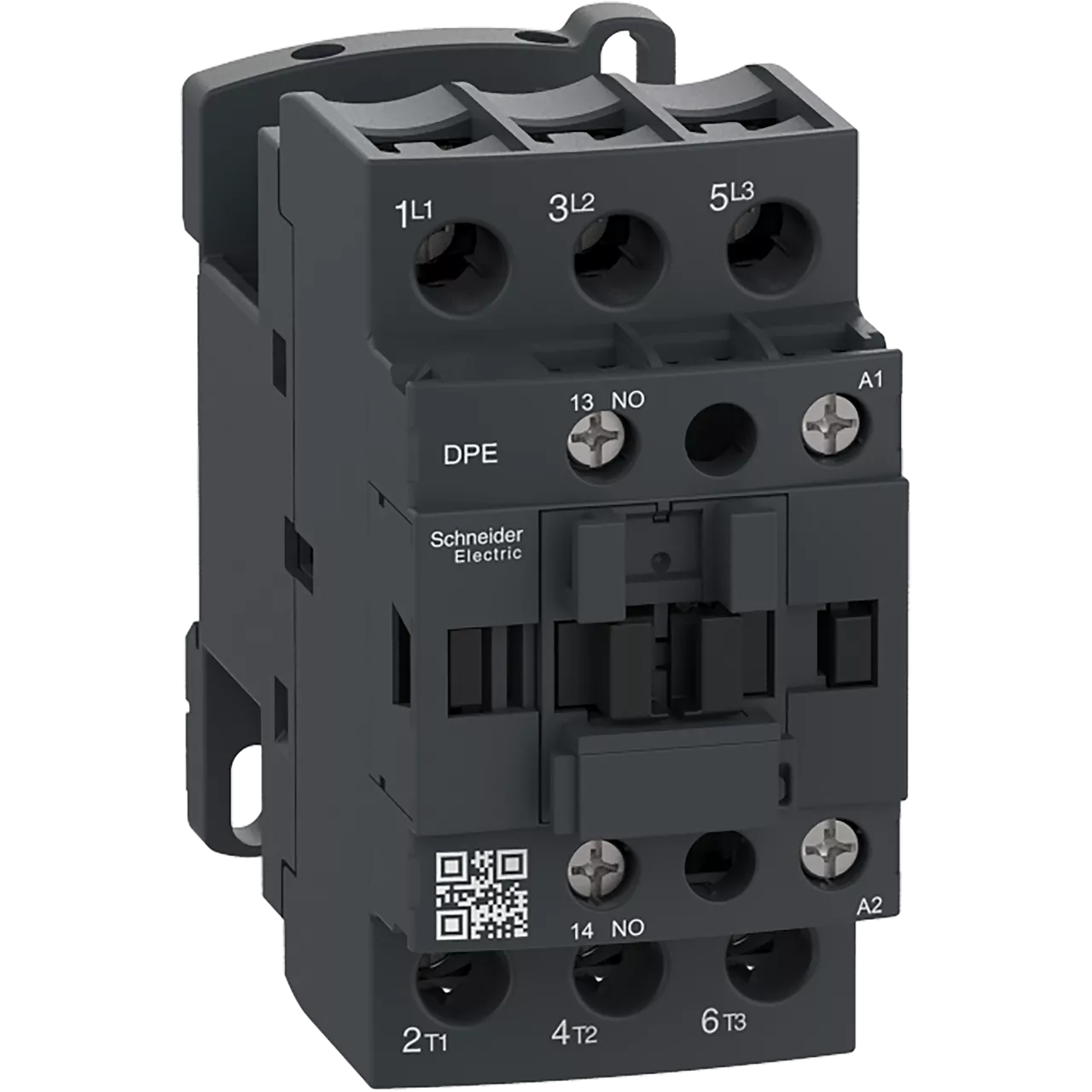

Easy TeSys DPE stycznik mocy, 32A, 3P, 24V 50/60 Hz cewka, styk pomocniczy 1zw
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | DPE32B7 |
| GTIN(EAN) | 3606485332680 |
| Price unit | piece |
| Catalog price | 540,57 zł (439,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 420 g |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 32 A |
| Rated operation current Ie at AC-1, 400 V: | 40 A |
| Rated operation power NEMA: | 11 kW |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated operation power at AC-3, 400 V: | 11 kW |
| Modular version: | no |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-17 10:54:08 |
| Files to download: | |
| External links: |
