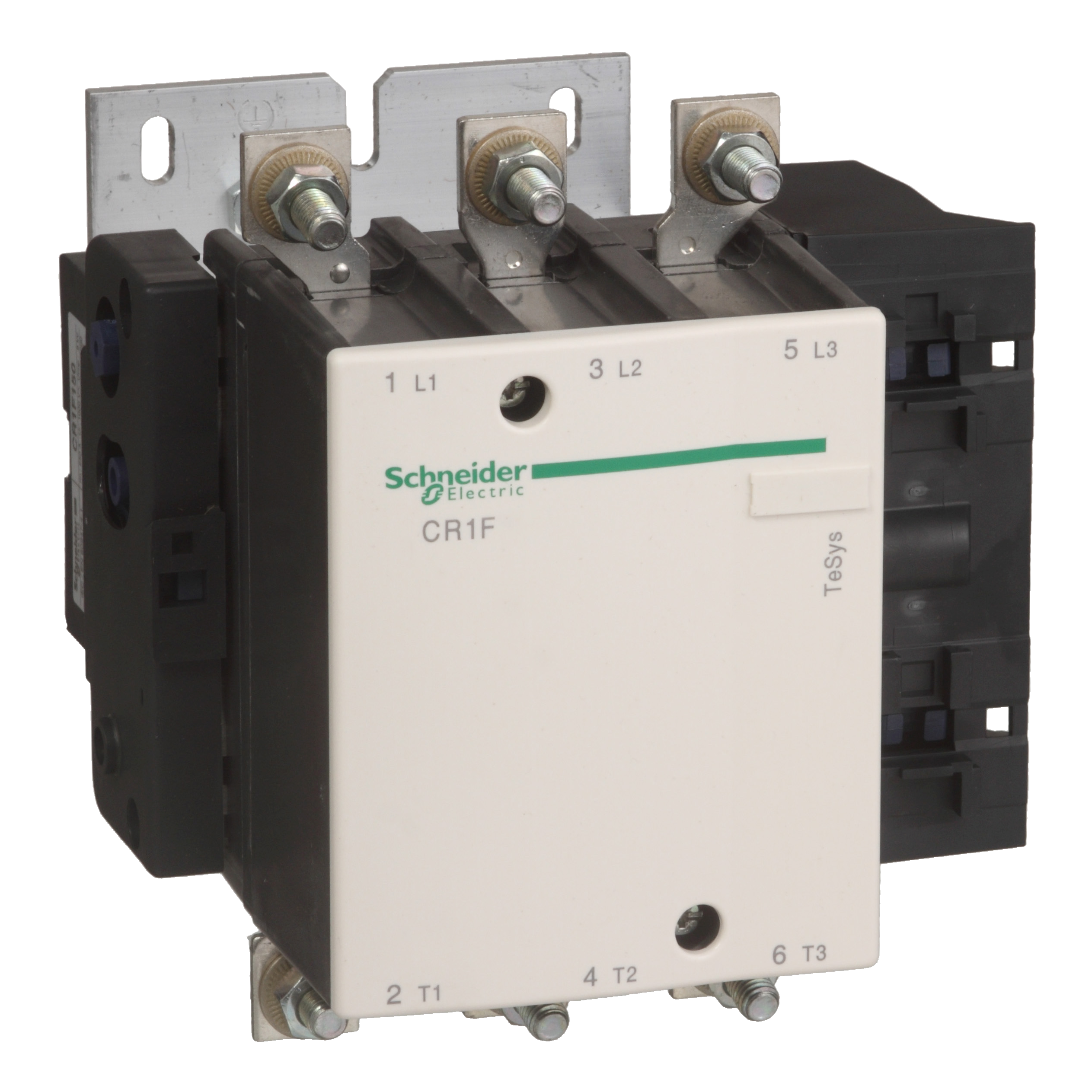

Stycznik bistabilny TeSys F 185A 3P 3NO cewka 220/230V AC/DC
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | CR1F185M7 |
| GTIN(EAN) | 3389110548150 |
| Price unit | piece |
| Catalog price | 5 738,75 zł (4 665,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,075 kg |
| ETIM class: | Power contactor, AC switching |
| Type of electrical connection of main circuit: | Bolt connection |
| Number of normally open contacts as main contact: | 3 |
| Number of normally closed contacts as main contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Voltage type for actuating: | AC/DC |
| Rated operation current Ie at AC-3, 400 V: | 185 A |
| Rated operation current Ie at AC-1, 400 V: | 275 A |
| Rated control supply voltage DC: | 220 - 230 V |
| Rated operation power at AC-3, 400 V: | 90 kW |
| Modular version: | no |
| Rated operation power at AC-4, 400 V: | 33 kW |
| Rated operation current Ie at AC-4, 400 V: | 70 A |
