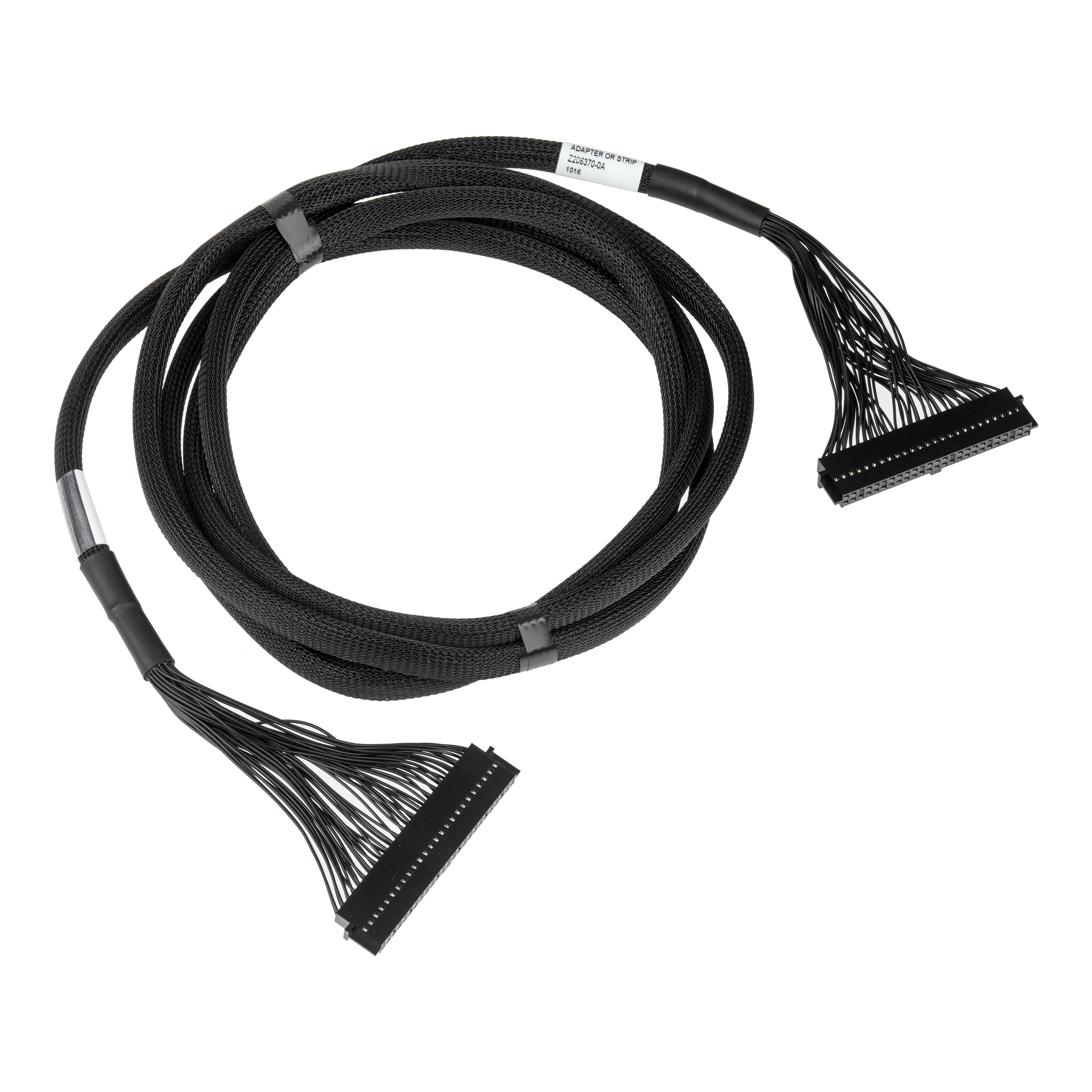

Kabel okrągły do BCPM 2.4 m
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | CBL033 |
GTIN(EAN) | 3606480640520 |
Price unit | piece |
Catalog price | 1 200,48 zł (976,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Ten kabel jest używany do dodatkowych listew przekładników prądowych z serii PowerLogic BCPM lub jako zapasowy. Jest to okrągły kabel taśmowy złożony z przewodów 50 x 28 AWG. 2 metry długości.
Additional features:
Information | Value |
---|---|
Gross weight: | 386,4 g |
ETIM class: | Power cable < 1 kV, for moving application |
Conductor material: | Copper |
Screen over stranding element: | None |
Outer diameter approx.: | 12 mm |
Screen over stranding: | None |
Material outer sheath: | Polyvinyl chloride (PVC) |
AWG size: | 28 |
Conductor category: | Class 6 = very flexible |
Nominal voltage U: | 300 V |
Stranding element: | No |
Colour outer sheath: | Grey |
Shape of conductor: | Round |
Specification core insulation: | Other |
Specification material outer sheath: | Other |
Permitted cable outer temperature during assembling/handling: | -20 - 80 °C |
Permitted cable outer temperature after assembling without vibration: | -20 - 80 °C |
Cable geometry: | Round |
Nominal voltage U0: | 300 V |
Number of cores: | 50 |
Core identification: | Colour |
Suspension element: | None |
Core identification according to HD 308 S2: | no |
Nominal cross section conductor: | 0.321 mm² |
Material core insulation: | Other |
Reaction-to-fire according to EN 13501-6: Acidity: | None |
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: | None |
Reaction-to-fire according to EN 13501-6: Class: | None |
Reaction-to-fire according to EN 13501-6: Smoke production: | None |
Conductor surface: | Bare |
Cable height approx.: | 12 mm |
Cable width approx.: | 12 mm |
Oil resistant according to EN IEC 60811-404: | no |
Low temperature resistant according to EN 60811-504+505+506: | no |
With protective conductor: | no |
Halogen free according to EN 60754-1/2: | yes |
Low smoke (according to EN 61034-2): | no |
Flame retardant: | According to IEC/EN 60332-1-2 |
