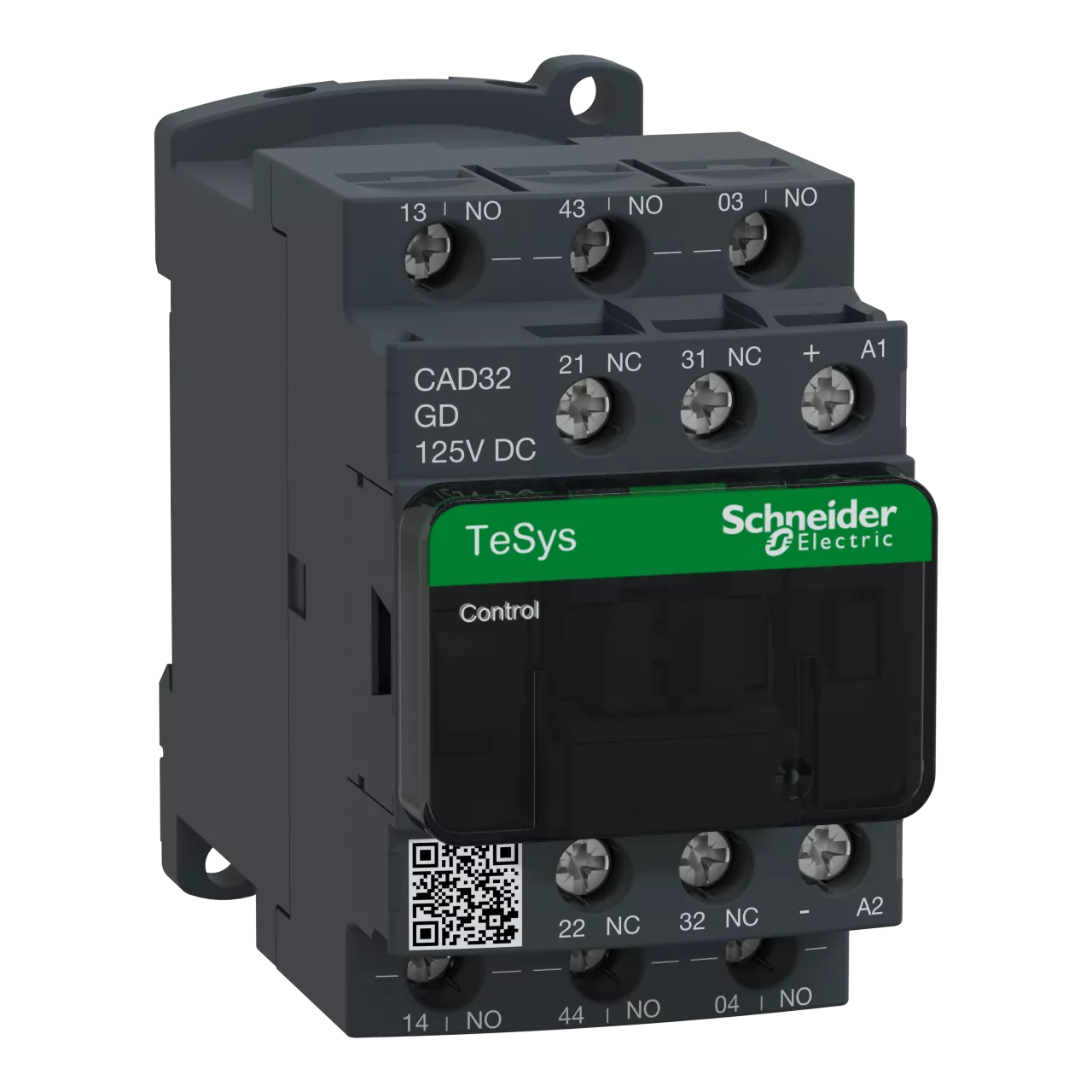

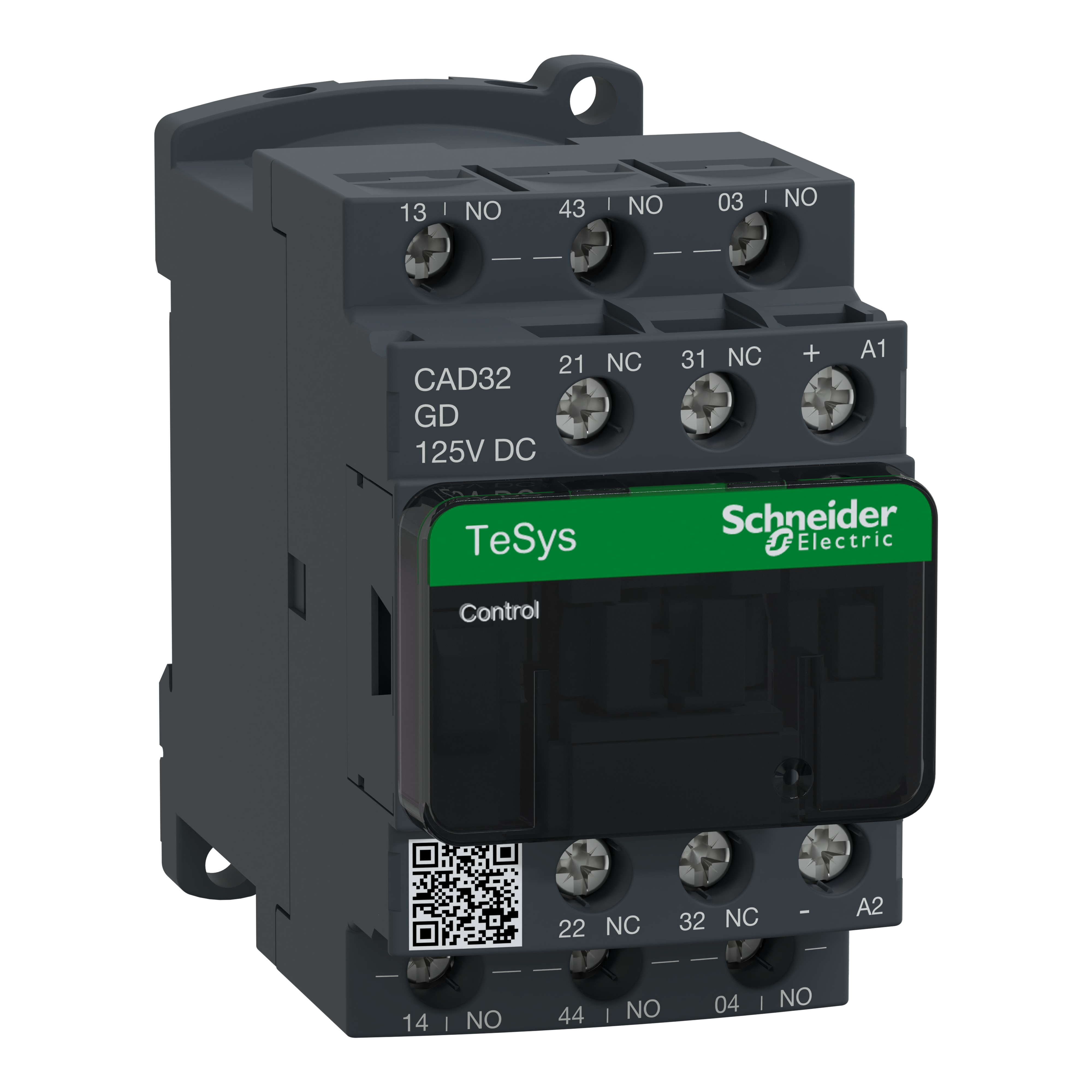

Stycznik pomocniczy, TeSys Deca, 3NO 2NC, cewka 125VDC, zaciski skrzynkowe
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | CAD32GD |
| GTIN(EAN) | 3389110404258 |
| Price unit | piece |
| Catalog price | 520,84 zł (423,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
It provides a 125V DC control circuit with no inrush current and equipped with a surge suppression device, connection by screw clamp terminals. For applications with high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw on panel. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 497 g |
| ETIM class: | Contactor relay |
| Suitable for manual operation: | no |
| With LED indication: | no |
| Connection type auxiliary circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as normally closed contact: | 2 |
| Rated operation current Ie, 400 V: | 10 A |
| Mounting method: | DIN-rail/screw |
| Voltage type for actuating: | DC |
| Number of auxiliary contacts as normally closed contact, delayed switching: | 0 |
| Rated control supply voltage DC: | 125 - 125 V |
| Interface: | no |
| Number of auxiliary contacts as normally open contact, leading: | 0 |
