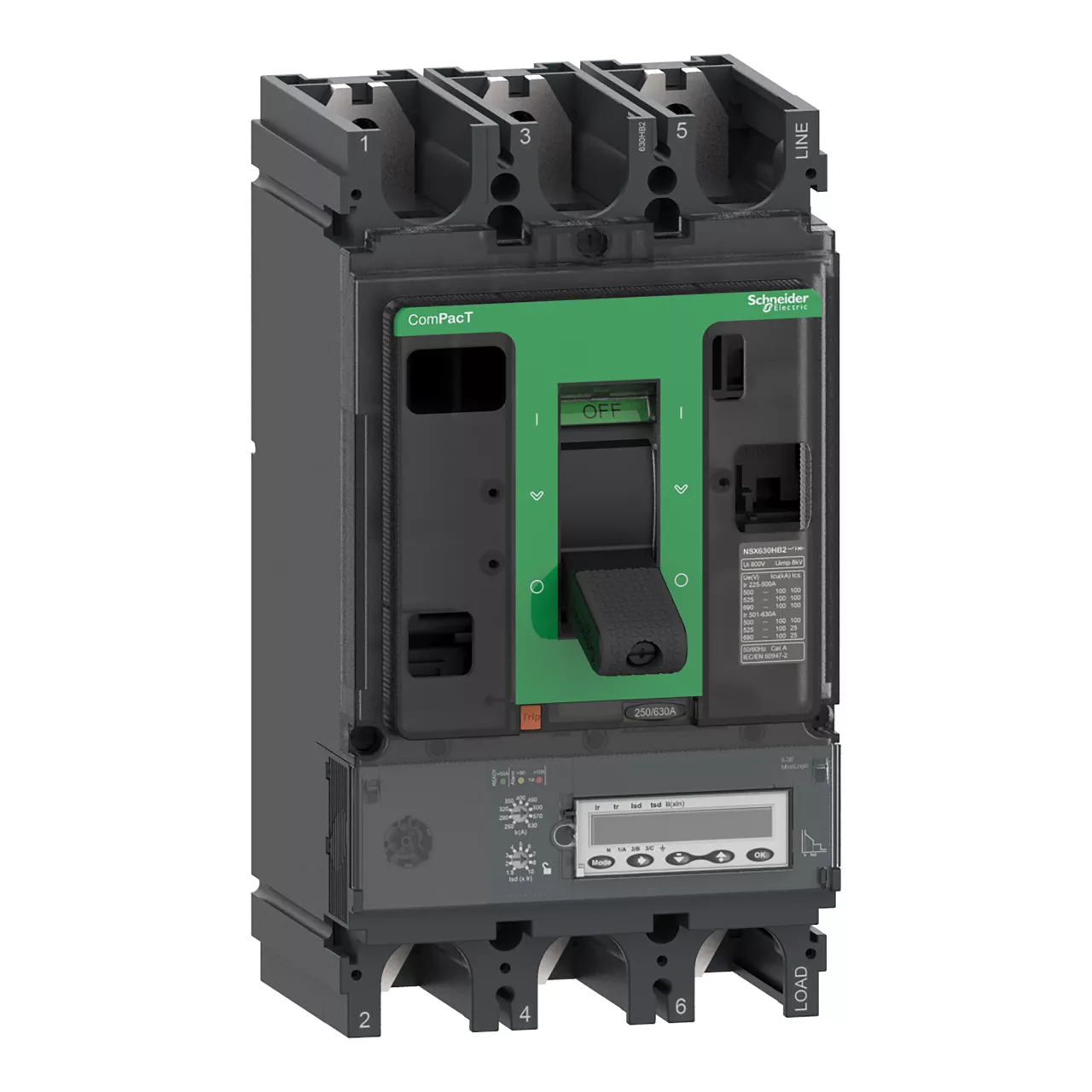

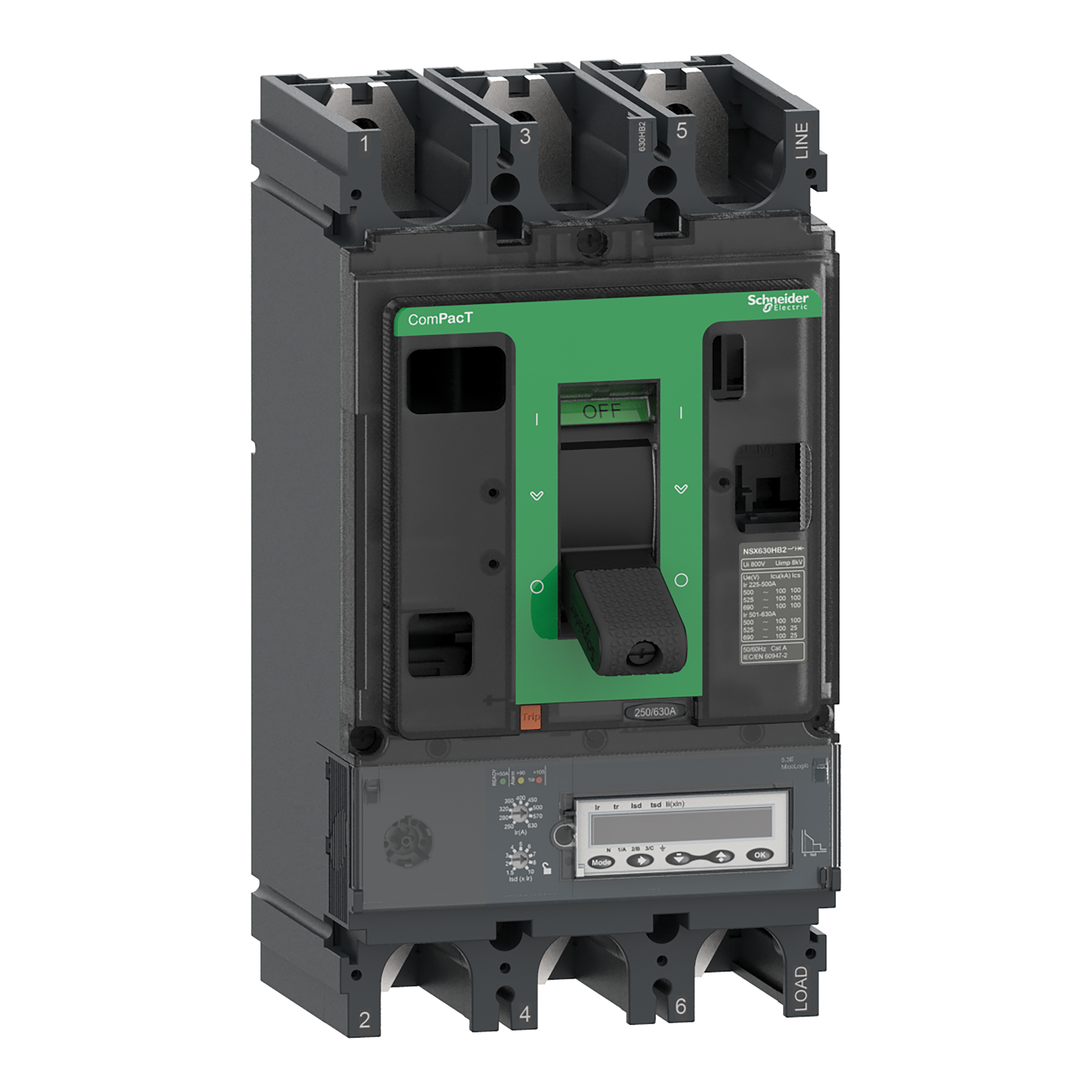

Wyłącznik, ComPacT NSX630HB2, Mic5.3E, 630A, 3P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C63W35E630 |
| GTIN(EAN) | 3606481989208 |
| Price unit | piece |
| Catalog price | 16 350,14 zł (13 292,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,52 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Adjustment range undelayed short-circuit release: | 945 - 9450 A |
| Integrated earth fault protection: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| With integrated under voltage release: | no |
| Degree of protection (IP): | IP40 |
| Number of poles: | 3 |
| Rated voltage: | 690 - 690 V |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
| With switched-off indicator: | yes |
| Motor drive integrated: | no |
| Overload release current setting: | 250 - 630 A |
| Type of control element: | Toggle |
| Rated permanent current Iu: | 630 A |
| Adjustment range short-term delayed short-circuit release: | 945 - 6300 A |
| Motor drive optional: | yes |
| Position of connection for main current circuit: | Front side |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-09-23 00:04:39 |
| Files to download: | |
| External links: |
