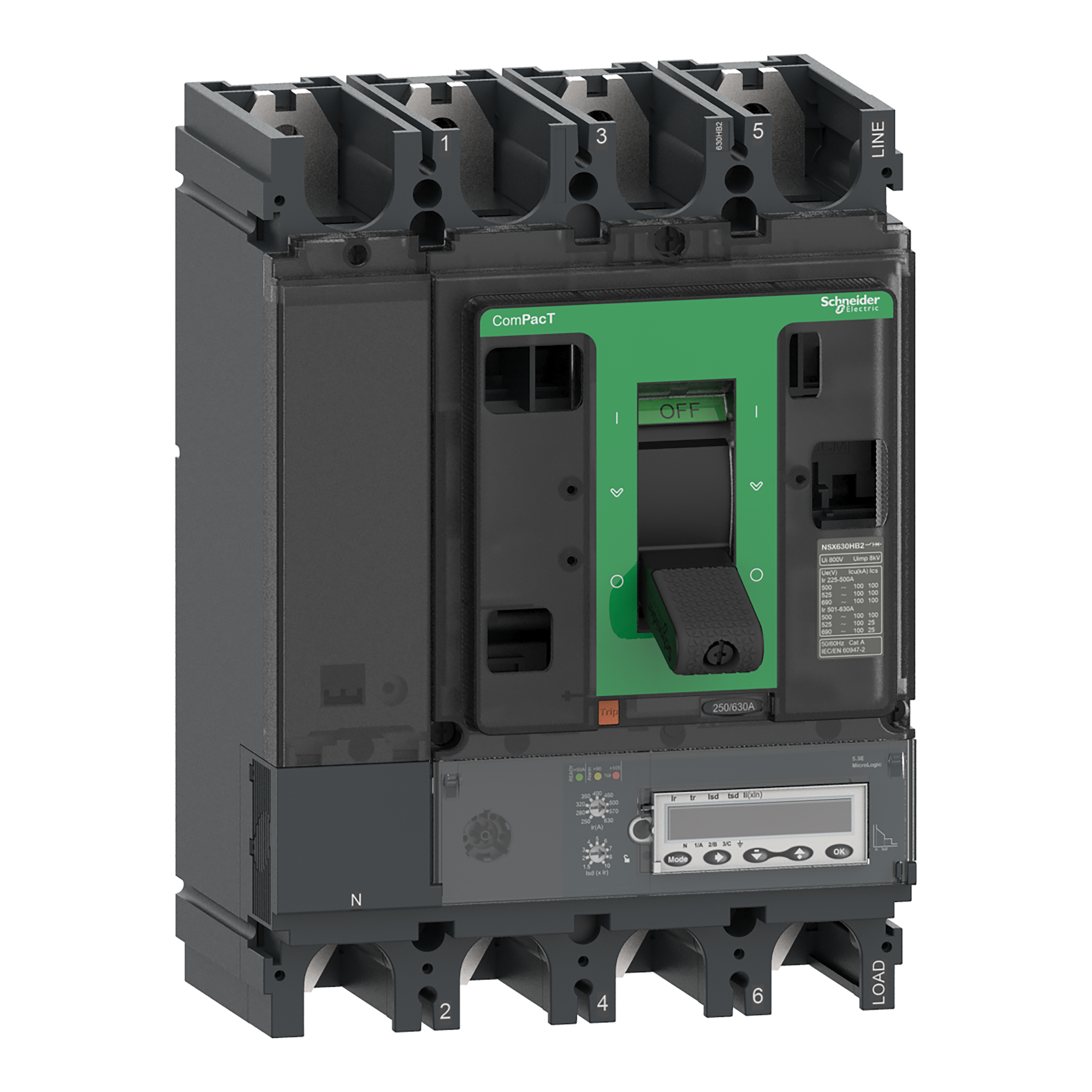

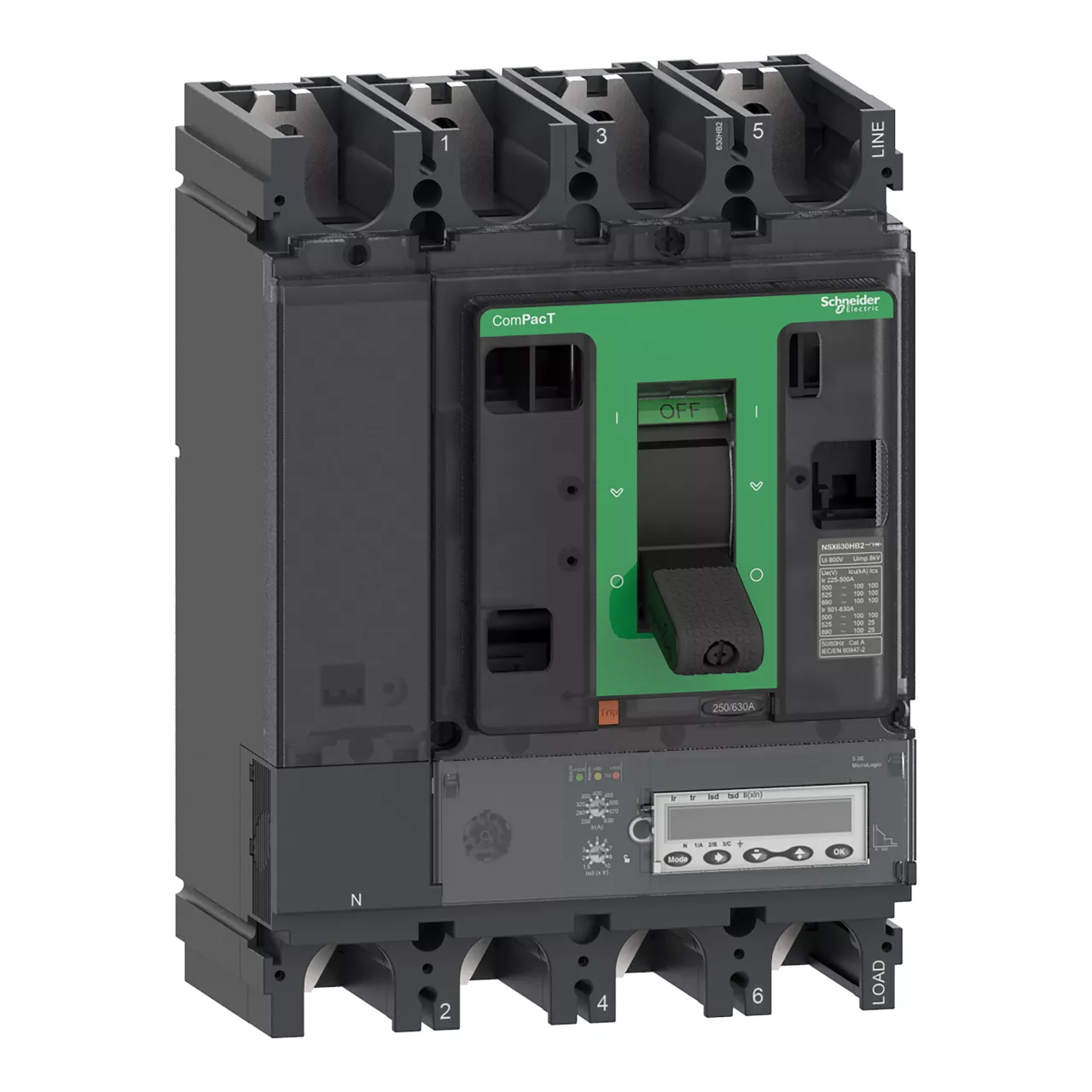

Wyłącznik, ComPacT NSX, 400R, Mic5.3E, 400A, 4P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C40R45E400 |
| GTIN(EAN) | 3606481988928 |
| Price unit | piece |
| Catalog price | 15 216,65 zł (12 371,26 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 7,585 kg |
| ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
| Type of electrical connection of main circuit: | Screw connection |
| Number of auxiliary contacts as change-over contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Adjustment range undelayed short-circuit release: | 600 - 6000 A |
| Integrated earth fault protection: | no |
| Device construction: | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting: | no |
| With integrated under voltage release: | no |
| Degree of protection (IP): | IP40 |
| Number of poles: | 4 |
| Rated voltage: | 690 - 690 V |
| DIN rail (top hat rail) mounting optional: | yes |
| Complete device with protection unit: | yes |
| With switched-off indicator: | yes |
| Motor drive integrated: | no |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: | 200 kA |
| Overload release current setting: | 160 - 400 A |
| Type of control element: | Toggle |
| Rated permanent current Iu: | 400 A |
| Adjustment range short-term delayed short-circuit release: | 600 - 4000 A |
| Motor drive optional: | yes |
| Position of connection for main current circuit: | Front side |
