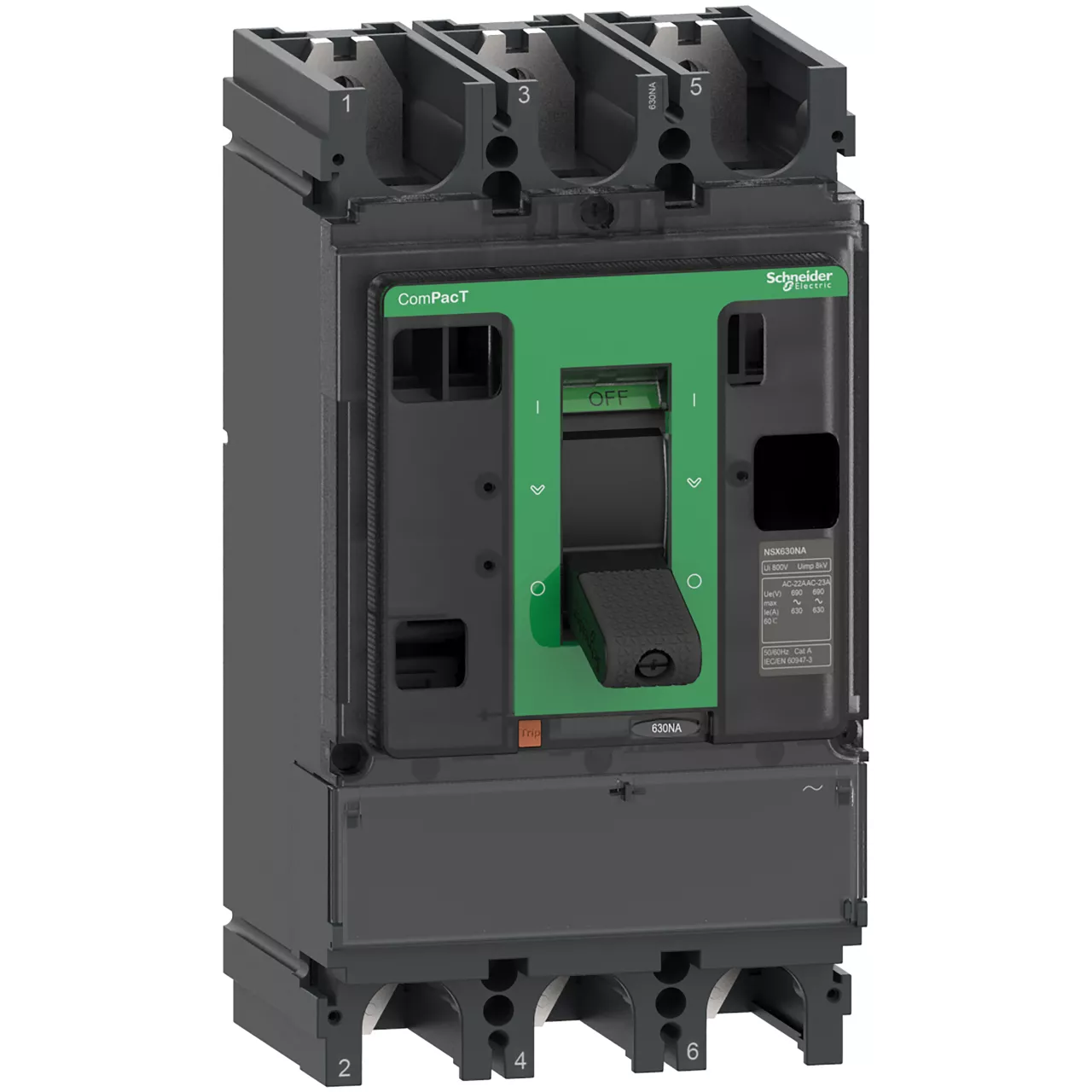

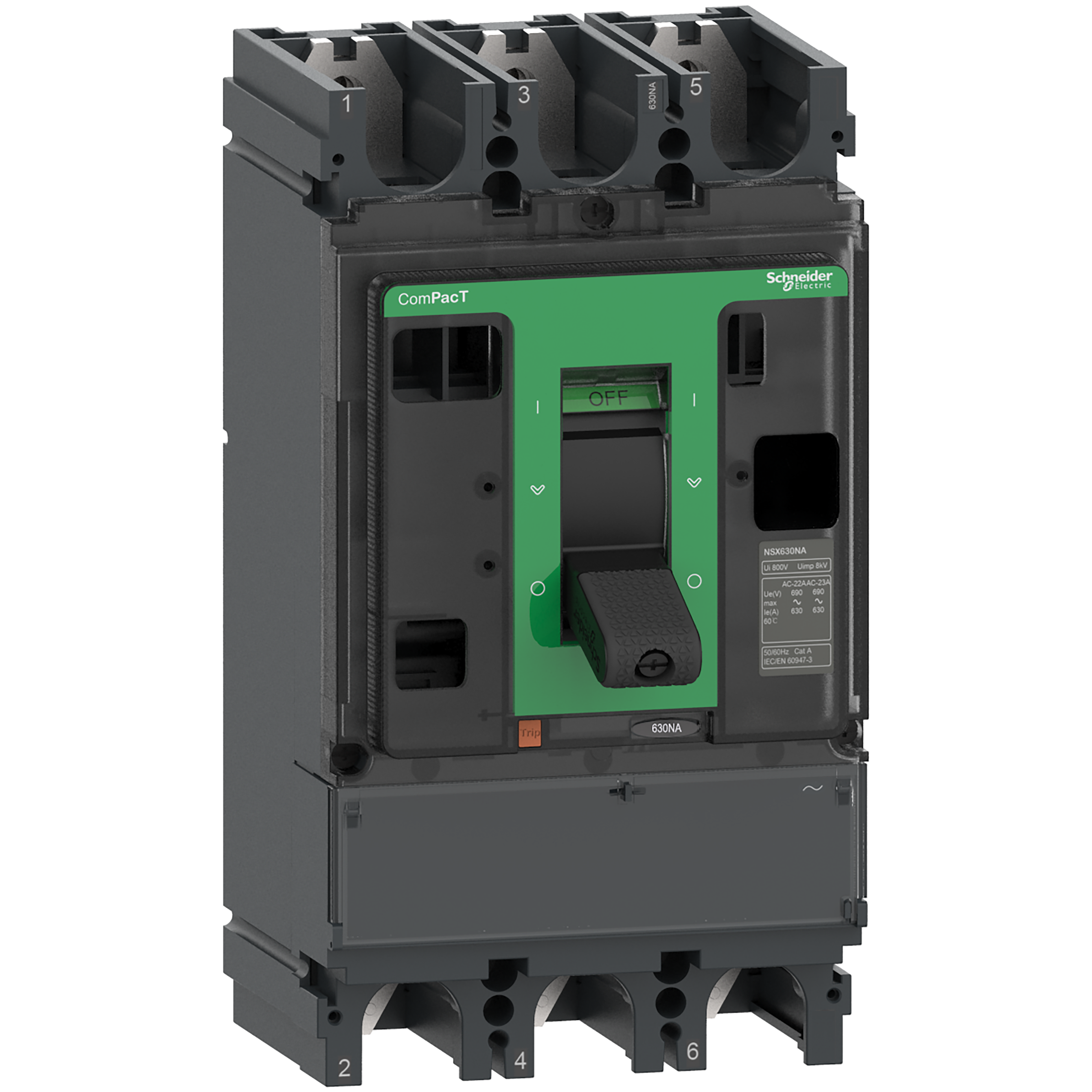

Rozłącznik, ComPacT NSX, 400A, 3P
| Information | Value |
|---|---|
| Supplier | Schneider Electric Polska Sp. z o.o. |
| Symbol | C403400S |
| GTIN(EAN) | 3606482002876 |
| Price unit | piece |
| Catalog price | 3 904,29 zł (3 174,22 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
C163400S to 3-biegunowy rozłącznik mocy z serii ComPacT NSX firmy Schneider Electric o prądzie znamionowym 160A. Rozłączniki ComPacT NSX to nowe technologie zapewniające ciekawe rozwiązania, usprawniające pracę instalatora. ComPacT NSX zapewnia przerwę izolacyjną w myśl normy IEC60947-2. Każdy rozłącznik może być uzbrojony w dodatkowe napędy ręczne lub silnikowe oraz akcesoria sygnalizacyjne. •Prąd znamionowy: 400A •Liczba biegunów: 3P Etykieta Green Premium jest zobowiązaniem firmy Schneider Electric do dostarczania produktów o najwyższej w swojej klasie ekologiczności. Green Premium obiecuje zgodność z najnowszymi przepisami, przejrzystość w zakresie wpływu na środowisko, a także produkty o obiegu zamkniętym i niskiej emisji CO2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,408 kg |
| ETIM class: | Switch disconnector (low voltage) |
| Rated short-time withstand current lcw: | 5 kA |
| Version as emergency stop installation: | no |
| Number of auxiliary contacts as change-over contact: | 0 |
| Interlockable: | yes |
| Voltage release optional: | yes |
| Number of poles: | 3 |
| Degree of protection (IP), front side: | IP30 |
| Suitable for front mounting centre: | no |
| Suitable for front mounting 4-hole: | yes |
| Number of switches: | 1 |
| Rated permanent current at AC-23, 400 V: | 400 A |
| Rated permanent current Iu: | 400 A |
| Colour control element: | Black |
| Suitable for floor mounting: | yes |
| Type of electrical connection of main circuit: | Screw connection |
| Version as safety switch: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Version as maintenance-/service switch: | yes |
| Device construction: | Built-in device fixed built-in technique |
| Max. rated operation voltage Ue AC: | 690 V |
| Version as main switch: | yes |
| Rated operating voltage: | 690 - 690 V |
| Version as reversing switch: | no |
| Motor drive integrated: | no |
| Type of control element: | Toggle |
| Suitable for distribution board installation: | yes |
| Motor drive optional: | yes |
| Suitable for intermediate mounting: | no |
