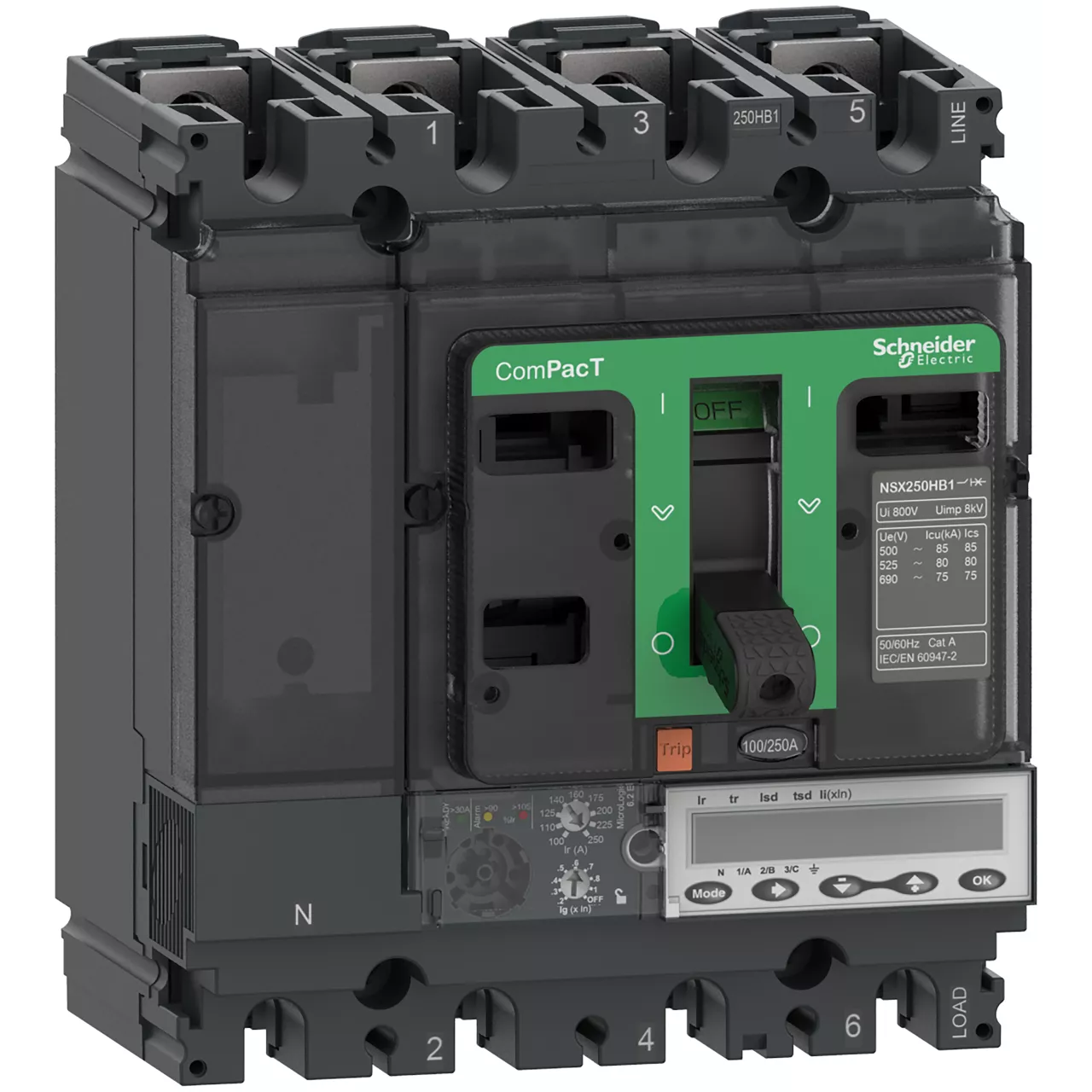

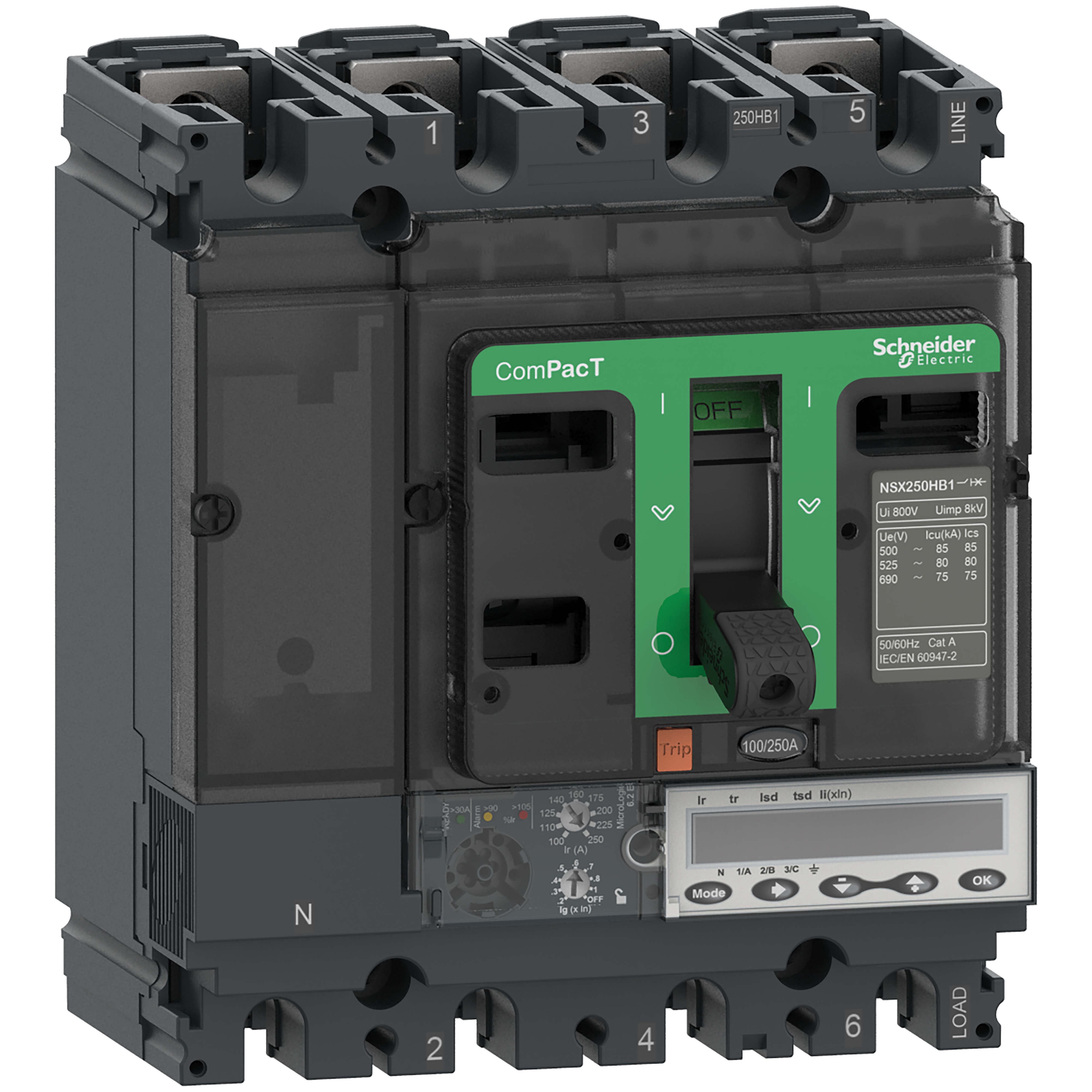

Wyłącznik, ComPacT NSX, NSX250HB1, Mic6.2E, 100A 4P, 75kA
Information | Value |
---|---|
Supplier | Schneider Electric Polska Sp. z o.o. |
Symbol | C25V46E100 |
GTIN(EAN) | 3606482001930 |
Price unit | piece |
Catalog price | 12 562,84 zł (10 213,69 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 2,65 kg |
ETIM class: | Power circuit-breaker for trafo/generator/installation protection |
Type of electrical connection of main circuit: | Screw connection |
Number of auxiliary contacts as change-over contact: | 0 |
Number of auxiliary contacts as normally open contact: | 0 |
Number of auxiliary contacts as normally closed contact: | 0 |
Adjustment range undelayed short-circuit release: | 150 - 1500 A |
Integrated earth fault protection: | yes |
Device construction: | Built-in device fixed built-in technique |
Suitable for DIN rail (top hat rail) mounting: | no |
With integrated under voltage release: | no |
Degree of protection (IP): | IP40 |
Number of poles: | 4 |
Rated voltage: | 690 - 690 V |
DIN rail (top hat rail) mounting optional: | yes |
Complete device with protection unit: | yes |
With switched-off indicator: | yes |
Motor drive integrated: | no |
Overload release current setting: | 40 - 100 A |
Type of control element: | Toggle |
Rated permanent current Iu: | 100 A |
Adjustment range short-term delayed short-circuit release: | 150 - 1000 A |
Motor drive optional: | yes |
Position of connection for main current circuit: | Front side |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-05-01 00:03:20 |
Files to download: | |
External links: |
